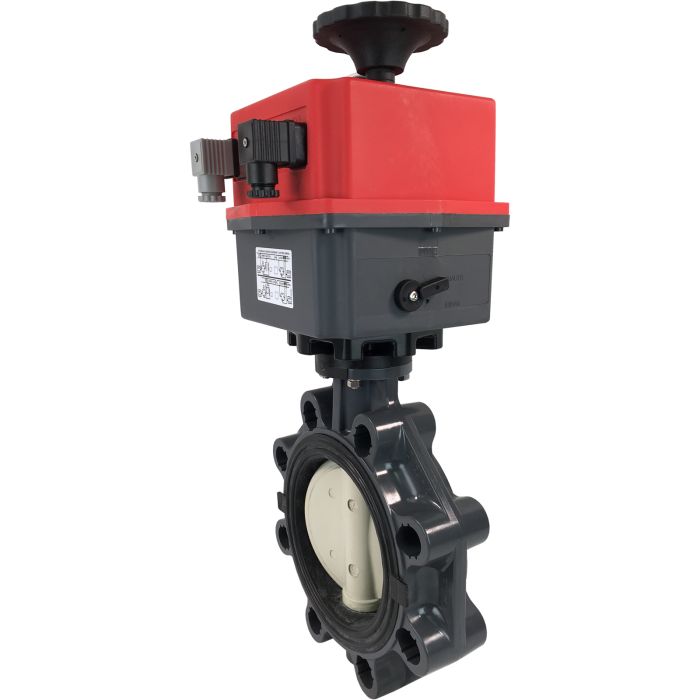

6" Electric Actuated PVC Butterfly Valve 24-240V
SKU
540508
Series
5405
List Price: $2,129.01
Price:
$1,703.21
- Buy 3 for $1,532.89 each and save 10%
Valworx 540508 electric actuated PVC butterfly valves are typically used for on-off control of water and liquid media compatible with the materials of construction including potable water and lead-free applications. Actuator uses power to open and power to close, stays in the last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a flat gear system rotates the valve disc. The motor is automatically stopped by an internal cam striking a limit switch. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position. Typical applications include industrial/process piping, pulp and paper, food processing, water treatment and irrigation.
PVC butterfly valves should never be used for compressed gas applications.
Butterfly Valve Standard FeaturesIndustrial grade PVC butterfly valve Pressure rated 150 PSI at 73°F Polypropylene (PP) disc 316 stainless steel shaft Series 5402 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for potable drinking water
Electric Actuator Standard Features Anti-corrosive polyamide IP67 weatherproof enclosure External LED diagnostic light Multi-voltage with auto-voltage sensing Electronic over-torque protection Anti-condensation heater Manual override Highly visual valve position indicator Electrical connections by DIN plug connectors (included) Auxiliary limit switches to confirm open/closed valve position CE marked
Options (see Accessories tab)
PVC butterfly valves should never be used for compressed gas applications.
Butterfly Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Actuator Temperature Range | -4 to 158 °F (-20 to 70 °C) |
|---|---|
| Anti-Condensation Heater | 4 watt thermostatically controlled |
| Current Rating | 0.77A 110VAC, 0.47A 240VAC, 3.30A 24VAC 2.70A 24VDC (full load amps) |
| Cv | 1309 |
| Cycle Time | 58 seconds per 90° rotation (+/- 10% no load) |
| Duty Cycle | 0.75 |
| Electrical Connections | DIN plugs with cable entry (included), optional 1/2" conduit plugs |
| Enclosure | Anti-corrosive polyamide, SS fasteners |
| Enclosure Rating | IP67 weatherproof, UV protection |
| Manual Override | Hand knob |
| Motor Protection | Electronic over-torque with LED status light |
| Pipe Size | 6 inch |
| Pressure Rating | 150 PSI (16 Bar) see P/T chart Not suitable for air or gas |
| Primary Liner | EPDM |
| Shaft | 316 Stainless Steel |
| Type | 2-way On-Off |
| Valve Body | PVC |
| Valve Position Confirmation | 2 x SPDT auxiliary limit switches rated 3A 125/250VAC,30VDC resistive load |
| Valve Temperature Range | 40-140 °F (4 to 60 °C) |
| Voltage | 24 to 240 Volts AC or DC (1ph, 50/60Hz) auto voltage sensing |
Digital Positioner System
-
5616C DPS-Digital Positioner System Kit 4-20mA - InstalledStock #: 561108CUsually Ships: Same DayPrice: $655.59 -
5616C DPS-Digital Positioner System Kit 0-10v - InstalledStock #: 561109CUsually Ships: Same DayPrice: $655.59
Failsafe Battery Kit
-
5616C BSR-NC Failsafe Battery Kit - InstalledStock #: 561106CUsually Ships: Same DayPrice: $655.60 -
5616C BSR-NO Failsafe Battery Kit - InstalledStock #: 561107CUsually Ships: Same DayPrice: $655.59
Connectors & Cables
-
-
Electric Actuator 3097 in.lbs (300Nm), 24-240VStock #: 561604CUsually Ships: 2- 3 WeeksPrice: $1,482.12
