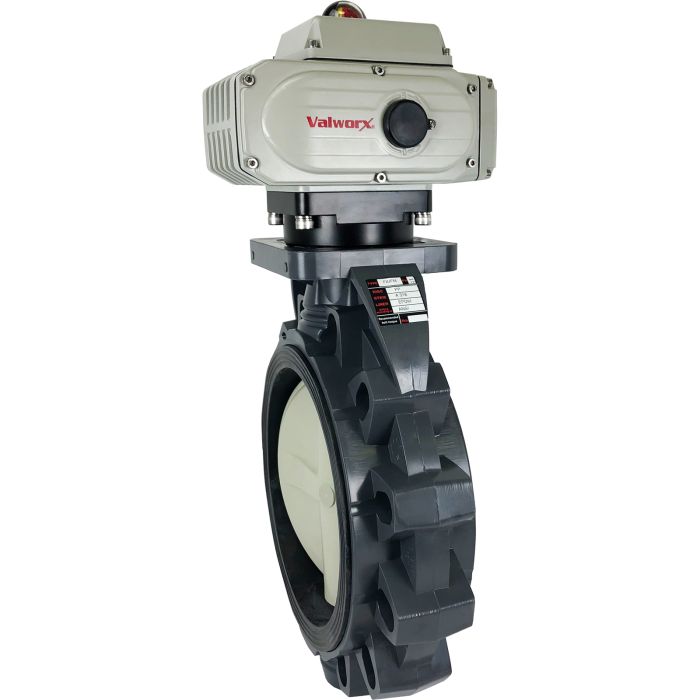

10" Electric Actuated PVC Butterfly Valve 110 VAC
SKU
540612
Series
5406
List Price: $3,307.09
Price:
$2,645.67
- Buy 3 for $2,381.10 each and save 10%
Valworx 540612 electric actuated PVC butterfly valves are typically used for on-off control of water and liquid media compatible with the materials of construction. Ideal where NSF certified construction is required for potable drinking water as well as other industrial applications. These actuated valves use power-to-open and power-to-close, stay in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and a self-locking all-metal gear drive rotates the disc. The motor is stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.
PVC butterfly valves should never be used for compressed gas applications.
Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation. Two auxiliary limit switches are included to confirm valve open and closed positions. Typical applications include industrial/process piping, pulp and paper, food processing, water treatment and irrigation.
Butterfly Valve Standard FeaturesIndustrial grade PVC butterfly valve Pressure rated 150psi at 73°F Polypropylene (PP) disc ANSI 150 wafer-style flange connection 316 stainless steel shaft EPDM primary liner Series 5402 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for potable drinking water
Electric Actuator Standard Features Quarter turn operation with mechanical stops Rugged Type 4X weatherproof aluminum alloy enclosure Visual valve position indicator Manual override Heavy duty motor with overload protection Thermostatically controlled anti-condensation heater Two auxiliary limit switches to confirm valve positions Self-locking all metal gear drive, no additional brake required CSA Listed per UL429 and CSA C22.2, CE mark
PVC butterfly valves should never be used for compressed gas applications.
Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation. Two auxiliary limit switches are included to confirm valve open and closed positions. Typical applications include industrial/process piping, pulp and paper, food processing, water treatment and irrigation.
Butterfly Valve Standard Features
Electric Actuator Standard Features
| Actuator Temperature Range | -22 to 140 °F (-30 to 60 °C) |
|---|---|
| Anti-Condensation Heater | 4 watts thermostatically controlled |
| Current Rating | 1.27A (full load amps) |
| Cv | 3724 |
| Cycle Time | 45 seconds per 90° rotation (+/- 10% no load) |
| Disc | PP |
| Duty Cycle | 0.7 |
| Electrical Connections | Terminal strip, 1/2" NPT conduit (optional) / cable connector (included) |
| Enclosure | Aluminum alloy, polyester coating, SS fasteners |
| Enclosure Rating | Type 4X (IP67) weatherproof |
| Manual Override | 5mm hex drive with protective cover |
| Motor Protection | Thermal overload |
| Pipe Size | 10 inch |
| Pressure Rating | 150 PSI (10 Bar) see P/T chart (not suitable for air or gas) |
| Primary Liner | EPDM |
| Shaft | 316 Stainless Steel |
| Type | 2-way On-Off |
| Valve Body | PVC |
| Valve Position Confirmation | 2 x SPDT auxiliary limit switches rated 3A 125/250VAC,30VDC resistive load |
| Valve Temperature Range | 40-140 °F (4 to 60 °C) |
| Voltage | 110 VAC 50/60Hz |
