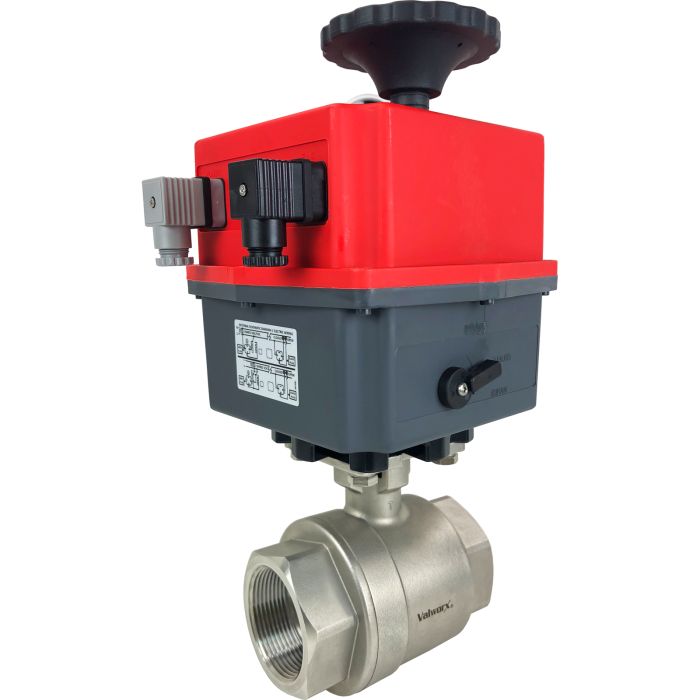

2 1/2" Electric Actuated Stainless Ball Valve 24-240V
SKU
560220F
Series
5602
List Price: $2,066.83
Price:
$1,653.46
- Buy 3 for $1,488.12 each and save 10%
Valworx 560220F electric actuated 2-piece stainless steel ball valves for on-off control of water, air, oil, and other media compatible with the materials of construction. Standard unit is power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a flat gear system rotates the ball valve. The motor is stopped by internal cams striking micro switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position. High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard Features1000 PSI working pressure (see P/T chart) Direct mounting valve per ISO5211 Full port for unrestricted flow 316 stainless steel body, ball and stem Blow out proof stem RTFE ball seats extend cycle life Triple PTFE/Viton stem seal design, live loaded
Electric Actuator Standard FeaturesHighly visible LED light gives continuous actuator status indication Multi-voltage capable with auto-voltage sensing Electronic torque limiter - protects against valve jams Anti-condensation heater Manual override with dome style visual valve position indicator All electrical connections via external DIN plugs (included) - no need to remove cover Two dry contact limit switches used to confirm open/closed valve position Rugged IP67 weatherproof housing, CE marked
Options (see Accessories tab)
Ball Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Actuator Temperature Range | -4 to 158 °F (-20 to 70 °C) |
|---|---|
| Anti-Condensation Heater | 4 watts thermostatically controlled |
| Ball and Stem | 316 Stainless Steel |
| Ball Seats | RTFE (reinforced Teflon) |
| Current Rating | 0.8A @ 110VAC, 0.5A @ 240VAC, 3.3A @ 24VAC 2.7A @ 24VDC (full load amps) |
| Cycle Time | 58 seconds per 90° rotation (+/- 10% no load) |
| Duty Cycle | 75% |
| Electrical Connections | DIN plugs with cable entry (included), optional 1/2" conduit plugs |
| Enclosure | Anti-corrosive polyamide, SS fasteners |
| Enclosure Rating | IP67 weatherproof, UV protection |
| Manual Override | Hand knob |
| Max Fluid Velocity | 10 feet per second |
| Motor Protection | Electronic over-torque with LED status light |
| Pipe Size | 2-1/2" NPT female |
| Port Size | Full Port, Orifice 2.56 inches, Cv 289 |
| Pressure Rating | 800 PSI CWP non-shock (see P/T chart), Vacuum service to 29"Hg, 25 PSI steam with kit |
| Stem Seals | PTFE/ Viton (live loaded and adjustable) |
| Type | Electric Actuated 2 Way Ball Valve- Multivoltage |
| Valve Body | 316 Stainless Steel |
| Valve Position Confirmation | 3 x SPST auxiliary limit switches rated 3A@125/250VAC,30VDC resistive load |
| Valve Temperature Range | -4 to 392 °F (-20 to 200 °C) |
| Voltage | 24 to 240 Volts AC or DC (1ph, 50/60Hz) auto voltage sensing |
Digital Positioner System
-
5616C DPS-Digital Positioner System Kit 4-20mA - InstalledStock #: 561108CUsually Ships: Same DayPrice: $655.59 -
5616C DPS-Digital Positioner System Kit 0-10v - InstalledStock #: 561109CUsually Ships: Same DayPrice: $655.59
Failsafe Battery Kit
-
5616C BSR-NC Failsafe Battery Kit - InstalledStock #: 561106CUsually Ships: Same DayPrice: $655.60 -
5616C BSR-NO Failsafe Battery Kit - InstalledStock #: 561107CUsually Ships: Same DayPrice: $655.59
Connectors & Cables
High Temperature Mounting Kit
Spring Check Valve
-
-
Electric Actuator 3097 in.lbs (300Nm), 24-240VStock #: 561604CUsually Ships: 2- 3 WeeksPrice: $1,482.12
