Electric Actuator 177 in.lbs (20Nm), 24-240V
SKU
561020E
Series
5610
List Price: $519.57
Price:
$415.66
- Buy 3 for $374.09 each and save 10%

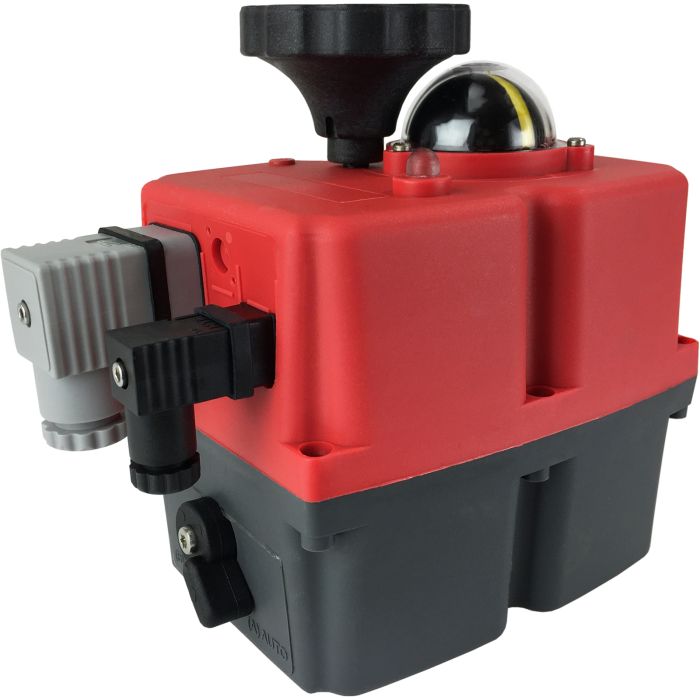

Electric Actuator Standard FeaturesBrushless motor Quarter turn operation External LED diagnostic light Multi-voltage capable with auto-voltage sensing Electronic torque limiter - protects against valve jams Anti-condensation heater Manual override Highly visual dome style position indicator Electrical connections by DIN plug connectors Two auxiliary limit switches to confirm open and closed position Standard ISO5211 multi-flange valve mounting Anti-corrosion resistant IP67 weatherproof enclosure
Valworx 561020E electric actuator uses power-to-open and power-to-close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a flat gear drive system rotates the output drive 90°. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the output drive position.
These electric actuators are typically used to automate quarter turn ball valves, butterfly valves or dampers. Actuator is easy to install using standard ISO5211 multi-flange mounting and double square drive. Electrical wiring via DIN style plug connectors, no need to remove the actuator cover. Two auxiliary dry contact limit switches are provided to confirm open and closed valve position. Thermostatically controlled anti-condensation heater will help protect actuator against damage from condensation. Electronic over torque protection helps prevent damage due to valve jams.
Options for 5610 Actuator (see Accessories tab)
Valworx 561020E electric actuator uses power-to-open and power-to-close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a flat gear drive system rotates the output drive 90°. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the output drive position.
These electric actuators are typically used to automate quarter turn ball valves, butterfly valves or dampers. Actuator is easy to install using standard ISO5211 multi-flange mounting and double square drive. Electrical wiring via DIN style plug connectors, no need to remove the actuator cover. Two auxiliary dry contact limit switches are provided to confirm open and closed valve position. Thermostatically controlled anti-condensation heater will help protect actuator against damage from condensation. Electronic over torque protection helps prevent damage due to valve jams.
Options for 5610 Actuator (see Accessories tab)
| Anti-Condensation Heater | 4 watts thermostatically controlled |
|---|---|
| Approvals | CE Mark |
| Current Rating | 0.30A 110VAC, 0.16A 240VAC, 1.28A 24VAC 0.97A 24VDC (full load amps) |
| Cycle Time | 9 seconds per 90° rotation (no load, +/- 10%) |
| Duty Cycle | 0.75 |
| Electrical Connections | DIN plugs with cable entry (optional 1/2" conduit plugs or pre-wired cable) |
| Enclosure | Anti-corrosion polyamide, UV protection, SS fasteners |
| Enclosure Protection | IP67 Weatherproof |
| ISO 5211 Mount | F03, F04, F05 (multi-flange) |
| Manual Override | Polyamide knob |
| Max Break Torque | 221 in lbs (25Nm) |
| Max Run Torque | 177 in lbs (20Nm) |
| Motor Protection | Electronic over-torque |
| Motor Type | Brushless |
| Output Drive | 11mm double square (female) |
| Position Confirmation | 2 x SPST limit switches 3A 125/250VAC, 30VDC resistive load |
| Position Indicator | Highly visual dome style |
| Temperature Range | -4 to +158 °F (-20 to +70 °C) |
| Type | On-Off with DPS Positioner and BSR Failsafe options available |
| Voltage | 24 to 240 Volt AC/DC (1 ph, auto-voltage sensing) |
| Working Rotation | 90° (quarter turn) |
Digital Positioner System
-
5610E DPS-Digital Positioner System Kit 4-20mA - InstalledStock #: 561101EUsually Ships: Same DayPrice: $400.54 -
5610E DPS-Digital Positioner System Kit 0-10v - InstalledStock #: 561102EUsually Ships: Same DayPrice: $400.54
Failsafe Battery Kit
-
5610E BSR-NC Failsafe Battery Kit - InstalledStock #: 561104EUsually Ships: Same DayPrice: $422.76 -
5610E BSR-NO Failsafe Battery Kit - InstalledStock #: 561105EUsually Ships: Same DayPrice: $422.76
Connectors & Cables
-
-
Sub-Micro DIN Connector 1/2" Conduit ConnectionStock #: 588003Usually Ships: Same DayPrice: $14.64 -
-
Sub-Micro DIN Plug Connector with 16 foot CableStock #: 588007AUsually Ships: Same DayPrice: $28.32
