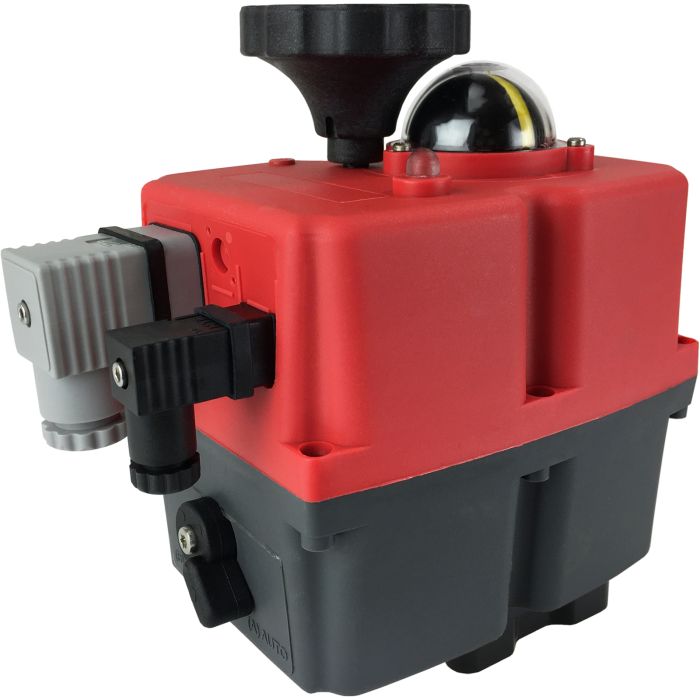

Electric Actuator 486 in.lbs (55Nm), 24-240V

Electric Actuator Standard Features

Brushless motor

Quarter turn operation

External LED diagnostic light

Multi-voltage capable with auto-voltage sensing

Electronic torque limiter - protects against valve jams

Anti-condensation heater

Manual override

Highly visual dome style position indicator

Electrical connections by DIN plug connectors

Two auxiliary limit switches to confirm open and closed position

Standard ISO5211 multi-flange valve mounting

Anti-corrosion resistant IP67 weatherproof enclosure

Valworx 561055E electric actuator uses power-to-open and power-to-close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a flat gear drive system rotates the output drive 90°. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the output drive position.

These electric actuators are typically used to automate quarter turn ball valves, butterfly valves or dampers. Actuator is easy to install using standard ISO5211 multi-flange mounting and double square drive. Electrical wiring via DIN style plug connectors, no need to remove the actuator cover. Two auxiliary dry contact limit switches are provided to confirm open and closed valve position. Thermostatically controlled anti-condensation heater will help protect actuator against damage from condensation. Electronic over torque protection helps prevent damage due to valve jams.

Options for 5610 Actuator (see Accessories tab)
