Electric Actuator 752 in.lbs (85Nm), 12V AC/DC
SKU
561585
Series
5615
List Price: $1,136.43
Price:
$909.14
- Buy 3 for $818.23 each and save 10%

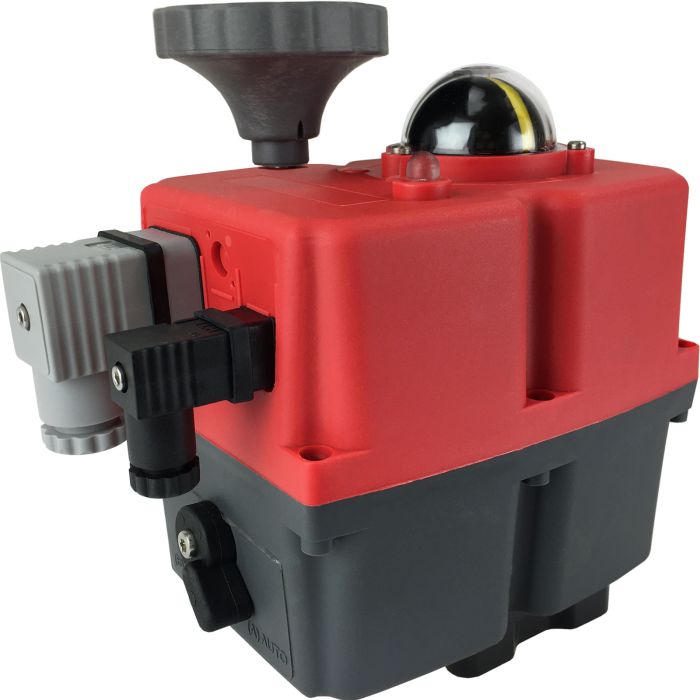

Electric Actuator Standard FeaturesBrushless motor Quarter turn operation External LED diagnostic light Electronic torque limiter - protects against valve jams Anti-condensation heater Manual override Highly visual dome style position indicator Electrical connections by DIN plug connectors Two auxiliary limit switches to confirm open and closed position Standard ISO5211 multi-flange valve mounting Anti-corrosion resistant IP67 weatherproof enclosure
Valworx 561585 electric actuator uses power-to-open and power-to-close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a flat gear drive system rotates the output drive 90°. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the output drive position.
These electric actuators are typically used to automate quarter turn ball valves, butterfly valves or dampers. Actuator is easy to install using standard ISO5211 multi-flange mounting and double square drive. Electrical wiring via DIN style plug connectors, no need to remove the actuator cover. Two auxiliary dry contact limit switches are provided to confirm open and closed valve position. Thermostatically controlled anti-condensation heater will help protect actuator against damage from condensation. Electronic over torque protection helps prevent damage due to valve jams.
Options for 5615 Actuator (see Accessories tab)
Valworx 561585 electric actuator uses power-to-open and power-to-close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a flat gear drive system rotates the output drive 90°. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the output drive position.
These electric actuators are typically used to automate quarter turn ball valves, butterfly valves or dampers. Actuator is easy to install using standard ISO5211 multi-flange mounting and double square drive. Electrical wiring via DIN style plug connectors, no need to remove the actuator cover. Two auxiliary dry contact limit switches are provided to confirm open and closed valve position. Thermostatically controlled anti-condensation heater will help protect actuator against damage from condensation. Electronic over torque protection helps prevent damage due to valve jams.
Options for 5615 Actuator (see Accessories tab)
| Anti-Condensation Heater | 4 watts thermostatically controlled |
|---|---|
| Approvals | CE Mark |
| Current Rating | 2.65A @ 12VAC, 2.28A @ 12VDC (full load amps) |
| Cycle Time | 29 seconds per 90° rotation (no load, +/- 10%) |
| Duty Cycle | 75% |
| Electrical Connections | DIN plugs with cable entry (optional 1/2" conduit plugs or prewired cable) |
| Enclosure | Anti-corrosion polyamide, UV protection, SS fasteners |
| Enclosure Protection | IP67 Weatherproof |
| ISO 5211 Mount | F05, F07 (multi-flange) |
| Manual Override | Polyamide knob |
| Max Break Torque | 796 in lbs (90Nm) |
| Max Run Torque | 752 in lbs (85Nm) |
| Motor Protection | Electronic over-torque |
| Motor Type | Brushless |
| Output Drive | 17mm double square (female) |
| Position Confirmation | 2 x SPST limit switches 3A @ 125/250VAC, 30VDC resistive load |
| Position Indicator | Highly visual dome style |
| Temperature Range | -4 to +158 °F (-20 to +70 °C) |
| Type | On-Off with DPS Positioner and BSR Failsafe options available |
| Voltage | 12 Volt AC/DC (1 ph) |
| Working Rotation | 90° (quarter turn) |
