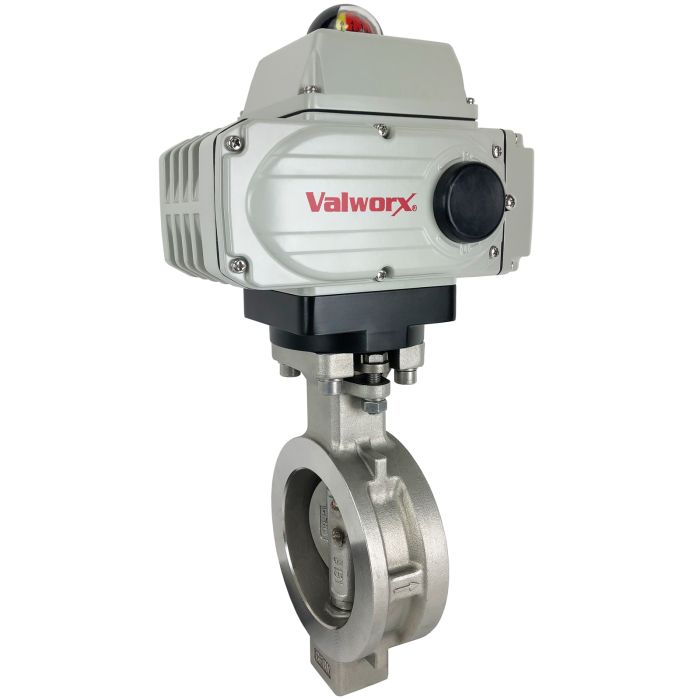

3" High Performance Butterfly Valve, Wafer, RPTFE, 110 VAC, EPS Positioner

Description

Valworx 569203A high performance stainless steel butterfly valve for control of air, oil and other media compatible with the materials of construction. Wafer style valve sandwich mounts between customer supplied ANSI /ASME Class 150 and other international standard flanges and gaskets. The EPS- Electronic Positioning System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the control input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. The valve will remain in the last known position with loss of electric power.

The positioning module is self-calibrating and fully potted to help protect the electronics against vibration and moisture. Valve position can be monitored with onboard analog output signal.

The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Actuator has a rugged unique integral motor/housing design which provides higher torque in a very small package.

Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation.

Modbus control is available as a factory-installed option. Click on the Accessories tab for details.

High Performance Butterfly Valve Standard Features

316 stainless steel (CF8M) body

Double offset design greatly reduces seal wear.

17-4PH stainless steel, single piece shaft

RPTFE valve seats and stem seals

Heavy duty, single piece cast and machined disc with integral mounting sleeve

Bi-direction seal design ensures increased sealing force in either flow direction

Integral ISO 5211 mounting pad eliminates additional mounting brackets

Electric Actuator Standard Features

EPS- Electronic Positioning System with 4-20mA input

Quarter turn operation with mechanical limits

Rugged Type 4X weatherproof aluminum alloy housing

Visual valve position indicator

Manual override

Heavy duty motor with overload protection

Thermostatically controlled anti-condensation heater

Analog output signal to confirm valve position

Self-locking all metal gear drive, no additional brake required

CSA Listed per UL429 and CSA C22.2, CE mark

Specifications

More Information
Actuator Temperature Range	-13 to +131 °F (-25 to +55 °C)
Anti-Condensation Heater	4 watts thermostatically controlled
Current Rating	0.64A (full load amps)
Cycle Time	30 seconds per 90° rotation (no load)
Disc	Single piece, machined 316 stainless steel
Disc Seat/Liner	RPTFE
Disc Size	2.87 inches
Duty Cycle	0.7
Electrical Connections	Terminal strip, 1/2"NPT conduit (optional) / cable connector (included)
Enclosure	Aluminum alloy, polyester painted, SS fasteners
Enclosure Rating	Type 4X (IP67) weatherproof
Flow Factor	Cv 180 (Cv = number of GPM of 60 °F water at 1 psi pressure drop)
Manual Override	5mm hex drive with protective cover
Motor Protection	Thermal overload
Pipe Size	3 inch (DN80)
Pressure Rating	285 PSI (19.6 Bar), Full vacuum
Stem Packing	RPTFE
Suitable Flanges	ANSI /ASME B16.5 Class150, MSSSP44 Class 150, API605 Class 150, JIS B2212 10K, JIS B2212 16K
Type	Electric Actuated High Performance Butterfly Valve- Positioner
Valve Body	316 Stainless Steel
Valve Position Confirmation	4-20mA output monitoring signal (same type as input signal)
Valve Temperature Range	-40 to 450 °F (-40 to 230 °C)
Voltage	110 VAC 50/60 Hz
