6" High Performance Butterfly Valve, Lug, RPTFE, 110 VAC, EPS Positioner
SKU
547206A
Series
5472
List Price: $4,651.48
Price:
$3,721.18
- Buy 3 for $3,349.07 each and save 10%

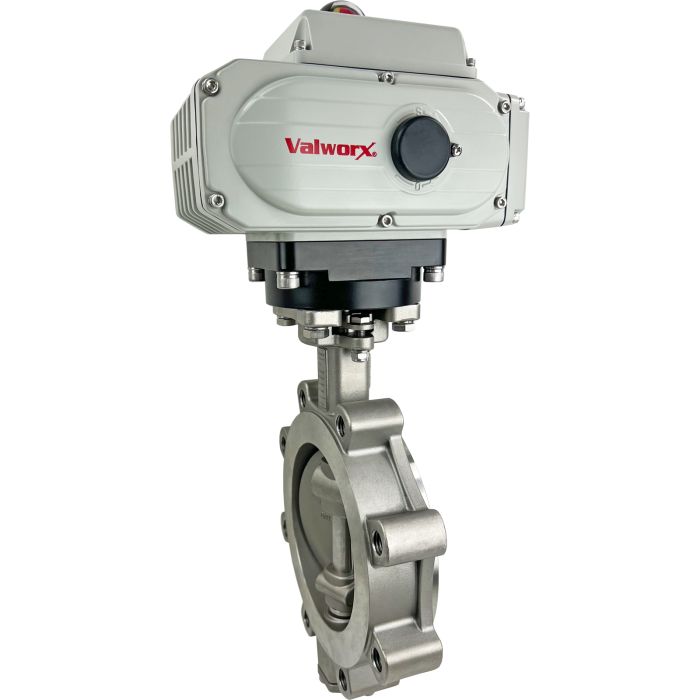

Valworx 547206A high performance stainless steel butterfly valve for control of air, oil and other media compatible with the materials of construction. Lug style valve sandwich mounts between customer supplied ANSI /ASME Class 150 and other international standard flanges and gaskets. The EPS- Electronic Positioning System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the control input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. The valve will remain in the last known position with loss of electric power.
The positioning module is self-calibrating and fully potted to help protect the electronics against vibration and moisture. Valve position can be monitored with onboard analog output signal.
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Actuator has a rugged unique integral motor/housing design which provides higher torque in a very small package.
Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation.
Modbus control is available as a factory-installed option. Click on the Accessories tab for details.
High Performance Butterfly Valve Standard FeaturesHigh quality, passivated 316 stainless steel (CF8M) body for excellent corrosion resistance Double offset design greatly reduces seal wear 17-4PH stainless steel, single piece shaft RPTFE valve seats and stem seals Heavy duty, single piece cast and machined disc with integral mounting sleeve Bi-directional seal design ensures increased sealing force in either flow direction Integral ISO 5211 mounting pad eliminates additional mounting brackets
Electric Actuator Standard FeaturesEPS- Electronic Positioning System with 4-20mA input Quarter turn operation with mechanical limits Rugged Type 4X weatherproof aluminum alloy housing Visual valve position indicator Manual override Heavy duty motor with overload protection Thermostatically controlled anti-condensation heater Analog output signal to confirm valve position Self-locking all metal gear drive, no additional brake required CSA Listed per UL429 and CSA C22.2, CE mark
The positioning module is self-calibrating and fully potted to help protect the electronics against vibration and moisture. Valve position can be monitored with onboard analog output signal.
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Actuator has a rugged unique integral motor/housing design which provides higher torque in a very small package.
Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation.
Modbus control is available as a factory-installed option. Click on the Accessories tab for details.
High Performance Butterfly Valve Standard Features
Electric Actuator Standard Features
| Actuator Temperature Range | -13 to +131 °F (-25 to +55 °C) |
|---|---|
| Anti-Condensation Heater | 4 watts thermostatically controlled |
| Current Rating | 0.73A (full load amps) |
| Cycle Time | 30 seconds per 90° rotation (no load) |
| Disc | Single piece, machined 316 stainless steel |
| Disc Seat/Liner | RPTFE |
| Disc Size | 5.7 inches |
| Duty Cycle | 70% |
| Electrical Connections | Terminal strip, 1/2"NPT conduit (optional) / cable connector (included) |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Rating | Type 4X (IP67) weatherproof |
| Flow Factor | Cv 1350 (Cv = number of GPM of 60 °F water at 1 psi pressure drop) |
| Manual Override | 5mm hex drive with protective cover |
| Motor Protection | Thermal overload |
| Pipe Size | 6 inch (DN80) |
| Pressure Rating | 285 PSI (19 Bar), Full Vacuum |
| Stem Packing | RPTFE |
| Suitable Flanges | ANSI /ASME B16.5 Class150, MSSSP44 Class 150, API605 Class 150, JIS B2212 10K, JIS B2212 16K |
| Type | Electric Actuated High Performance Butterfly Valve- Positioner |
| Valve Body | 316 Stainless Steel |
| Valve Position Confirmation | 4-20mA output monitoring signal (same type as input signal) |
| Valve Temperature Range | -40 to 450 °F (-40 to 230 °C) |
| Voltage | 110 VAC 50/60 Hz |
