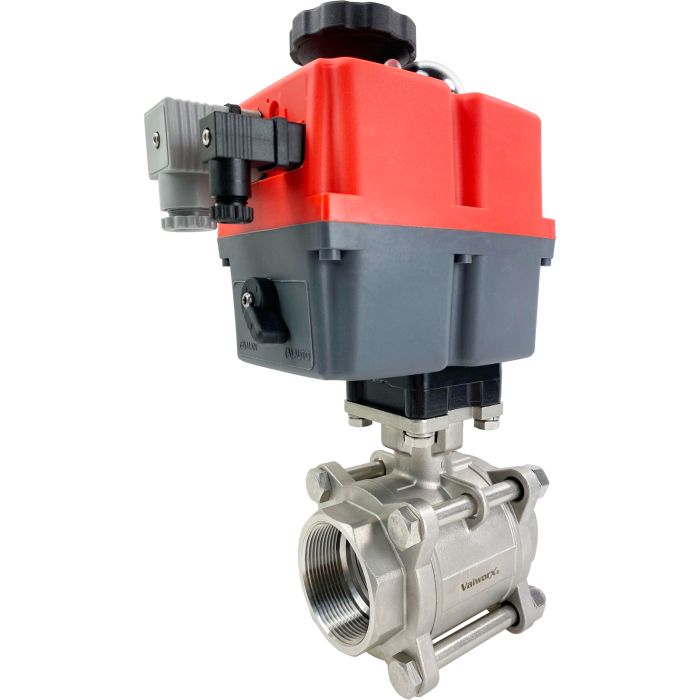

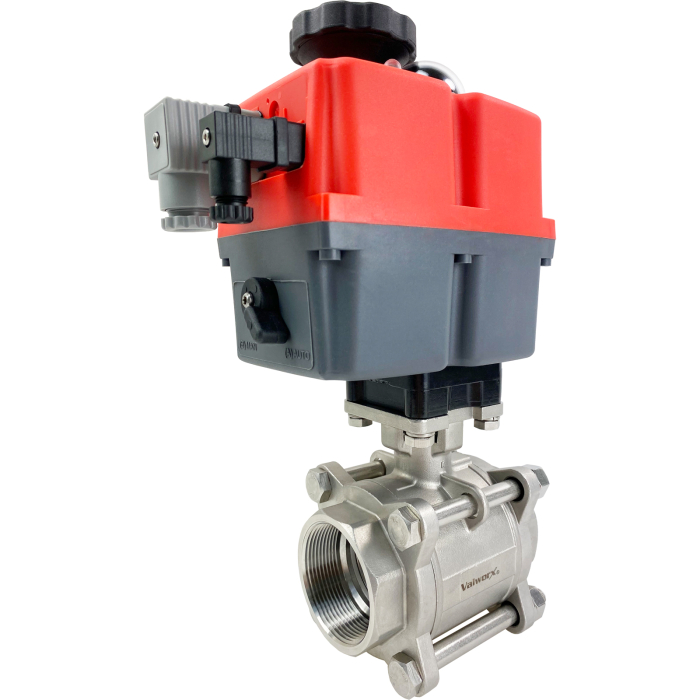

2" V-Port Stainless Steel Ball Valve 24-240V
SKU
550516
Series
5505
List Price: $1,711.65
Price:
$1,369.32
- Buy 3 for $1,232.39 each and save 10%
Select the desired V-port vertex angle (30°, 60°, or 90°) from the Accessories tab.
Valworx 550516 electric actuated stainless steel v-port valves are designed for applications requiring precise control. Factory-installed digital positioning kit for modulating control using a 4-20mA signal. Suitable for use with water, air, oil, and other media compatible with the materials of construction. Unique three piece investment cast bolted body design offers the advantage of a swing out body for easy inline maintenance. Standard unit is power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a flat gear system rotates the ball valve. The motor is stopped by internal cams striking micro switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position. High temperature valve mounting kit available for extended temperature range or wall mounting applications.
4- 20mA, normally closed (NC) control signal is standard. For 4- 20mA normally open (NO) or 0- 10V NC or NC please note in the Comments section on the Checkout page.
Ball Valve Standard Features1000 PSI working pressure (see P/T chart) Direct mounting valve per ISO5211 Full port for unrestricted flow 316 stainless steel body, ball and stem Blow out proof stem RTFE ball seats extend cycle life Triple PTFE/Viton stem seal design, live loaded
Electric Actuator Standard FeaturesHighly visible LED light gives continuous actuator status indication Multi-voltage capable with auto-voltage sensing Electronic torque limiter - protects against valve jams Anti-condensation heater Manual override with dome style visual valve position indicator All electrical connections via external DIN plugs (included) - no need to remove cover Two dry contact limit switches used to confirm open/closed valve position Rugged IP67 weatherproof housing, CE marked
Options (see Accessories tab)
Valworx 550516 electric actuated stainless steel v-port valves are designed for applications requiring precise control. Factory-installed digital positioning kit for modulating control using a 4-20mA signal. Suitable for use with water, air, oil, and other media compatible with the materials of construction. Unique three piece investment cast bolted body design offers the advantage of a swing out body for easy inline maintenance. Standard unit is power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a flat gear system rotates the ball valve. The motor is stopped by internal cams striking micro switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position. High temperature valve mounting kit available for extended temperature range or wall mounting applications.
4- 20mA, normally closed (NC) control signal is standard. For 4- 20mA normally open (NO) or 0- 10V NC or NC please note in the Comments section on the Checkout page.
Ball Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Actuator Temperature Range | -4 to 158 °F (-20 to 70 °C) |
|---|---|
| Anti-Condensation Heater | 4 watts thermostatically controlled |
| Ball and Stem | 316 Stainless Steel |
| Ball Seats | RTFE (reinforced Teflon) |
| Current Rating | 0.43A @ 110VAC, 0.21A @ 240VAC, 1.98A @ 24VAC 1.63A @ 24VDC (full load amps) |
| Cycle Time | 13 seconds per 90° rotation (+/- 10% no load) |
| Duty Cycle | 75% |
| Electrical Connections | DIN plugs with cable entry (included), optional 1/2" conduit plugs |
| Enclosure | Anti-corrosive polyamide, SS fasteners |
| Enclosure Rating | IP67 weatherproof, UV protection |
| Manual Override | Hand knob |
| Max Fluid Velocity | 10 feet per second |
| Motor Protection | Electronic over-torque with LED status light |
| Pipe Size | 2" NPT female |
| Port Size | V-Port, orifice 2.0 inches, Cv 26.2/61.0/135.0 Vertex Angle 30°/60°/90° |
| Pressure Rating | 1000 PSI (see P/T chart), 25 PSI saturated steam with kit, vacuum service to 29" Hg |
| Stem Seals | PTFE/ Viton (live loaded and adjustable) |
| Type | Electric Actuated V-Port Ball Valve- Multivoltage w/ 4-20mA Positioner |
| Valve Body | 316 Stainless Steel |
| Valve Position Confirmation | 2 x SPST auxiliary limit switches rated 3A@125/250VAC,30VDC resistive load |
| Valve Temperature Range | -4 to 392 °F (-20 to 200 °C) |
| Voltage | 24 to 240 Volts AC/DC (1 ph,50/60Hz) auto-voltage sensing |
V-Port Vertex Angle Options
Failsafe Battery Kit
-
5610E BSR-NC Failsafe Battery Kit - InstalledStock #: 561104EUsually Ships: Same DayPrice: $422.76 -
5610E BSR-NO Failsafe Battery Kit - InstalledStock #: 561105EUsually Ships: Same DayPrice: $422.76
Connectors & Cables
-
-
Sub-Micro DIN Connector 1/2" Conduit ConnectionStock #: 588003Usually Ships: Same DayPrice: $14.64 -
-
Sub-Micro DIN Plug Connector with 16 foot CableStock #: 588007AUsually Ships: Same DayPrice: $28.32
High Temperature Mounting Kit
Spring Check Valve
-
-
-
-
Electric Actuator 486 in.lbs (55Nm), 24-240VStock #: 561055EUsually Ships: Same DayPrice: $596.16
