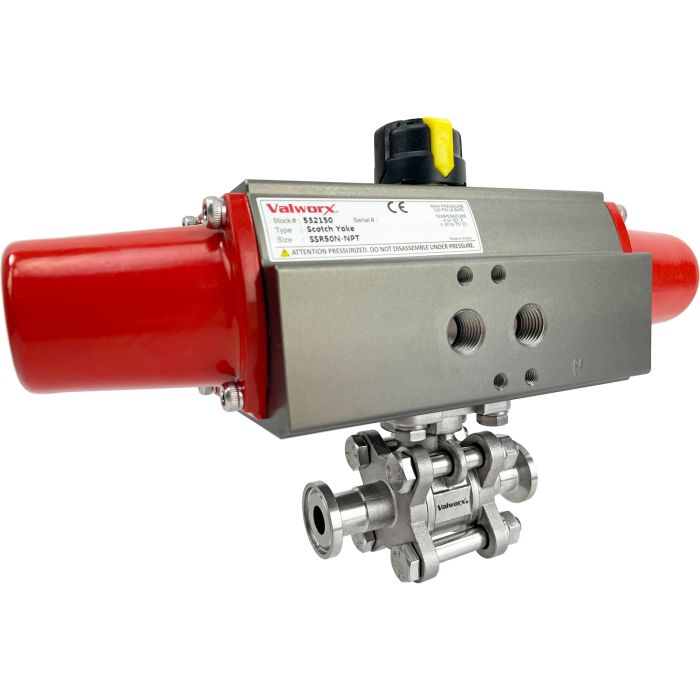

1/2" Sanitary Ball Valve, Spring Return Scotch Yoke, Tri-Clamp
SKU
571300A
Series
5713
List Price: $485.35
Price:
$388.28
- Buy 3 for $349.45 each and save 10%
Valworx 571300A air actuated stainless steel sanitary ball valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where sanitary construction is required, as well as for utility, process and corrosive environment applications where quick clamp applications are needed. Highly polished internals (8- 12 Ra finish). Dyneon PTFE ball seats and cavity fillers are standard. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations.
Ball Valve Standard FeaturesFull Port for Unrestricted Flow 8- 12 Ra finish on all internal surfaces Dyneon PTFE ball seats and cavity fillers All materials comply with FDA and USDA requirements Triple PTFE/Viton Stem Seal Design, Live Loaded Standard Tri-Clamp ends for sanitary connections Actuator Ready ISO5211 Direct Mounting Pad All valves are tested per API 598 Suitable for vacuum up to 29inHg
Pneumatic Actuator Standard FeaturesExtended cycle life (1 million cycles) Quarter turn Scotch Yoke design Highly visible valve position indicator Dry or lubricated pilot air Factory lubricated for normal life Anodized aluminum body with epoxy-polyester coated end covers Namur & ISO mounting
Options (see Accessories tab)
Ball Valve Standard Features
Pneumatic Actuator Standard Features
Options (see Accessories tab)
| Actuator Temperature Range | -4 to 167°F (-20 to 75°C) |
|---|---|
| Ball Seats | Dyneon PTFE |
| Cavity Filler | Dyneon PTFE, encapsulated |
| Cycle Time | Approx. 0.3- 0.5 seconds per 90° rotation |
| Internal Finish | 8- 12 Ra |
| Pilot Air Pressure (Max) | 120 PSI |
| Pipe Size ~ Tri-Clamp | 1/2" ~ 3/4" |
| Port Size | Full port, 0.4 inch orifice, Cv 13.0 |
| Pressure (Max) | 1000 PSI WOG |
| Recommended Air Pilot Pressure | 58-87 PSI |
| Stem Seals | PTFE/ Viton, live loaded |
| Type | Air Actuated Sanitary Ball Valve- Spring Return |
| Valve Bolts/Nuts | ASTM 304 stainless steel |
| Valve Body/Ball | ASTM 316 stainless steel |
| Valve Stem | ASTM 316 stainless steel |
| Valve Temperature Range | -4 to 356°F (-20 to 180°C) |
