1/4" Air Actuated High Pressure Stainless Ball Valve - Double Acting Scotch Yoke
Stock #
542802
Series
5428
List Price: $380.00
Price: $304.00
- Buy 3 for $273.60 each
Usually Ships: Same Day

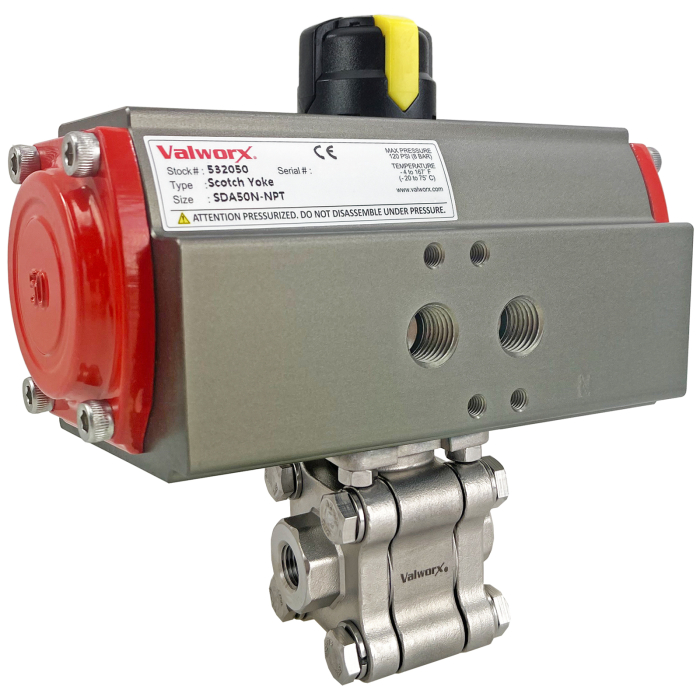

Valworx 542802 air actuated double acting stainless steel ball valves are typically used for on-off control of air, water, oil, and other media compatible with the materials of construction. Fire safe approved per API 607. Unique three piece investment cast bolted body design offers the advantage of a swing out body for easy inline maintenance. Double acting actuators use an air pressure signal (58- 87 PSI) to open and close the valve.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Not suitable for potable water, oxygen or high purity applications.
Ball Valve Standard Features2000 PSI working pressure ( CWP-see P/T chart) Fire safe approved per API 607 Braided graphite stem seals 3-piece swing out design for easy maintenance Direct mounting valve per ISO5211 Full port for unrestricted flow 316 stainless steel body, ball and stem Blow out proof stem RTFE ball seats extend cycle life
Pneumatic Actuator Standard FeaturesExtended cycle life (1 million cycles) Quarter turn scotch yoke design Weatherproof type IP66 & IP68 actuator Highly visible valve position indicator Factory lubricated for normal life Anodized aluminum body with epoxy-polyester coated end covers Namur & ISO mounting
Options (see Accessories tab)
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Not suitable for potable water, oxygen or high purity applications.
Ball Valve Standard Features
Pneumatic Actuator Standard Features
Options (see Accessories tab)
| Type | Air Actuated High Pressure Stainless Ball Valve- Scotch Yoke |
|---|---|
| Cycle Time | Approx. 1/1 second open/close per 90° rotation |
| Pipe Size | 1/4" NPT female |
| Full Port Orifice Size (inches) | 0.45 |
| Cv | 14.2 |
| Pressure Rating | 2000 PSI |
| Valve Temperature Range | -4 to 392°F (-20 to 200°C) |
| Actuator Temperature Range | -4 to 167°F (-20 to 75°C) |
| Valve Body/Ball | 316 SS |
| Body/Ball Material | 316 Stainless Steel |
| Ball Seat Material | RTFE (reinforced Teflon) |
| Stem Seal Material | Braided Graphite/ FKM (Viton) |
| Enclosure Protection | IP66 & IP68 weatherproof |
| Pilot Air Pressure (PSI) | 58-87 |
| Air Consumption (SCI per 90° cycle) | 146.5 |
| Air Connections | 1/4" NPT (plus NAMUR pad for solenoid valve) |
| Actuator Seals | NBR |
| Max Fluid Velocity | 10 feet per second |
Accessories
Direct Mount Solenoid Valves
-
-
-
ISO DIN Plug with 16ft Cable for Solenoid ValvesStock #: 588013Usually Ships: Same DayPrice: $31.92
Limit Switch
Digital Smart Positioner
High Temperature Mounting Kit
Please email sales@valworx.com to request the specific files you need. Include the stock number of the valve and any accessories with your request.
316 SS
-
-
1/4" High Pressure Stainless Ball Valve - Direct MountStock #: 551602AUsually Ships: Same DayPrice: $116.00
