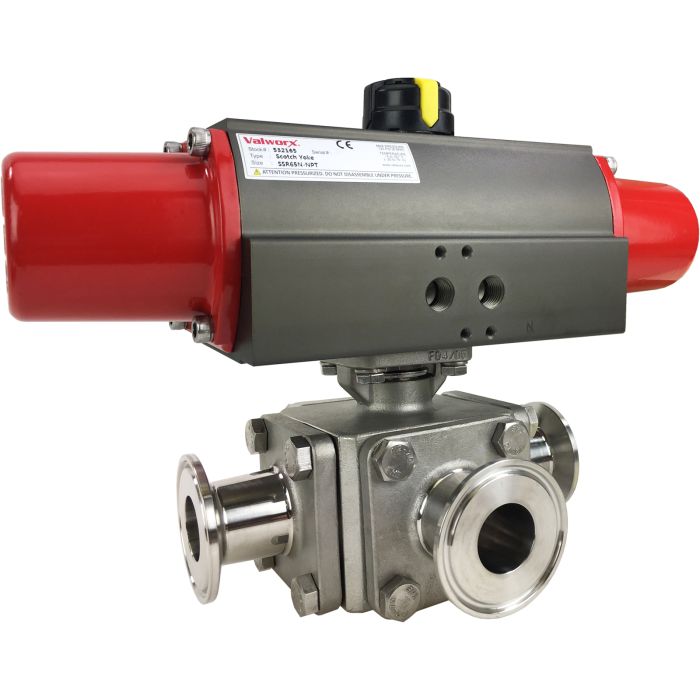

1" Sanitary Ball Valve, T-Port, Spring Return Scotch Yoke, Tri-Clamp
Stock #
577302A
Series
5773
List Price: $1,200.18
Price: $960.14
- Buy 3 for $864.13 each
Usually Ships: Same Day
Valworx 577302A air actuated stainless steel sanitary 3-way ball valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where sanitary construction is required, as well as for utility, process and corrosive environment applications where quick clamp applications are needed. These T port valves can be set-up in any one of four different flow patterns (T1-T4) in the field by simply moving the valve stem (factory setup T2 flow pattern). Highly polished internals (8- 12 Ra finish) and Dyneon PTFE ball seats are standard. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations.
Ball Valve Standard FeaturesFull Port for Unrestricted Flow 8- 12 Ra finish on all internal surfaces Dyneon PTFE ball seats and cavity fillers All materials comply with FDA and USDA requirements Triple PTFE/Viton Stem Seal Design, Live Loaded Standard Tri-Clamp ends for sanitary connections Actuator Ready ISO5211 Direct Mounting Pad All valves are tested per API 598
Pneumatic Actuator Standard FeaturesExtended cycle life (1 million cycles) Quarter turn Scotch Yoke design Highly visible valve position indicator Dry or lubricated pilot air Factory lubricated for normal life Anodized aluminum body with epoxy-polyester coated end covers Namur & ISO mounting
Options (see Accessories tab)
Ball Valve Standard Features
Pneumatic Actuator Standard Features
Options (see Accessories tab)
| Type | Air Actuated Sanitary 3 Way Ball Valve- Spring Return |
|---|---|
| Cycle Time | Approx. 1/1 second open/close per 90° rotation |
| Pipe Size ~ Tri-Clamp (inches) | 1" ~ 1-1/2" |
| Full Port Orifice Size (inches) | 0.90 |
| Cv | 17.3 |
| Shell Pressure | 1000 PSI WOG |
| Valve Temperature Range | -4 to 356°F (-20 to 180°C) |
| Actuator Temperature Range | -4 to 167°F (-20 to 75°C) |
| Valve Body/Ball | 316 SS |
| Body/Ball Material | 316 Stainless Steel |
| Stem | 316 Stainless Steel |
| Internal Finish | 8- 12 Ra |
| Cavity Filler | Dyneon PTFE, encapsulated |
| Ball Seat Material | Dyneon PTFE |
| Stem Seal Material | PTFE/ Viton (live loaded and adjustable) |
| Enclosure Protection | IP66 & IP68 weatherproof |
| Pilot Air Pressure (PSI) | 58-87 |
| Air Consumption (SCI per 90° cycle) | 73.2 |
| Bolts/Nuts | 304 Stainless Steel |
| Max Fluid Velocity | 10 feet per second |
