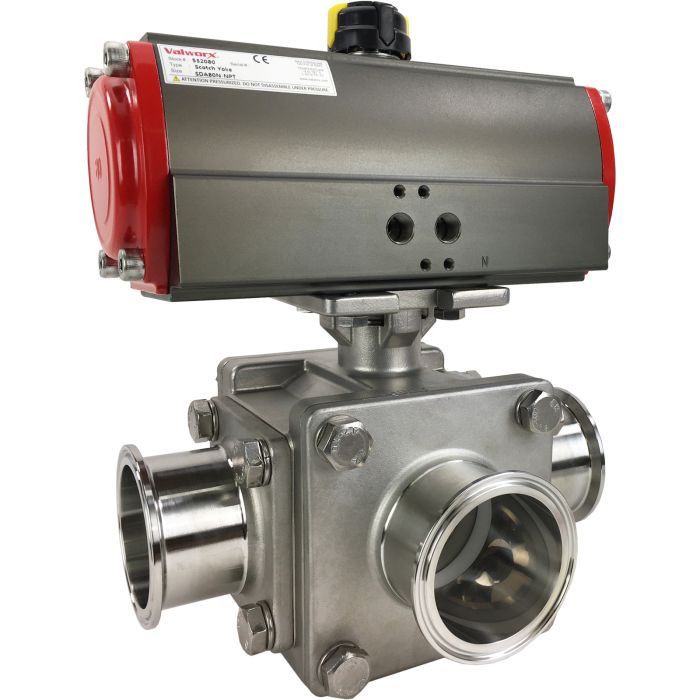

2-1/2" Sanitary Ball Valve, T-Port, Double Acting Scotch Yoke, Tri-Clamp
SKU
577205A
Series
5772
List Price: $4,169.48
Price:
$3,335.58
- Buy 3 for $3,002.03 each and save 10%
Valworx 577205A air actuated stainless steel sanitary 3-way ball valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where sanitary construction is required, as well as for utility, process and corrosive environment applications where quick clamp applications are needed. These T port valves can be set-up in any one of four different flow patterns (T1-T4) in the field by simply moving the valve stem (factory setup T2 flow pattern). Highly polished internals (8- 12 Ra finish) and Dyneon PTFE ball seats are standard. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations.
Ball Valve Standard FeaturesFull Port for Unrestricted Flow 8- 12 Ra finish on all internal surfaces Dyneon PTFE ball seats and cavity fillers All materials comply with FDA and USDA requirements Triple PTFE/Viton Stem Seal Design, Live Loaded Standard Tri-Clamp ends for sanitary connections Actuator Ready ISO5211 Direct Mounting Pad All valves are tested per API 598
Pneumatic Actuator Standard FeaturesExtended cycle life (1 million cycles) Quarter turn Scotch Yoke design Highly visible valve position indicator Dry or lubricated pilot air Factory lubricated for normal life Anodized aluminum body with epoxy-polyester coated end covers Namur & ISO mounting
Options (see Accessories tab)
Ball Valve Standard Features
Pneumatic Actuator Standard Features
Options (see Accessories tab)
| Actuator Temperature Range | -4 to 167 °F (-20 to 75 °C) |
|---|---|
| Ball Seats | Dyneon PTFE |
| Cavity Filler | Dyneon PTFE, encapsulated, all ports |
| Cycle Time | Approx. 0.8 seconds per 90° rotation |
| Internal Finish | 8- 12 Ra |
| Pilot Air Pressure (Max) | 120 PSI |
| Pipe Size ~ Tri-Clamp | 2-1/2" ~ 2-1/2" |
| Port Size | Full port, 2.4 inch orifice, Cv 229 |
| Recommended Air Pilot Pressure | 58-87 PSI |
| Shell Pressure (Max) | 1000 PSI WOG |
| Stem Seals | PTFE/ Viton, live loaded |
| Type | Air Actuated Sanitary 3 Way Ball Valve- Double Acting |
| Valve Bolts/Nuts | ASTM 304 stainless steel |
| Valve Body/Ball | ASTM 316 stainless steel |
| Valve Stem | ASTM 316 stainless steel |
| Valve Temperature Range | -4 to 356 °F (-20 to 180 °C) |
