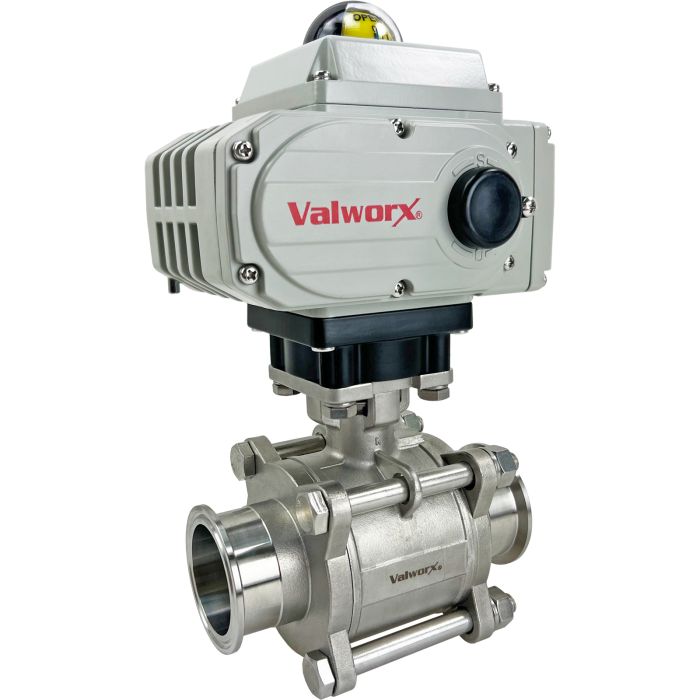

2" Sanitary Ball Valve, 110 VAC EPS-Positioner, Tri-Clamp
Stock #
570604C
Series
5706
List Price: $1,840.88
Price: $1,472.70
- Buy 3 for $1,325.43 each
Usually Ships: Same Day
Valworx 570604C electric actuated stainless steel sanitary ball valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where sanitary construction is required, as well as for utility, process and corrosive environment applications where quick clamp applications are needed. Highly polished internals (8- 12 Ra finish). Dyneon PTFE ball seats and cavity fillers are standard. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations.
Modbus control is available as a factory-installed option. Click on the Accessories tab for details.
Ball Valve Standard FeaturesFull Port for Unrestricted Flow 8- 12 Ra finish on all internal surfaces Dyneon PTFE ball seats and cavity fillers All materials comply with FDA and USDA requirements Triple Dyneon PTFE Stem Seal Design, Live Loaded Standard Tri-Clamp ends for sanitary connections Actuator Ready ISO5211 Direct Mounting Pad All valves are tested per API 598Suitable for vacuum up to 29inHg
Electric Actuator Standard FeaturesEPS-Electronic Positioning System with 4-20mA input Quarter turn operation with mechanical limits Rugged Type 4X weatherproof aluminum alloy housing Visual valve position indicator Manual override Heavy duty motor with overload protection Thermostatically controlled anti-condensation heater Analog output signal to confirm valve position Self-locking all metal gear drive, no additional brake required CSA Listed per UL429 and CSA C22.2, CE marked
Options (see Accessories tab)
Modbus control is available as a factory-installed option. Click on the Accessories tab for details.
Ball Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Type | Electric Actuated Sanitary Ball Valve- Positioner |
|---|---|
| Actuator Voltage | 110 VAC 50/60Hz |
| Current Rating | 0.27A (full load amps) |
| Cycle Time | 21 seconds per 90° rotation |
| Duty Cycle | 70% |
| Pipe Size ~ Tri-Clamp (inches) | 2" ~ 2" |
| Full Port Orifice Size (inches) | 1.90 |
| Cv | 207.0 |
| Shell Pressure | 1000 PSI WOG |
| Valve Temperature Range | -4 to 356°F (-20 to 180°C) |
| Actuator Temperature Range | -13 to 131°F (-25 to 55°C) |
| Valve Body/Ball | 316 SS |
| Body/Ball Material | 316 Stainless Steel |
| Stem | 316 Stainless Steel |
| Internal Finish | 8- 12 Ra |
| Cavity Filler | Dyneon PTFE, encapsulated |
| Ball Seat Material | Dyneon PTFE |
| Stem Seal Material | PTFE/ Viton (live loaded and adjustable) |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Protection | IP67, NEMA 4, 4X weatherproof |
| Electrical Connections | Terminal strip, 1/2" NPT conduit (optional) / cable connector (included) |
| Input Control Signal | 4-20mA |
| Output signal | 4-20mA output monitoring signal (same type as input signal) |
| Valve Position Indicator | Dome Indicator |
| Manual Override | 5mm hex drive with protective cover |
| Motor Protection | Thermal overload |
| Anti-Condensation Heater | 4 watts thermostatically controlled |
| Bolts/Nuts | 304 Stainless Steel |
| Max Fluid Velocity | 10 feet per second |
