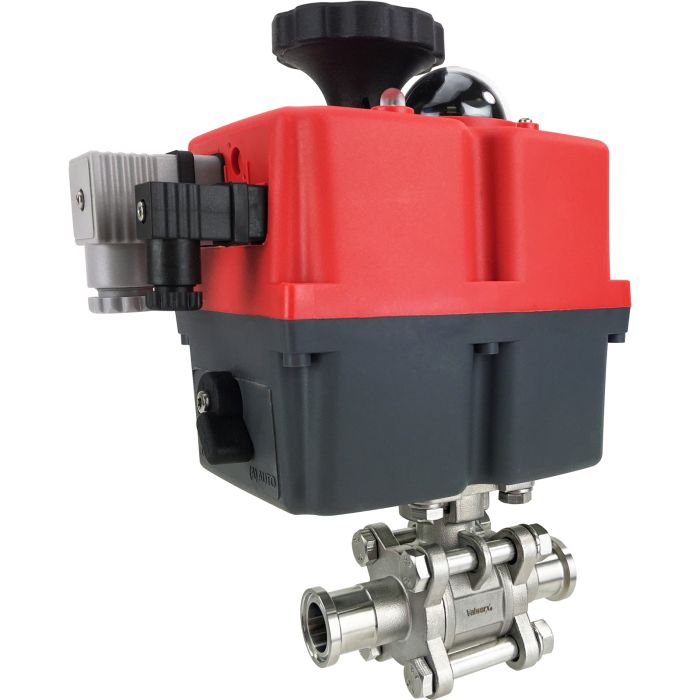

3/4" Sanitary Ball Valve, 24-240V, Tri-Clamp
SKU
570401A
Series
5704
List Price: $681.26
Price:
$545.01
- Buy 3 for $490.51 each and save 10%
Valworx 570401A electric actuated stainless steel sanitary ball valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where sanitary construction is required, as well as for utility, process and corrosive environment applications where quick clamp applications are needed. Highly polished internals (8- 12 Ra finish). Dyneon PTFE ball seats and cavity fillers are standard. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations.
Ball Valve Standard FeaturesFull Port for Unrestricted Flow 8- 12 Ra finish on all internal surfaces Dyneon PTFE ball seats and cavity fillers All materials comply with FDA and USDA requirements Triple PTFE/Viton Stem Seal Design, Live Loaded Standard Tri-Clamp ends for sanitary connections Actuator Ready ISO5211 Direct Mounting Pad All valves are tested per MSS-SP82 Suitable for vacuum up to 29inHg
Electric Actuator Standard FeaturesHighly visible LED light gives continuous actuator status indication Multi-voltage capable with auto-voltage sensing Electronic torque limiter - protects against valve jams Anti-condensation heater Manual override with visual valve position indicator All electrical connections via external DIN plugs (included) - no need to remove cover Two dry contact limit switches used to confirm open/closed valve position Rugged IP67 weatherproof housing, CE marked
Options (see Accessories tab)
Ball Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Actuator Temperature Range | -4 to 158°F (-20 to 70°C) |
|---|---|
| Anti-Condensation Heater | 4 watts thermostatically controlled |
| Ball Seats | Dyneon PTFE |
| Cavity Filler | Dyneon PTFE, encapsulated |
| Current Rating | 0.3A @ 110VAC, 0.16A @ 240VAC, 1.28A @ 24VAC 0.97A @ 24VDC (full load amps) |
| Cycle Time | 9 seconds per 90° rotation (no load) |
| Duty Cycle | 75% |
| Electrical Connections | DIN plugs with cable entry (included), optional 1/2" conduit plugs |
| Enclosure | Anti-corrosive polyamide, SS fasteners |
| Enclosure Rating | IP67 weatherproof, UV protection |
| Internal Finish | 8- 12 Ra |
| Manual Override | Hand knob |
| Max Fluid Velocity | 10 feet per second |
| Motor Protection | Electronic over-torque with LED status light |
| Pipe Size ~ Tri-Clamp | 3/4" ~ 3/4" |
| Port Size | Full port, 0.6 inch orifice, Cv 18 |
| Pressure (Max) | 1000 PSI WOG |
| Stem Seals | PTFE/ Viton, live loaded |
| Type | Electric Actuated Sanitary Ball Valve- Multivoltage |
| Valve Bolts/Nuts | ASTM 304 stainless steel |
| Valve Body/Ball | ASTM 316 stainless steel |
| Valve Position Confirmation | 2 x SPST auxiliary limit switches rated 3A@125/250VAC,30VDC resistive load |
| Valve Stem | ASTM 316 stainless steel |
| Valve Temperature Range | -4 to 356°F (-20 to 180°C) |
| Voltage | 24 to 240 Volts AC or 24 to 135 Volts DC (1ph, 50/60Hz) auto voltage sensing |
Digital Positioner System
-
5610E DPS-Digital Positioner System Kit 4-20mA - InstalledStock #: 561101EUsually Ships: Same DayPrice: $400.54 -
5610E DPS-Digital Positioner System Kit 0-10v - InstalledStock #: 561102EUsually Ships: Same DayPrice: $400.54
Failsafe Battery Kit
-
5610E BSR-NC Failsafe Battery Kit - InstalledStock #: 561104EUsually Ships: Same DayPrice: $422.76 -
5610E BSR-NO Failsafe Battery Kit - InstalledStock #: 561105EUsually Ships: Same DayPrice: $422.76
Connectors & Cables
-
-
Sub-Micro DIN Connector 1/2" Conduit ConnectionStock #: 588003Usually Ships: Same DayPrice: $14.64 -
-
Sub-Micro DIN Plug Connector with 16 foot CableStock #: 588007AUsually Ships: Same DayPrice: $28.32
High Temperature Mounting Kit
Tri Clamp
-
Electric Actuator 177 in.lbs (20Nm), 24-240VStock #: 561020EUsually Ships: Same DayPrice: $415.66 -
3/4" Sanitary Ball Valve, Direct Mount, Tri-ClampStock #: 570101AUsually Ships: Same DayPrice: $97.76 -
3/4" Sanitary Ball Valve Seal Kit, 2 Way, Cavity FilledStock #: R5701AXX01Usually Ships: Same DayPrice: $37.15
