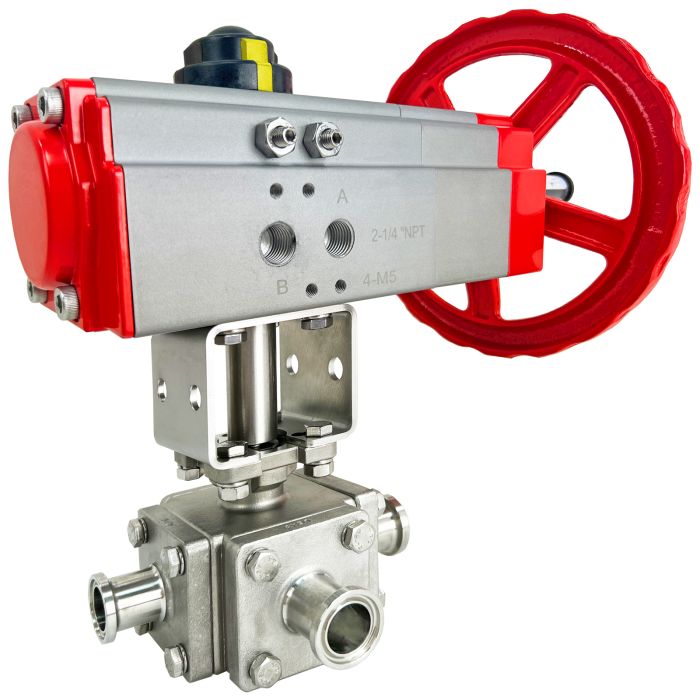

3/4" Sanitary Ball Valve, T-Port, Pneumatic/Manual Double Acting, Tri-Clamp
Stock #
575501
Series
5755
List Price: $1,029.00
Price: $823.20
- Buy 3 for $740.88 each and save 10%
Usually Ships: Same Day
Valworx 575501 pneumatic/manual stainless steel sanitary 3-way ball valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where sanitary construction is required, as well as for utility, process and corrosive environment applications where quick clamp applications are needed. These T port valves can be set-up in any one of four different flow patterns (T1-T4) in the field by simply moving the valve stem (factory setup T2 flow pattern). Highly polished internals (8- 12 Ra finish) and Dyneon PTFE ball seats are standard. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations.
The actuator de-clutch option can be used for manual operation or to set a limit stop for opening or closing.
Ball Valve Standard FeaturesFull Port for Unrestricted Flow 8- 12 Ra finish on all internal surfaces Dyneon PTFE ball seats and cavity fillers All materials comply with FDA and USDA requirements Triple PTFE/Viton Stem Seal Design, Live Loaded Standard Tri-Clamp ends for sanitary connections Actuator Ready ISO5211 Direct Mounting Pad All valves are tested per API 598
Pneumatic/Manual Actuator Standard FeaturesIntegrated handwheel for manual operation Quarter turn rack & pinion design Highly visible valve position indicator Dry or lubricated pilot air Factory lubricated for normal life Anodized aluminum body with epoxy-polyester coated end covers Namur & ISO mounting ATEX approved
Options (see Accessories tab)
The actuator de-clutch option can be used for manual operation or to set a limit stop for opening or closing.
Ball Valve Standard Features
Pneumatic/Manual Actuator Standard Features
Options (see Accessories tab)
| Actuator Temperature Range | -4 to 176°F (-20 to 80°C) |
|---|---|
| Air Consumption | 18.3 |
| Ball Seats | Dyneon PTFE |
| Bolts/Nuts | 304 Stainless Steel |
| Cavity Filler | Dyneon PTFE, encapsulated, all ports |
| Cv | 10.4 |
| Cycle Time | Approx. 1/1 second open/close per 90° rotation |
| Enclosure Protection | IP67 weatherproof |
| Full Port Orifice Size (inches) | 0.60 |
| Internal Finish | 8- 12 Ra |
| Max Fluid Velocity | 10 feet per second |
| Pilot Air Pressure | 80-120 PSI |
| Pipe Size ~ Tri-Clamp | 3/4" ~ 3/4" |
| Shell Pressure | 1000 PSI WOG |
| Stem Seals | PTFE/Viton, live loaded |
| Stem | 316 Stainless Steel |
| Type | Pneumatic/Manual Sanitary 3 Way Ball Valve- Double Acting |
| Valve Body/Ball | 316 Stainless Steel |
| Valve Temperature Range | -4 to 356°F (-20 to 180°C) |
Accessories
Direct Mount Solenoid Valves
-
-
-
ISO DIN Plug with 16ft Cable for Solenoid ValvesStock #: 588013Usually Ships: Same DayPrice: $31.92
Limit Switch
Digital Smart Positioner
Electro-Pneumatic Positioner
High Temperature Mounting Kit
Tri Clamp
Please email sales@valworx.com to request the specific files you need. Include the stock number of the valve and any accessories with your request.
-
-
