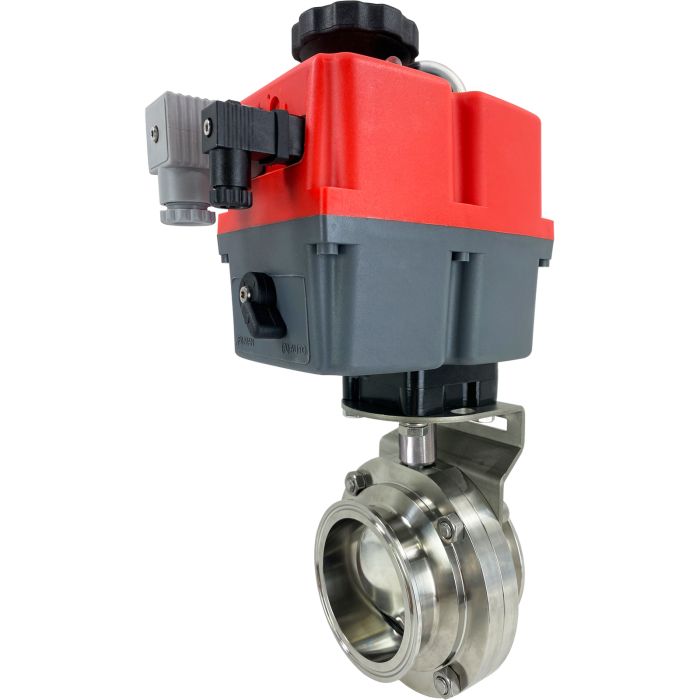

3" Sanitary Butterfly Valve, 24- 240V, Tri-Clamp
Stock #
574506
Series
5745
List Price: $955.47
Price: $764.38
- Buy 3 for $687.94 each
Usually Ships: Same Day
Valworx 574506 electric actuated sanitary butterfly valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where sanitary construction is required, as well as for utility, process and corrosive environment applications where quick clamp applications are needed.
Butterfly Valve Standard Features
Forged valve bodies are machined and chamfered in a single set-up for a precise fit. Single piece disc/stem with disc polished to mirror finish 32 Ra finish on all wetted surfaces EPDM seat materials meets FDA CFR 177.2600 All materials comply with FDA and USDA requirements 316L stainless steel valve body and disc for superior corrosion resistance Standard Tri-Clamp ends for sanitary connections Pressure tested per API 598 Suitable for vacuum up to 29.5inHg
Electric Actuator Standard Features
Highly visible LED light gives continuous actuator status indication Multi-voltage capable with auto-voltage sensing Electronic torque limiter - protects against valve jams Anti-condensation heater Manual override with visual valve position indicator All electrical connections via external DIN plugs (included) - no need to remove cover Two dry contact limit switches used to confirm open/closed valve position Rugged IP67 weatherproof housing, CE marked
Options (see Accessories tab)
Butterfly Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Type | Electric Actuated Sanitary Butterfly Valve- Multivoltage |
|---|---|
| Actuator Voltage | 24- 240 VAC/DC (50/60Hz) auto-voltage sensing |
| Current Rating | 0.30A @ 110VAC, 0.16A @ 240VAC, 1.28A @ 24VAC 0.97A @ 24VDC (full load amps) |
| Cycle Time | 13 seconds per 90° rotation |
| Duty Cycle | 75% |
| Pipe Size ~ Tri-Clamp (inches) | 3" ~ 3" |
| Full Port Orifice Size (inches) | 2.87 |
| Cv | 372 |
| Shell Pressure | 140 PSI WOG |
| Valve Temperature Range | -67 to 302°F (-55 to 150°C) |
| Actuator Temperature Range | -4 to 158°F (-20 to 70°C) |
| Internal Finish | 32 Ra |
| Disc/Stem | 316L Stainless Steel |
| Disc Seat/Liner | EPDM |
| Enclosure | Anti-corrosion polyamide, UV protection, SS fasteners |
| Enclosure Protection | IP67 weatherproof, UV protection |
| Electrical Connections | DIN plugs with cable entry (optional 1/2" conduit plugs or pre-wired cable) |
| Valve Position Confirmation | 2 x SPST auxiliary limit switches rated 3A@125/250VAC, 30VDC resistive load |
| Valve Position Indicator | Dome Indicator |
| Manual Override | Hand knob |
| Motor Protection | Electronic over-torque with LED status light |
| Anti-Condensation Heater | 4 watts thermostatically controlled |
| Body | 316L Stainless Steel |
| Bolts/Nuts | 304 Stainless Steel |
| Bushings | Polypropylene |
Accessories
Digital Positioner System
-
5610E DPS-Digital Positioner System Kit 4-20mA - InstalledStock #: 561101EUsually Ships: Same DayPrice: $400.54 -
5610E DPS-Digital Positioner System Kit 0-10v - InstalledStock #: 561102EUsually Ships: Same DayPrice: $400.54
Failsafe Battery Kit
-
5610E BSR-NC Failsafe Battery Kit - InstalledStock #: 561104EUsually Ships: Same DayPrice: $422.76 -
5610E BSR-NO Failsafe Battery Kit - InstalledStock #: 561105EUsually Ships: Same DayPrice: $422.76
Connectors & Cables
-
-
Sub-Micro DIN Connector 1/2" Conduit ConnectionStock #: 588003Usually Ships: Same DayPrice: $14.64 -
-
Sub-Micro DIN Plug Connector with 16 foot CableStock #: 588007AUsually Ships: Same DayPrice: $28.32
Tri Clamp
-
3" Sanitary Butterfly Valve, Tri-Clamp, Bare StemStock #: 573806Usually Ships: Same DayPrice: $162.35 -
-
-
