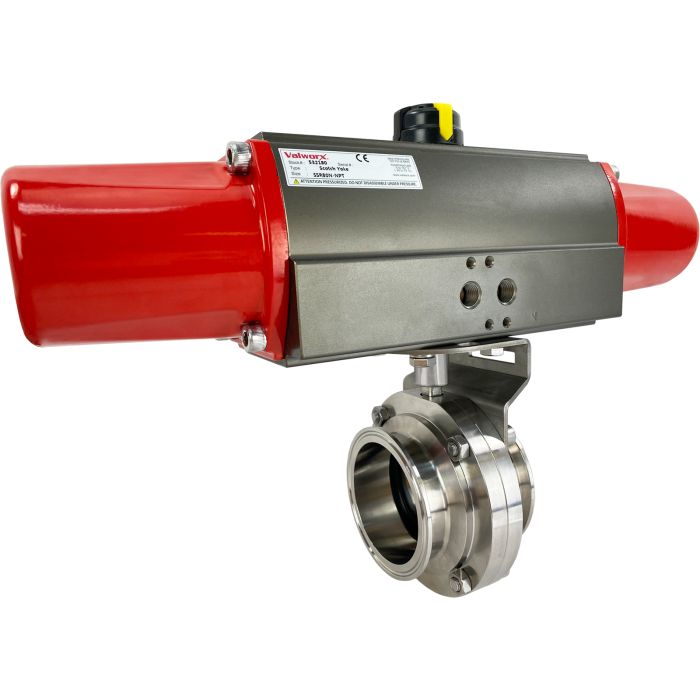

3" Sanitary Butterfly Valve, Spring Return Scotch Yoke, Tri-Clamp
SKU
574906
Series
5749
List Price: $754.48
Price:
$603.58
- Buy 3 for $543.23 each and save 10%
Valworx 574906 air actuated sanitary butterfly valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where sanitary construction is required, as well as for utility, process and corrosive environment applications where quick clamp applications are needed.
Butterfly Valve Standard Features
Forged valve bodies are machined and chamfered in a single set-up for a precise fit. Single piece disc/stem with disc polished to mirror finish 32 Ra finish on all wetted surfaces EPDM seat materials meets FDA CFR 177.2600 All materials comply with FDA and USDA requirements 316L stainless steel valve body and disc for superior corrosion resistance Standard Tri-Clamp ends for sanitary connections Pressure tested per API 598 Suitable for vacuum up to 29.5inHg
Pneumatic Actuator Standard Features
Extended cycle life (1 million cycles) Quarter turn Scotch Yoke design Highly visible valve position indicator Dry or lubricated pilot air Factory lubricated for normal life Anodized aluminum body with epoxy-polyester coated end covers Namur & ISO mounting
Options (see Accessories tab)
Butterfly Valve Standard Features
Pneumatic Actuator Standard Features
Options (see Accessories tab)
| Body | ASTM 316L stainless steel |
|---|---|
| Bolts/Nuts | ASTM 304 stainless steel |
| Bushings | Polypropylene |
| Cycle Time | Approx. 0.4 seconds per 90° rotation |
| Disc/Stem | ASTM 316L stainless steel |
| Internal Finish | 32 Ra |
| Pilot Air Pressure (Max) | 120 PSI |
| Pipe Size | 3" ~ 3" |
| Port Size | 2.9 inch orifice, Cv 372 |
| Pressure (Max) | 140 PSI WOG |
| Recommended Air Pilot Pressure | 58-87 PSI |
| Temperature Range | -67 to 302 °F (-55 to 150 °C) |
| Type | 2-Way Air Actuated, Spring Return Scotch Yoke |
| Valve Seat | EPDM |
