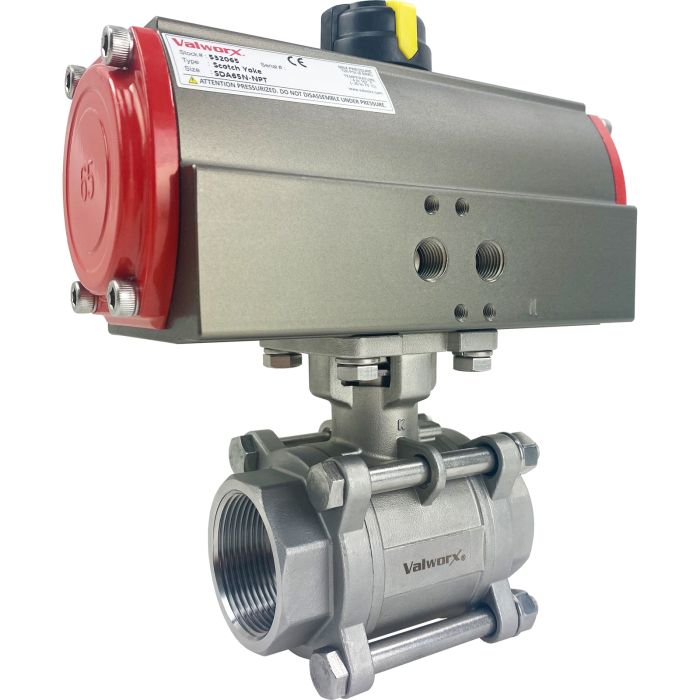

1-1/4" Air Actuated 3-pc Stainless Ball Valve - Double Acting Scotch Yoke

Valworx 552410A air actuated double acting stainless steel ball valves are typically used for on-off control of air, water, oil, and other media compatible with the materials of construction. Unique three piece investment cast bolted body design offers the advantage of a swing out body for easy inline maintenance. Double acting actuators use an air pressure signal (58- 87 PSI) to open and springs to close the valve. The valve will fail closed upon loss of air signal. High temperature valve mounting kit available for extended temperature range or wall mounting applications. Advantages of air actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path, reduced water hammer, and use in hazardous environments. Ball valve can be mounted in any orientation.

Ball Valve Standard Features

1000 PSI working pressure (see P/T chart)

Direct mounting valve per ISO5211

Full port for unrestricted flow

316 stainless steel body, ball and stem

Blow out proof stem

RTFE ball seats extend cycle life

Triple PTFE/Viton stem seal design, live loaded and adjustable

Pneumatic Actuator Standard Features

Extended cycle life (1 million cycles)

Quarter turn scotch yoke design

Weatherproof type IP66 & IP68 actuator

Highly visible valve position indicator

Factory lubricated for normal life

Anodized aluminum body with epoxy-polyester coated end covers

Namur & ISO mounting

Options (see Accessories tab)
