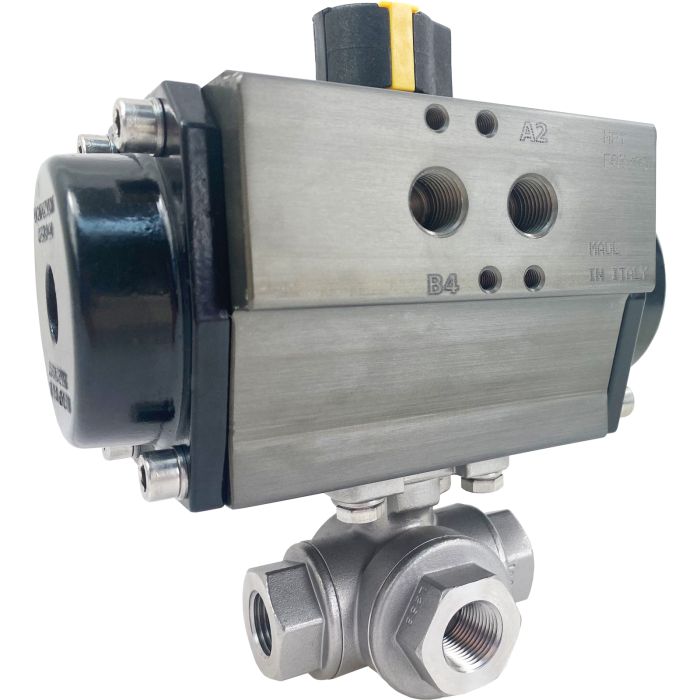

3/8" Air Actuated 3-Way SS L-Port Valve, Spring Return
SKU
523303E
Series
5233
List Price: $507.00
Price:
$405.60
- Buy 3 for $365.04 each and save 10%
Valworx 523303E stainless steel full port three way ball valves are designed for use with water, air, oil, and other media compatible with the materials of construction. Use as an L-port diverter valve (direct flow from center inlet port to either side outlet port 1 or 2) or as a selector valve (two separate inlet ports and one center outlet port). Spring return actuators use an air pressure signal (80-120PSI) to change the valve to position 2 and springs to return the valve to position 1. The valve will fail to position 1 upon loss of air signal (or electrical power, if energized using a pilot solenoid valve). High temperature valve mounting kit available for extended temperature range or wall mounting applications. Advantages of air actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path, reduced water hammer, and use in hazardous environments. Valve is tested per API 598, can be mounted in any orientation.
Ball Valve Standard Features1000 PSI working pressure (see P/T chart) Full port design 316 stainless steel body, ball and stem Four ball seat design allows for full pressure at any port RTFE ball seats for extend cycle life Triple PTFE/Viton stem seal design, live loaded and adjustable Valve direct mounts to actuator per ISO5211
Pneumatic Actuator Standard FeaturesExtended cycle life (1 million cycles) Rack & pinion design Highly visible valve position indicator Dry or lubricated pilot air Factory lubricated for normal life Anodized aluminum body with epoxy-polyester covers Namur & ISO mounting
Options (see Accessories tab)
Ball Valve Standard Features
Pneumatic Actuator Standard Features
Options (see Accessories tab)
| Actuator Seals | NBR |
|---|---|
| Actuator Temperature Range | 0 to 180 °F |
| Air Connections | 1/4" NPT (plus NAMUR pad for solenoid valve) |
| Air Pilot Pressure | 80-120 PSI |
| Ball Seats | PTFE (Teflon) |
| Ball Stem | 316 Stainless Steel |
| Cycle Time | Approx. 1 second per 90° rotation |
| Enclosure Protection | IP67 Weatherproof |
| Max Fluid Velocity | 10 feet per second |
| Pipe Size | 3/8" NPT female |
| Port Size | Full Port, orifice 0.43 inches, Cv 7.3 |
| Pressure (Max) | 1000 PSI see P/T chart, vacuum up to 29inHg |
| Stem Seals | PTFE (Teflon), Viton |
| Valve Body | 316 stainless steel CF8M |
| Valve Temperature Range | -4 to 392 °F (-20 to 200 °C) |
