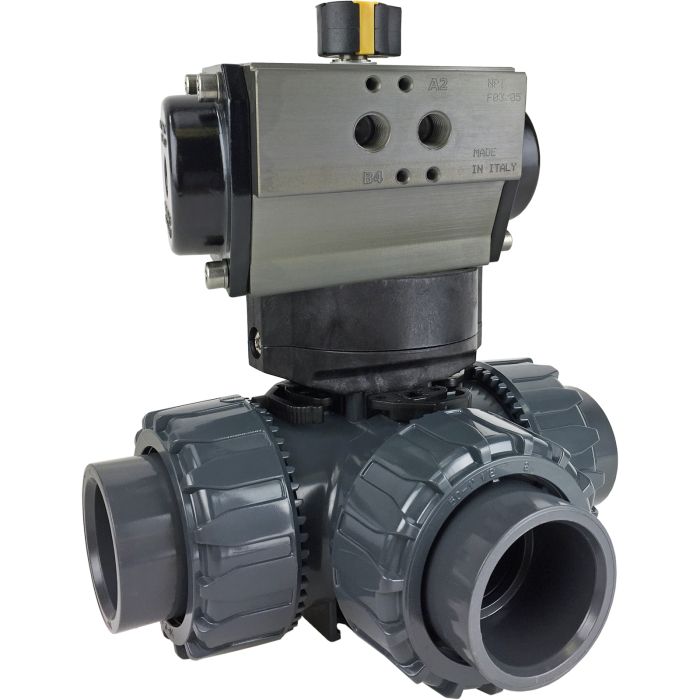

1-1/2" Air Actuated 3-Way T-port PVC Ball Valve - Spring Return
SKU
526051
Series
5260
List Price: $822.11
Price:
$657.69
- Buy 3 for $591.92 each and save 10%
Valworx 526051 air actuated 3-way PVC ball valves are used to control the flow of water and other compatible liquid media (not suitable for compressed air or gas). The T-port flow pattern is typically used as a diverter valve. Ideal where NSF approved construction is required for potable drinking water as well as other industrial applications. Spring return actuators use an air pressure signal (80-120PSI) to change the valve to position 2 and springs to return the valve to position 1. The valve will fail to position 1 upon loss of air signal (or electrical power, if energized using a pilot solenoid valve). Actuator has standard ISO/Namur interface for mounting optional direct mount solenoid valve and other accessories. These actuated ball valves can be mounted in any orientation. Both female NPT and IPS socket end connectors are included with each valve.
Advantages of air actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path and reduced water hammer.
Ball Valve Standard FeaturesIndustrial quality True Union design Full Port for unrestricted flow Union nut locking device prevents back-off Four ball seat design allows for full pressure at any port Energized PTFE ball seats for lower torque and extended life Micro-adjustment of the ball seats Leak free dual stem seal design Series 5514 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for potable drinking water Includes IPS glue sockets and NPT end connectors
Air Actuator Standard FeaturesActuators designed for minimum 1 million cycles Rugged quarter turn rack & pinion design Highly visible valve position indicator Dry or lubricated pilot air Factory lubricated for normal life Anodized aluminum body with polyester coated end covers ISO/Namur mounting for valve accessories
Options (see Accessories tab)
Advantages of air actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path and reduced water hammer.
Ball Valve Standard Features
Air Actuator Standard Features
Options (see Accessories tab)
| Actuator Seals | NBR |
|---|---|
| Actuator Temperature Range | -4 to 180 °F (-18 to 82 °C) |
| Air Connections | 1/4" NPT (plus NAMUR pad for solenoid valve) |
| Air Pilot Pressure | 80-120 PSI (5.5-8.3 Bar) |
| Ball and Stem | PVC |
| Ball Seats | PTFE (Teflon) energized with EPDM |
| Cycle Time | Approx. 1 second per 90° rotation |
| Pipe Size | 1-1/2 inch (both NPT and socket end connectors included) |
| Port Size | Full Port, Cv 42 |
| Stem Seals | (2) EPDM |
| Type | 3-way T-port Spring Return |
| Valve Body | PVC (gray) |
| Valve Pressure Rating | 232 PSI at 73 °F liquid only - no air or gas (see P/T chart ) |
| Valve Temperature Range | 32 to 140 °F (0 to 60 °C) |
