2-1/2" Air Actuated Butterfly Valve, Lug, EPDM, Scotch Yoke, Double Acting
SKU
564313
Series
5643
List Price: $451.92
Price:
$361.54
- Buy 3 for $325.38 each and save 10%

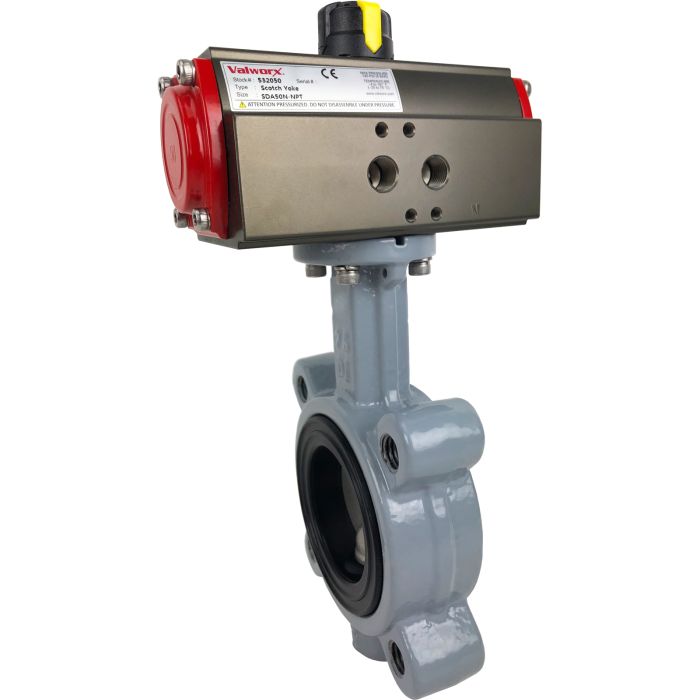

Air actuated soft seated butterfly valve for on-off control of water and other media compatible with the materials of construction. Lug style valve sandwich mounts between standard ANSI /ASME B16.5 Class 125 / 150 flanges. Double acting actuators use an air pressure signal (80-120 PSI) to open and close the valve.
Butterfly Valve Standard FeaturesRugged epoxy coated ductile iron body with stainless steel disc for maximum corrosion resistance Extended life span of valve and seals with unique wave line seat and special disc shape Reduced torque from wave seal and disc design reduces size of actuator, lowering the cost Increased flow capacity with unique profile disc and two piece shaft design Valves direct mount to actuator using standard ISO5211 international standards
Pneumatic Actuator Standard FeaturesExtended cycle life (1 million cycles) Scotch yoke design Highly visible valve position indicator Type IP66 & IP68 weatherproof Anodized aluminum body with epoxy-polyester covers Dry or lubricated pilot air Namur & ISO mounting
Options (see Accessories tab)
Butterfly Valve Standard Features
Pneumatic Actuator Standard Features
Options (see Accessories tab)
| Actuator Seals | NBR |
|---|---|
| Actuator Temperature Range | -4 to 167 °F (-20 to 75 °C) |
| Air Connections | 1/4" NPT (plus NAMUR pad for solenoid valve) |
| Air Pilot Pressure | 80-120 PSI |
| Cycle Time | Approx. 0.3 seconds per 90° rotation |
| Disc | 316 Stainless Steel |
| Disc Seat/Liner | EPDM |
| Flow Capacity | Cv 247 (Cv = number of GPM of 60 °F water at 1 psi pressure drop) |
| Pipe Size | 2-1/2 inch Lug design |
| Pressure Rating | 29 inHg vacuum to 230 PSI |
| Shaft Seals | EPDM V-ring |
| Suitable Flanges | ANSI /ASME B16.5 Class150, B16.1 Class 125 |
| Upper/Lower Stem | SS420 |
| Valve Body | Ductile iron, 3-layer Epoxy/Epoxy/PUR coating (seat facing acts as flange gasket) |
| Valve Temperature Range | 0 to 248 °F (-18 to +120 °C) |
