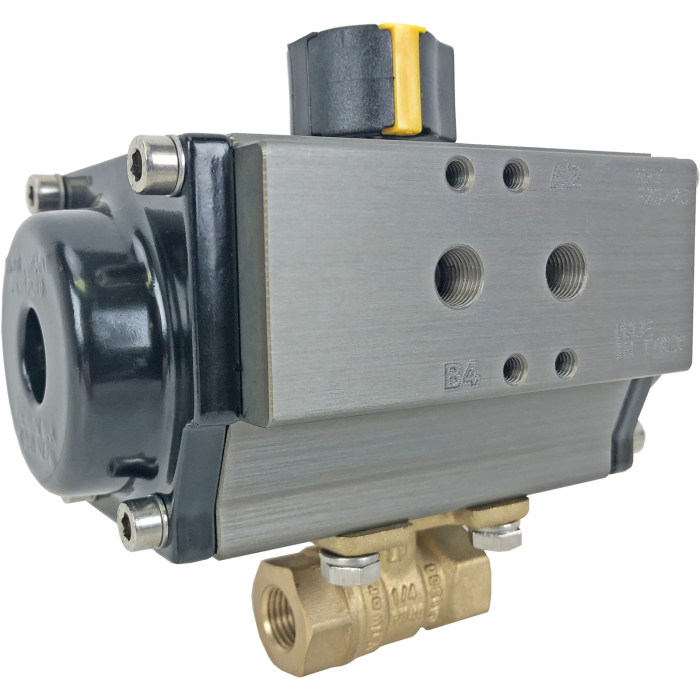

1/4" Air Actuated Brass Ball Valve - Spring Return
Stock #
521440
Series
5214
List Price: $353.08
Price: $282.46
- Buy 3 for $254.22 each
Usually Ships: 4- 6 Weeks
Valworx 521402 air actuated lead free brass ball valves are used for on-off control of air, water, oil, and other media compatible with the materials of construction. Ideal where lead free and NSF approved construction are required for potable drinking water as well as other industrial applications. Spring return actuators use an air pressure signal (80-120 PSI) to open and springs to close the valve. The valve will fail closed upon loss of air signal. Actuator has standard ISO/Namur interface for mounting optional direct mount solenoid valve and other accessories. These actuated ball valves can be mounted in any orientation. High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Advantages of air actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path, reduced water hammer, and use in hazardous environments.
Ball Valve Standard FeaturesDirect mount lead free brass valve Full Port for unrestricted flow 316 stainless steel ball and stem Energized PTFE ball seats for lower torque and extended cycle life Leak free triple PTFE/Viton stem seal design Certified per NSF372 and NSF61 for use with potable/drinking water
Air Actuator Standard FeaturesActuators designed for minimum 1 million cycles Rugged quarter turn rack & pinion design Multiple pre-compressed spring cartridges Highly visible valve position indicator Dry or lubricated pilot air Factory lubricated for normal life Anodized aluminum body with polyester coated end covers ISO/Namur mounting for valve and accessories
Options (see Accessories tab)
Advantages of air actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path, reduced water hammer, and use in hazardous environments.
Ball Valve Standard Features
Air Actuator Standard Features
Options (see Accessories tab)
| Type | Air Actuated Brass Ball Valve- Spring Return |
|---|---|
| Cycle Time | Approx. 1/1 second open/close per 90° rotation |
| Pipe Size (in)-Specs | 1/4" NPT female |
| Full Port Orifice Size (inches) | 0.39 |
| Cv | 6 |
| Pressure Rating | 600 PSI (see P/T chart), 25 PSI saturated steam with high temp kit, vacuum up to 29 InHg |
| Valve Temperature Range | -4 to 366°F (-20 to 186°C) |
| Actuator Temperature Range | -4 to 176°F (-20 to 80°C) |
| Valve Body-Specs | Lead Free Brass C69300 |
| Ball/Stem Material | 316 Stainless Steel |
| Ball Seat Material | PTFE/ Viton |
| Stem Seal Material | PTFE/ Viton |
| Disc Seat/Liner | EPDM |
| Enclosure Protection | IP67 weatherproof |
| Pilot Air Pressure (PSI) | 80-120 |
| Air Consumption (SCI per 90° cycle) | 36.6 |
| Air Connections | 1/8" NPT |
| Actuator Seals | NBR |
| Max Fluid Velocity | 10 feet per second |
