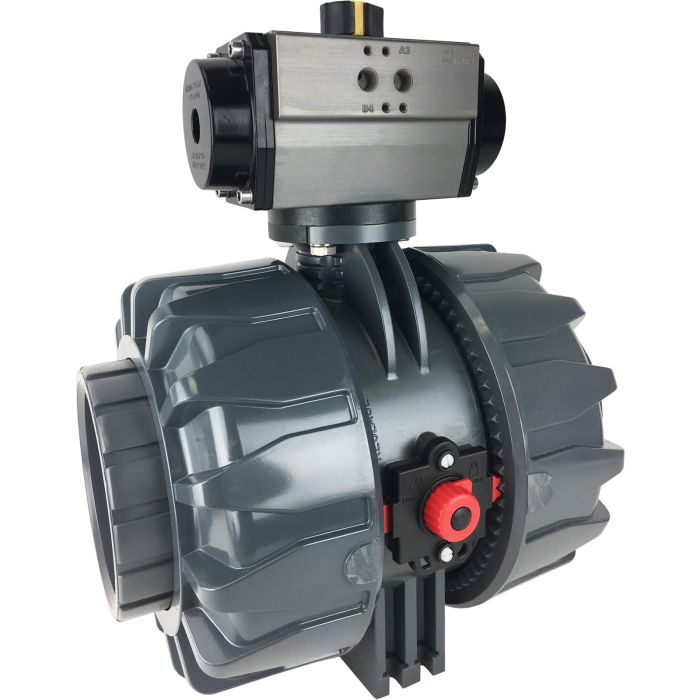

4" Air Actuated PVC Ball Valve - Spring Return
Stock #
524232A
Series
5242
List Price: $1,896.78
Price: $1,517.42
- Buy 3 for $1,365.68 each
Usually Ships: Same Day
Valworx 524232A air actuated PVC ball valves are used for on-off control of water and other compatible media (no air or gas). Ideal where NSF certified construction is required for potable drinking water as well as other industrial applications. Spring return actuators use an air pressure signal (80-120 PSI) to open and springs to close the valve. The valve will fail closed upon loss of air signal. Actuator has standard ISO/Namur interface for mounting optional direct mount solenoid valve and other accessories. These actuated ball valves can be mounted in any orientation.
Advantages of air actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path and reduced water hammer.
Ball Valve Standard FeaturesTrue Union with Bi-directional flow Full Port for unrestricted flow Union nut locking device prevents back-off Energized PTFE ball seats for lower torque and extended life Leak free dual stem seal design Series 5510 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for use with potable drinking water
Air Actuator Standard FeaturesActuators designed for minimum 1 million cycles Rugged quarter turn rack & pinion design Highly visible valve position indicator Dry or lubricated pilot air Factory lubricated for normal life Anodized aluminum body with polyester coated end covers ISO/Namur mounting for valve accessories
Options (see Accessories tab)
Advantages of air actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path and reduced water hammer.
Ball Valve Standard Features
Air Actuator Standard Features
Options (see Accessories tab)
| Type | Air Actuated PVC Ball Valve- Spring Return |
|---|---|
| Cycle Time | Approx. 2/1 seconds open/close per 90° rotation |
| Pipe Size (in)-Specs | 4" (IPS glue socket end connectors) |
| Full Port Orifice Size (inches) | 4.50 |
| Cv | 665 |
| Pressure Rating | 232 PSI |
| Valve Temperature Range | 32 to 140°F (0 to 60°C) |
| Actuator Temperature Range | -4 to 176°F (-20 to 80°C) |
| Valve Body/Ball | PVC |
| Body/Ball Material | PVC |
| Ball | PVC |
| Stem | Stainless Steel |
| Ball Seat Material | PTFE/ EPDM |
| Stem Seal Material | EPDM |
| Enclosure Protection | IP67 weatherproof |
| Pilot Air Pressure (PSI) | 80-120 |
| Air Consumption (SCI per 90° cycle) | 476 |
| Air Connections | 1/4" NPT |
| Actuator Seals | NBR |
| Max Fluid Velocity | 5 feet per second |
