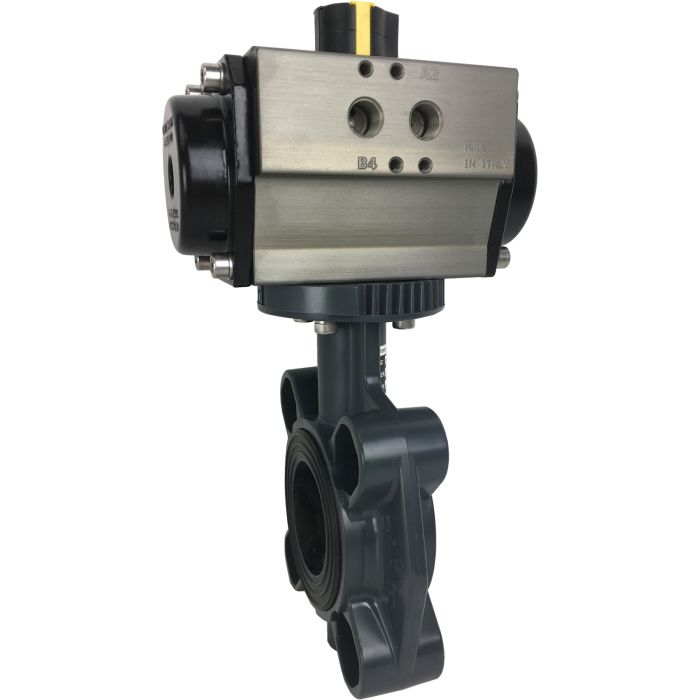

2" Air Actuated PVC Butterfly Valve - Double Acting
Stock #
540302
Series
5403
List Price: $788.00
Price: $630.40
- Buy 3 for $567.36 each
Usually Ships: Same Day
Valworx 540302 air actuated PVC Butterfly valves are used for on-off control of water and other compatible media. Ideal where NSF certified construction is required for potable drinking water as well as other industrial applications. Double acting actuators use an air pressure signal (80-120 PSI) to open and close the valve. These actuated butterfly valves can be mounted in any orientation.
PVC butterfly valves should never be used for compressed gas applications.
Advantages of air actuated pvc butterfly valves over other type valves may include: lower weight, higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path and reduced water hammer.
Butterfly Valve Standard FeaturesIndustrial grade PVC butterfly valve Pressure rated 232 psi at 73°F Polypropylene (PP) disc ANSI 150 wafer-style flange connection 316 stainless steel shaft EPDM primary liner Series 5402 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for potable drinking water
Air Actuator Standard FeaturesActuators designed for minimum 1 million cycles Rugged quarter turn rack & pinion design Highly visible valve position indicator Dry or lubricated pilot air Factory lubricated for normal life Anodized aluminum body with polyester coated end covers ISO/Namur mounting for valve accessories
Options (see Accessories tab)
PVC butterfly valves should never be used for compressed gas applications.
Advantages of air actuated pvc butterfly valves over other type valves may include: lower weight, higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path and reduced water hammer.
Butterfly Valve Standard Features
Air Actuator Standard Features
Options (see Accessories tab)
| Type | Air Actuated PVC Butterfly Valve- Double Acting |
|---|---|
| Cycle Time | Approx. 1/1 second open/close per 90° rotation |
| Pipe Size (in)-Specs | 2" (DN50) |
| Disc Size (inches) | 1.97 |
| Suitable Flanges | ANSI B16.5 |
| Cv | 90 |
| Pressure Rating | 232 PSI |
| Valve Temperature Range | 32 to 140°F (0 to 60°C) |
| Actuator Temperature Range | -4 to 176°F (-20 to 80°C) |
| Valve Body-Specs | PVC |
| Disc | Polypropylene (PP) |
| Stem | 316 Stainless Steel |
| Enclosure Protection | IP67 weatherproof |
| Pilot Air Pressure (PSI) | 80-120 |
| Air Consumption (SCI per 90° cycle) | 195.3 |
| Air Connections | 1/4" NPT |
| Actuator Seals | NBR |
