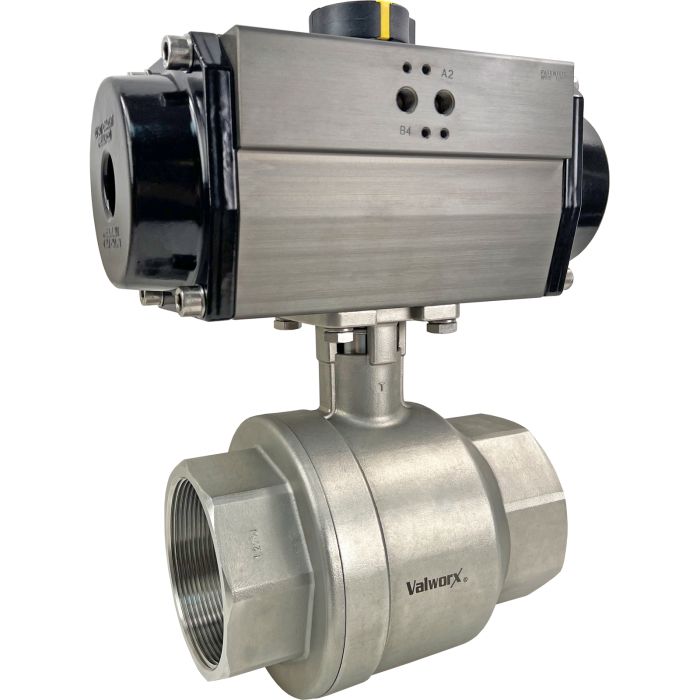

4" Air Actuated Stainless Ball Valve - Double Acting
SKU
523532C
Series
5235
List Price: $2,183.76
Price:
$1,747.01
- Buy 3 for $1,572.31 each and save 10%
Valworx 523532C air actuated double acting stainless steel ball valves are typically used for on-off control of air, water, oil, and other media compatible with the materials of construction. Double acting actuators use an air pressure signal (80-120 PSI) to open and close the valve. High temperature valve mounting kit available for extended temperature range or wall mounting applications. Advantages of air actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path, reduced water hammer, and use in hazardous environments. Ball valve can be mounted in any orientation.
Ball Valve Standard Features800 PSI working pressure (see P/T chart) Direct mounting valve per ISO5211 Full port for unrestricted flow 316 stainless steel body, ball and stem Blow out proof stem RTFE ball seats extend cycle life Triple PTFE/Viton stem seal design, live loaded and adjustable
Pneumatic Actuator Standard FeaturesExtended cycle life (1 million cycles) Quarter turn rack & pinion design Highly visible valve position indicator Dry or lubricated pilot air Factory lubricated for normal life Anodized aluminum body with epoxy-polyester coated end covers Namur & ISO mounting
Options (see Accessories tab)
Ball Valve Standard Features
Pneumatic Actuator Standard Features
Options (see Accessories tab)
Actuator Seals | NBR |
---|---|
Actuator Temperature Range | 0 to 180 °F (-18 to 82 °C) |
Air Connections | 1/4" NPT (plus NAMUR pad for solenoid valve) |
Air Pilot Pressure | 80-120 PSI |
Ball and Stem | 316 Stainless Steel |
Ball Seats | RTFE (reinforced Teflon) |
Cycle Time | Approx. 1 second per 90° rotation |
Enclosure Protection | IP67 Weatherproof |
Max Fluid Velocity | 10 feet per second |
Pipe Size | 4" NPT female |
Port Size | Full Port, Orifice 3.94 inches, Cv 710 |
Pressure (Max) | 800 PSI see P/T chart, vacuum up to 29inHg |
Stem Seals | PTFE/ Viton (live loaded and adjustable) |
Type | Air Actuated 2 Way Ball Valve-Double Acting |
Valve Body | 316 stainless steel CF8M |
Valve Temperature Range | -4 to 392 °F (-20 to 200 °C) |
Direct Mount Solenoid Valves
-
ISO DIN Plug with 16ft Cable for Solenoid ValvesStock #: 588013Usually Ships: Same DayPrice: $31.92
Limit Switch
Digital Smart Positioner
Electro-Pneumatic Positioner
High Temperature Mounting Kit
Manual Override Gear Operator
-
Declutchable Manual Override Gear Operator, 17 x 89mm ShaftStock #: 575237Usually Ships: Same DayPrice: $241.60
