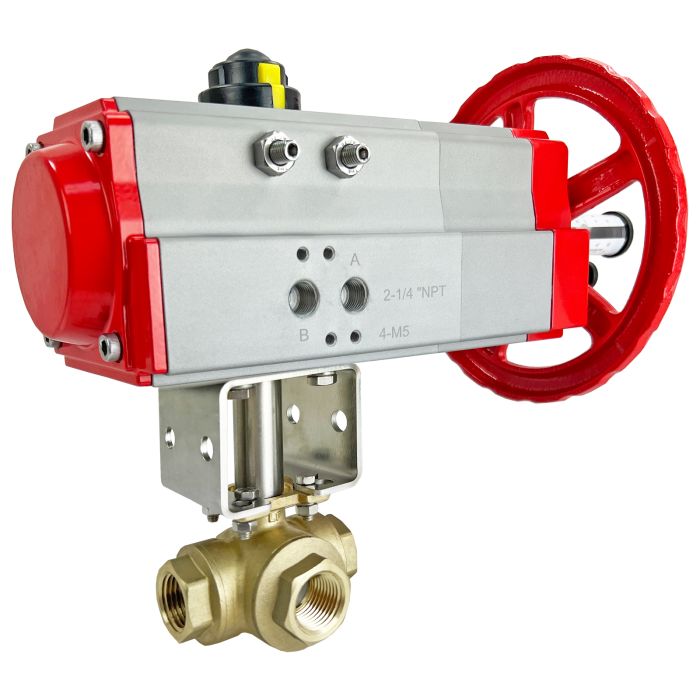

1/2" Pneumatic/Manual 3-Way Brass L-diverter Valve, Spring Return

Valworx 545604 pneumatic/manual 3-way lead free brass ball valves are designed for use with air, water, oil, and other media compatible with the materials of construction. The de-clutch option can be used for manual operation or to set a limit stop for opening or closing. These L-port ball valves can be used as a diverter or selector valve. Ideal where lead free and NSF approved construction are required for potable drinking water as well as other industrial applications. Spring return actuators use an air pressure signal (58-87PSI) to change the valve to position 2 and springs to return the valve to position 1. The valve will fail to position 1 upon loss of air signal (or electrical power, if energized using a pilot solenoid valve). There is no flow shutoff position with this type valve. Actuator has standard ISO/Namur interface for mounting optional direct mount solenoid valve and other accessories. These actuated ball valves can be mounted in any orientation. Suitable for steam up to 50 PSI max. with kit and vacuum service to 29 inch Hg.

Advantages of air actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path, reduced water hammer, and use in hazardous environments.

Ball Valve Standard Features

Direct mount lead free brass valve

Full Port for unrestricted flow

316 stainless steel ball and stem

Four ball seat design allows for full pressure at any port

Energized PTFE ball seats for extended cycle life and reduced torque

Leak free triple PTFE/Viton stem seal design

Certified per NSF372 and NSF61 for use with potable/drinking water

Pneumatic/Manual Actuator Standard Features

Integrated handwheel for manual operation

Quarter turn rack & pinion design

Highly visible valve position indicator

Dry or lubricated pilot air

Factory lubricated for normal life

Anodized aluminum body with epoxy-polyester coated end covers

Namur & ISO mounting

ATEX approved

Options (see Accessories tab)
