1" Pneumatic/Manual Brass Ball Valve - Spring Return
Stock #
545408
Series
5454
List Price: $508.00
Price: $406.40
- Buy 3 for $365.76 each
Usually Ships: Same Day

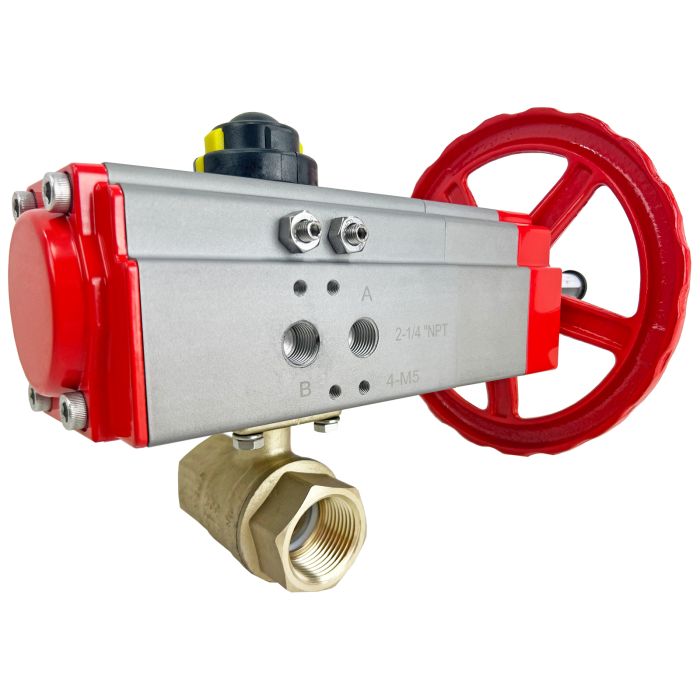

Valworx 545408 pneumatic/manual lead free brass ball valves are used for on-off control of air, water, oil, and other media compatible with the materials of construction. The de-clutch option can be used for manual operation or to set a limit stop for opening or closing. Ideal where lead free and NSF approved construction are required for potable drinking water as well as other industrial applications. Spring return actuators use an air pressure signal (80-120 PSI) to open and springs to close the valve. The valve will fail closed upon loss of air signal. Actuator has standard ISO/Namur interface for mounting optional direct mount solenoid valve and other accessories. These actuated ball valves can be mounted in any orientation. High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Advantages of pneumatic/manual ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path, reduced water hammer, and use in hazardous environments.
Ball Valve Standard FeaturesDirect mount lead free brass valve Full Port for unrestricted flow 316 stainless steel ball and stem Energized PTFE ball seats for lower torque and extended cycle life Leak free triple PTFE/Viton stem seal design Certified per NSF372 and NSF61 for use with potable/drinking water
Pneumatic/Manual Actuator Standard FeaturesIntegrated handwheel for manual operation Quarter turn rack & pinion design Highly visible valve position indicator Dry or lubricated pilot air Factory lubricated for normal life Anodized aluminum body with epoxy-polyester coated end covers Namur & ISO mounting ATEX approved
Options (see Accessories tab)
Advantages of pneumatic/manual ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path, reduced water hammer, and use in hazardous environments.
Ball Valve Standard Features
Pneumatic/Manual Actuator Standard Features
Options (see Accessories tab)
| Type | Pneumatic/Manual Brass Ball Valve- Spring Return |
|---|---|
| Cycle Time | Approx. 1/1 second open/close per 90° rotation |
| Pipe Size (in)-Specs | 1" NPT female |
| Full Port Orifice Size (inches) | 1.00 |
| Cv | 60 |
| Pressure Rating | 600 PSI (see P/T chart), 25 PSI saturated steam with high temp kit, vacuum up to 29 InHg |
| Valve Temperature Range | -4 to 366°F (-20 to 186°C) |
| Actuator Temperature Range | -4 to 176°F (-20 to 80°C) |
| Valve Body-Specs | Lead Free Brass C69300 |
| Ball/Stem Material | 316 Stainless Steel |
| Ball Seat Material | PTFE/ Viton |
| Stem Seal Material | PTFE/ Viton |
| Enclosure Protection | IP67 weatherproof |
| Pilot Air Pressure (PSI) | 80-120 |
| Air Consumption (SCI per 90° cycle) | 24.4 |
| Air Connections | 1/4" NPT |
| Actuator Seals | NBR |
| Max Fluid Velocity | 10 feet per second |
Accessories
Direct Mount Solenoid Valves
-
-
-
ISO DIN Plug with 16ft Cable for Solenoid ValvesStock #: 588013Usually Ships: Same DayPrice: $31.92
Limit Switch
Digital Smart Positioner
Electro-Pneumatic Positioner
High Temperature Mounting Kit
