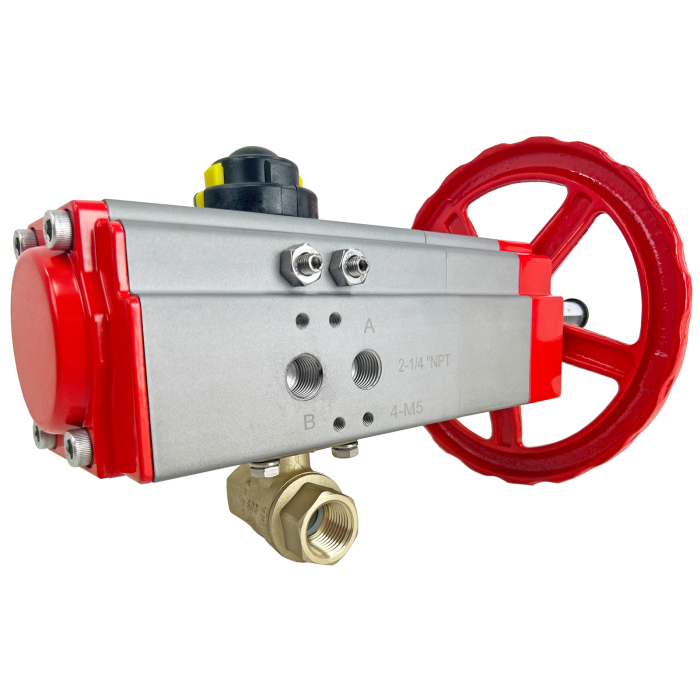

1/2" Pneumatic/Manual Brass Ball Valve - Double Acting

Valworx 545304 pneumatic/manual lead free brass ball valves are used for on-off control of air, water, oil, and other media compatible with the materials of construction.The de-clutch option can be used for manual operation or to set a limit stop for opening or closing. Ideal where lead free and NSF approved construction are required for potable drinking water as well as other industrial applications. Double acting actuators use an air pressure signal (80-120 PSI) to open and close the valve. Actuator has standard ISO/Namur interface for mounting optional direct mount solenoid valve and other accessories. These actuated ball valves can be mounted in any orientation. High temperature valve mounting kit available for extended temperature range or wall mounting applications.

Advantages of pneumatic/manual ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path, reduced water hammer, and use in hazardous environments.

Ball Valve Standard Features

Direct mount lead free brass valve

Full Port for unrestricted flow

316 stainless steel ball and stem

Energized PTFE ball seats for lower torque and extended cycle life

Leak free triple PTFE/Viton stem seal design

Certified per NSF372 and NSF61 for use with potable/drinking water

Pneumatic/Manual Actuator Standard Features

Integrated handwheel for manual operation

Quarter turn rack & pinion design

Highly visible valve position indicator

Dry or lubricated pilot air

Factory lubricated for normal life

Anodized aluminum body with epoxy-polyester coated end covers

Namur & ISO mounting

ATEX approved

Options (see Accessories tab)
