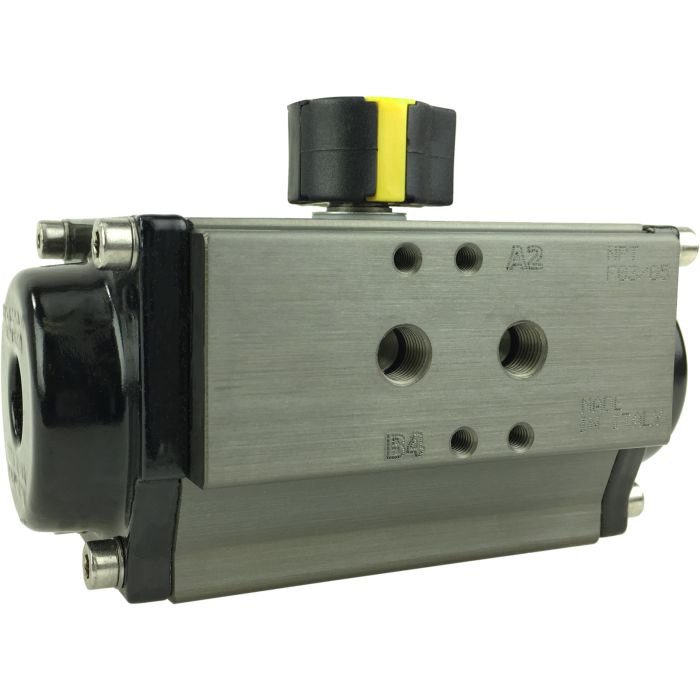

Double Acting Air Actuator DA50
SKU
530050
Series
5300
List Price: $288.40
Price:
$230.72
- Buy 3 for $207.65 each and save 10%
Valworx 530050 rugged rack and pinion air actuators are typically used to operate quarter turn ball valves, butterfly valves, plug valves and dampers. Quick and easy to install with standard ISO5211 valve mounting pad and double square female output drive. Double acting actuators use air pilot pressure to open and air pilot pressure to close. The pilot air is typically controlled by a 4-way type manual or solenoid valve.
An optional pilot solenoid valve can be mounted directly to the side of the actuator using the standard Namur interface saving time, space and plumbing. The solenoid valve when supplied with the required pilot air pressure will allow electrical operation of the actuator.
Pneumatic Actuator Standard FeaturesPrelubricated and tested to minimum 1 million cycles Rugged rack & pinion design ISO5211 valve mounting pad Highly visible valve position indicator Dry or lubricated pilot air Corrosion resistance - 500 hour minimum salt spray test Aluminum body with 50 micron hard anodizing Polyester powder coated aluminum end covers Namur mounting pad for direct mounted solenoid valves VDI/VDE 3845 mounting for top mounted accessories
Options (see Accessories tab)
An optional pilot solenoid valve can be mounted directly to the side of the actuator using the standard Namur interface saving time, space and plumbing. The solenoid valve when supplied with the required pilot air pressure will allow electrical operation of the actuator.
Pneumatic Actuator Standard Features
Options (see Accessories tab)
| Body | ASTM 6063 extruded aluminum, 50 micron anodizing |
|---|---|
| End Covers | ASTM B179 aluminum, 60-80 micron polyester coating |
| Output Drive | 9mm female double square |
| Pilot Air Connections | 1/8" NPT |
| Pilot Air Pressure | 120 PSI max. (8 Bar) |
| Pilot Solenoid Mounting | Namur mounting pad per VDI/VDE 3845 |
| Pilot Media | Filtered, dry or lubricated compressed air |
| Position Indicator | Glass filled polyamide |
| Rotation | 90° (quarter turn) |
| Rotation Adjustment | +/- 5° each direction |
| Seals | NBR |
| Shaft | Carbon steel, 20 micron nickel plated |
| Size | DA50 |
| Temperature Range | -4 to 180 °F (-20 to 82 °C) |
| Top Accessory Mounting | Namur mounting per VDI/VDE 3845 |
| Type | Double Acting Pneumatic Actuator |
| Torque | 150 inch lbs 80 PSI see torque chart (18.5 Nm 6 Bar) |
| Valve Mounting ISO5211 | F03/F05 |
