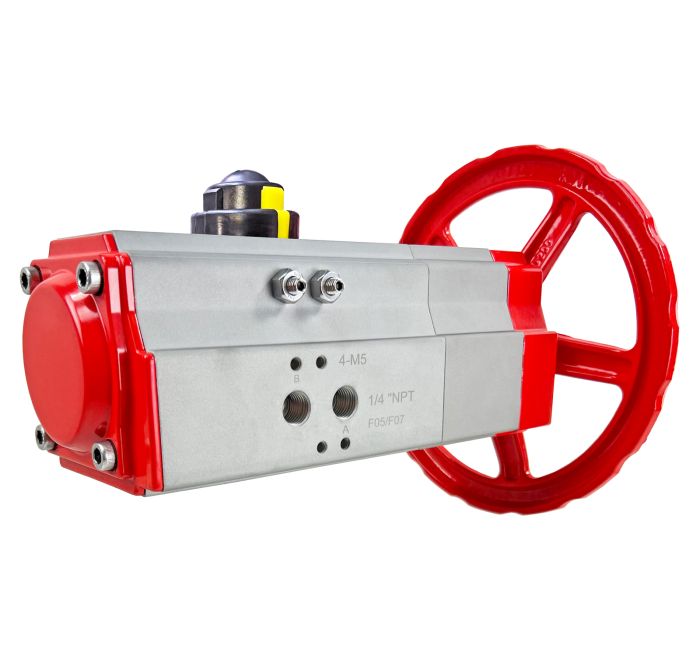

Pneumatic/Manual Combo Actuator DA63
SKU
531063
Series
5310
List Price: $404.00
Price:
$323.20
- Buy 3 for $290.88 each and save 10%
Valworx 531063 Pneumatic/Manual combination actuators are used to operate quarter turn ball valves, butterfly valves, plug valves and dampers. Multi-function actuator operates pneumatically, manually, or stroke limited where the stroke can be set to limit close or limit open using the integrated handwheel.
Quick and easy to install with standard ISO5211 valve mounting pad and double square female output drive. Double acting actuators use air pilot pressure to open and air pilot pressure to close. The pilot air is typically controlled by a 4-way type manual or solenoid valve.
An optional pilot solenoid valve can be mounted directly to the side of the actuator using the standard Namur interface saving time, space and plumbing. The solenoid valve when supplied with the required pilot air pressure will allow electrical operation of the actuator.
Pneumatic/Manual Combo Actuator Standard FeaturesIntegrated handwheel for manual operation Rugged rack & pinion design ISO5211 valve mounting pad Highly visible valve position indicator Dry or lubricated pilot air Aluminum body with 30 micron hard anodizing Polyester powder coated aluminum end covers Namur mounting pad for direct mounted solenoid valves VDI/VDE 3845 mounting for top mounted accessories ATEX rated per 2014/34/EU
Options (see Accessories tab)
Quick and easy to install with standard ISO5211 valve mounting pad and double square female output drive. Double acting actuators use air pilot pressure to open and air pilot pressure to close. The pilot air is typically controlled by a 4-way type manual or solenoid valve.
An optional pilot solenoid valve can be mounted directly to the side of the actuator using the standard Namur interface saving time, space and plumbing. The solenoid valve when supplied with the required pilot air pressure will allow electrical operation of the actuator.
Pneumatic/Manual Combo Actuator Standard Features
Options (see Accessories tab)
| Body | ASTM 6005 T5 extruded aluminum, 35 micron anodizing |
|---|---|
| Enclosure Protection | IP67 Weatherproof |
| End Covers | Die-cast aluminum, 40 micron polyester coating |
| Output Drive | 14mm female double square |
| Pilot Air Connections | 1/4" NPT |
| Pilot Air Pressure (Max) | 120 PSI (8 Bar) |
| Pilot Air Pressure (Min.) | 29 PSI (2 Bar) |
| Pilot Solenoid Mounting | Namur mounting pad per VDI/VDE 3845 |
| Pilot Media | Filtered, dry or lubricated compressed air |
| Position Indicator | ABS plastic |
| Rotation | 90° (quarter turn) |
| Rotation Adjustment | +/- 5° each direction |
| Seals | NBR |
| Shaft | Alloy steel |
| Size | DA63 |
| Stroke Limit Function | Open or Close |
| Temperature Range | -4 to 176 °F (-20 to 80 °C) |
| Top Accessory Mounting | Namur mounting per VDI/VDE 3845 |
| Type | Double Acting Pneumatic/Manual Combo Actuator |
| Torque | 346.1 inch lbs @ 87 PSI see torque chart (39.1 Nm @ 6 Bar) |
| Valve Mounting ISO5211 | F05/F07 |
