1-1/2" Electric 150# Flanged SS Ball Valve, 24-240V
SKU
563812E
Series
5638
List Price: $1,384.87
Price:
$1,107.90
- Buy 3 for $997.11 each and save 10%

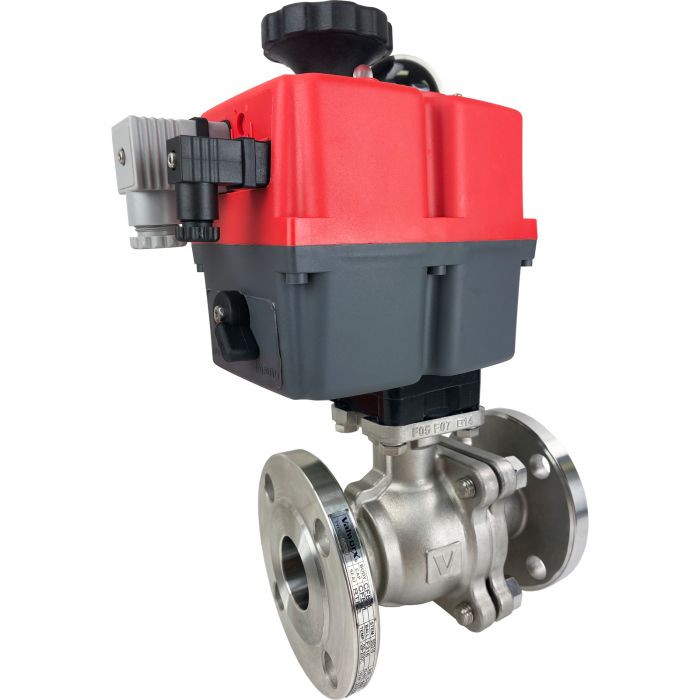

Valworx 563812E electric actuated 2-piece 150# flanged stainless steel ball valves for on-off control of water, air, oil, and other media compatible with the materials of construction. Full port investment cast valve direct mounts to the actuator with standard ISO5211 mounting pad. Dual-certified fire-safe/low emission valve made of 316 stainless steel mounts between standard ANSI 150 pound pipe flanges. Standard unit is power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a flat gear system rotates the ball valve. The motor is stopped by internal cams striking micro switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position. High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard FeaturesANSI Class 150# flanged Direct mounting valve per ISO5211 Full port for unrestricted flow 316 stainless steel body, ball and stem Blow out proof stem RTFE ball seats extend cycle life Braided graphite/Viton stem seal design, live loaded and adjustable
Electric Actuator Standard FeaturesHighly visible LED light gives continuous actuator status indication Multi-voltage capable with auto-voltage sensing Electronic torque limiter - protects against valve jams Anti-condensation heater Manual override with dome style visual valve position indicator All electrical connections via external DIN plugs (included) - no need to remove cover Two dry contact limit switches used to confirm open/closed valve position Rugged IP67 weatherproof housing, CE marked
Options (see Accessories tab)
Ball Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Actuator Temperature Range | -4 to 158 °F (-20 to 70 °C) |
|---|---|
| Anti-Condensation Heater | 4 watts thermostatically controlled |
| Ball | 316 Stainless Steel |
| Ball Seats | RTFE (reinforced Teflon) |
| Current Rating | 0.43A @ 110VAC, 0.21A @ 240VAC, 1.98A @ 24VAC 1.63A @ 24VDC (full load amps) |
| Cycle Time | 13 seconds per 90° rotation (+/-10% no load) |
| Duty Cycle | 75% |
| Electrical Connections | DIN plugs with cable entry - included (optional 1/2" conduit or prewired cables) |
| Enclosure | Corrosion resistant polyamide, UV protection |
| Enclosure Rating | IP67 Weatherproof |
| Fire Safe | API 607 |
| Flange Dimensions | ANSI B16.5 Class 150 |
| Flange Face to Face | ANSI B16.10 Class 150 |
| Low Emission | API 641 |
| Manual Override | Hand knob |
| Max Fluid Velocity | 10 feet per second |
| Motor Protection | Electronic over-torque with LED status light |
| Pipe Size | 1-1/2 inch ANSI 150# Flanged (RF) |
| Pipeline Use | API 608 |
| Port Size | Full Port, Orifice 1.50 inches, Cv 125 |
| Pressure (Max) | 275 PSI CWP non-shock (see P/T chart), 25 PSI steam with kit, vacuum 29inHg |
| Stem Seals | Braided Graphite/ FKM (Viton) |
| Stem Packing | API 622 |
| Type | Electric Actuated Flange Valve- Multivoltage |
| Valve Body | 316 Stainless Steel |
| Valve Position Confirmation | 2 x SPST auxiliary limit switches rated 3A@125/250VAC,30VDC resistive load |
| Valve Temperature Range | -4 to 356 °F (-20 to 180 °C) |
| Voltage | 24 to 240 Volt AC or DC (1 ph, auto-voltage sensing) |
