2" Electric 150# Flanged SS Ball Valve, 24-240V
Stock #
563816E
Series
5638
List Price: $1,700.92
Price: $1,360.74
- Buy 3 for $1,224.66 each
Usually Ships: Same Day

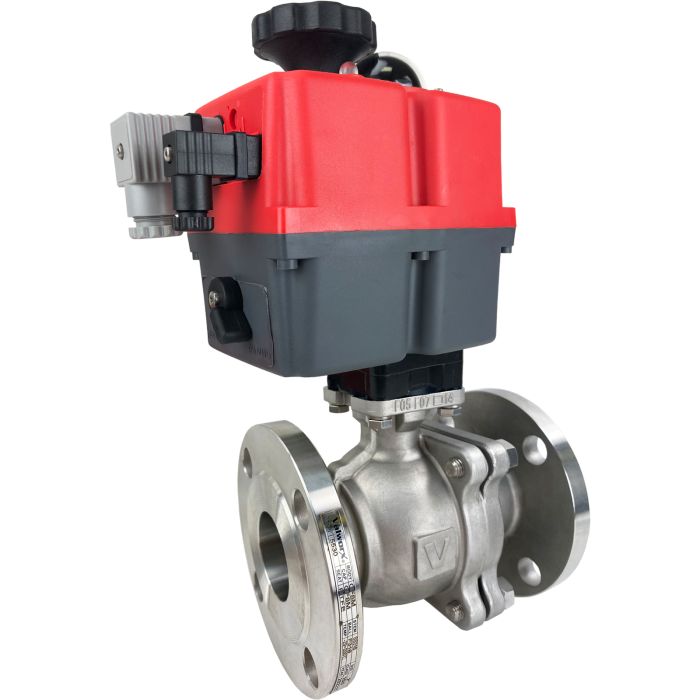

Valworx 563816E electric actuated low emission 2-piece 150# flanged stainless steel ball valves for on-off control of oil & gas, water, air and other media compatible with the materials of construction. Dual-certified fire-safe/low emission valve made of 316 stainless steel mounts between standard ANSI 150 pound pipe flanges. Standard unit is power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a flat gear system rotates the ball valve. The motor is stopped by internal cams striking micro switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position. High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard FeaturesANSI Class 150# flanged Direct mounting valve per ISO5211 Full port for unrestricted flow 316 stainless steel body, ball and stem Blow out proof stem RTFE ball seats extend cycle life Braided Graphite/Viton stem seal design, live loaded and adjustable
Electric Actuator Standard FeaturesHighly visible LED light gives continuous actuator status indication Multi-voltage capable with auto-voltage sensing Electronic torque limiter - protects against valve jams Anti-condensation heater Manual override with dome style visual valve position indicator All electrical connections via external DIN plugs (included) - no need to remove cover Two dry contact limit switches used to confirm open/closed valve position Rugged IP67 weatherproof housing, CE marked
Options (see Accessories tab)
Ball Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Type | Electric Actuated Flange Valve- Multivoltage |
|---|---|
| Actuator Voltage | 24- 240 VAC/DC (50/60Hz) auto-voltage sensing |
| Current Rating | 0.43A @ 110VAC, 0.21A @ 240VAC, 1.98A @ 24VAC 1.63A @ 24VDC (full load amps) |
| Cycle Time | 13 seconds per 90° rotation |
| Duty Cycle | 75% |
| Pipe Size (in)-Specs | 2" ANSI Class 150# Flanged (RF) |
| Full Port Orifice Size (inches) | 2.00 |
| Cv | 240 |
| Pressure Rating | 275 PSI (see P/T chart), 25 PSI saturated steam with high temp kit, vacuum up to 29.91 InHg (3.7 x 10-1 Torr) |
| Valve Temperature Range | -4 to 392°F (-20 to 200°C) |
| Actuator Temperature Range | -4 to 158°F (-20 to 70°C) |
| Valve Body/Ball | 316 SS |
| Body/Ball Material | 316 Stainless Steel |
| Ball Seat Material | RTFE (reinforced Teflon) |
| Stem Seal Material | Braided Graphite/ FKM (Viton) |
| Enclosure | Anti-corrosion polyamide, UV protection, SS fasteners |
| Electrical Connections | DIN plugs with cable entry (optional 1/2" conduit plugs or pre-wired cable) |
| Valve Position Confirmation | 2 x SPST auxiliary limit switches rated 3A@125/250VAC, 30VDC resistive load |
| Valve Position Indicator | Dome Indicator |
| Manual Override | Hand knob |
| Motor Protection | Electronic over-torque with LED status light |
| Anti-Condensation Heater | 4 watts thermostatically controlled |
| Low Emission Approval | API 641 |
| Fire Safe Approval | API 607 |
| Pipeline Use Approval | API 608 |
| Stem Packing Approval | API 622 |
| Flange Dimensions | ANSI B16.5 Class 150 |
| Flange Face to Face | ANSI B16.10 Class 150 |
| Max Fluid Velocity | 10 feet per second |
Accessories
Digital Positioner System
-
5610E DPS-Digital Positioner System Kit 4-20mA - InstalledStock #: 561101EUsually Ships: Same DayPrice: $400.54 -
5610E DPS-Digital Positioner System Kit 0-10v - InstalledStock #: 561102EUsually Ships: Same DayPrice: $400.54
Failsafe Battery Kit
-
5610E BSR-NC Failsafe Battery Kit - InstalledStock #: 561104EUsually Ships: Same DayPrice: $422.76 -
5610E BSR-NO Failsafe Battery Kit - InstalledStock #: 561105EUsually Ships: Same DayPrice: $422.76
Connectors & Cables
-
-
Sub-Micro DIN Connector 1/2" Conduit ConnectionStock #: 588003Usually Ships: Same DayPrice: $14.64 -
-
Sub-Micro DIN Plug Connector with 16 foot CableStock #: 588007AUsually Ships: Same DayPrice: $28.32
High Temperature Mounting Kit
-
2" Stainless ANSI 150# Flanged Ball Valve - ISO Direct MountStock #: 553016AUsually Ships: Same DayPrice: $696.38 -
