1-1/4" Electric 3-way Brass L-Diverter Valve 24-240V
SKU
568210C
Series
5682
List Price: $966.71
Price:
$773.37
- Buy 3 for $696.03 each and save 10%

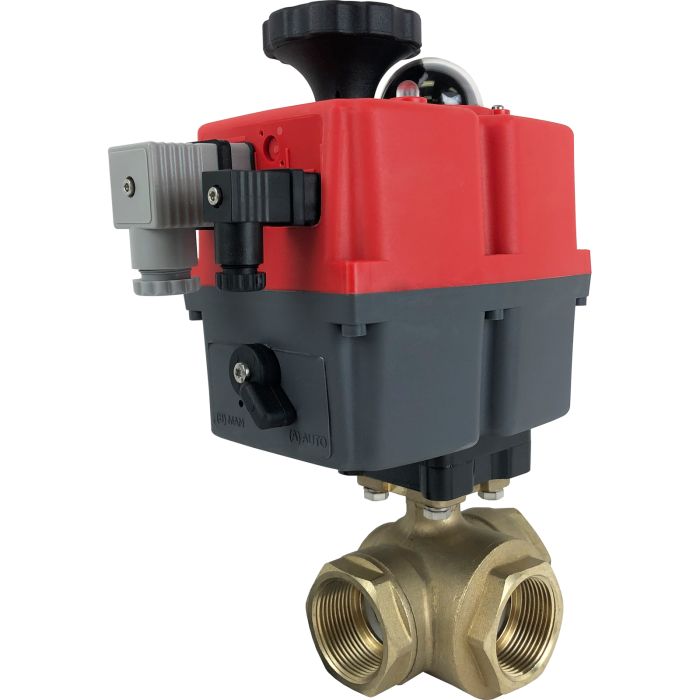

Valworx 568210C electric actuated 3-way L-port lead free ball valve is used to control the flow of water, air, oil, and other media compatible with the materials of construction. Ideal where lead free and NSF approved construction are required for potable drinking water as well as other industrial applications. These FULL PORT valves can be used as either a diverter valve or selector valve. There is no flow shutoff position with this type valve. Actuator uses power-to-open (position 2) and power-to-close (position 1), stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a self-locking gear drive rotates the ball one quarter turn. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.
The ball valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Anti-condensation heater will help protect actuator against damage caused by condensation. Two limit switches are provided to confirm valve position. Manual override can be used to operate valve during setup or with loss of electrical power.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Advantages of electric actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, full port flow path, and reduced water hammer.
Ball Valve Standard FeaturesDirect mount lead free brass valve Full Port for unrestricted flow 316 stainless steel ball and stem Four ball seat design allows for full pressure at any port Energized PTFE ball seats for extended cycle life and reduced torque Leak free triple PTFE/Viton stem seal design Certified per NSF372 and NSF61 for use with potable/drinking water
Electric Actuator Standard FeaturesMulti-voltage capable with auto-voltage sensing Electronic torque limiter Anti-condensation heater LED light gives continuous actuator status indication Manual override with visual valve position indicator Electrical connections via DIN plugs (included) Two dry contact limit switches used to confirm valve position IP65 weatherproof enclosure
Options (see Accessories tab)
The ball valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Anti-condensation heater will help protect actuator against damage caused by condensation. Two limit switches are provided to confirm valve position. Manual override can be used to operate valve during setup or with loss of electrical power.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Advantages of electric actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, full port flow path, and reduced water hammer.
Ball Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Actuator Temperature Range | -4 to +158 °F (-20 to +70 °C) |
|---|---|
| Anti-Condensation Heater | 4 watts thermostatically controlled |
| Ball and Stem | 316 Stainless Steel |
| Ball Seats | PTFE (Teflon) energized with FKM (Viton) |
| Current Rating | 0.43A 110VAC, 0.21A 240VAC, 1.98A 24VAC 1.63A 24VDC (full load amps) |
| Cycle Time | 13 seconds per 90° rotation (no load) |
| Duty Cycle | 0.75 |
| Electrical Connections | DIN plugs with cable entry (included), optional 1/2" conduit plugs |
| Enclosure | Anti-corrosive polyamide, SS fasteners |
| Enclosure Rating | IP67 weatherproof, UV protection |
| Manual Override | Hand knob |
| Motor Protection | Electronic over-torque with LED status light |
| Pipe Size | 1-1/4" NPT female |
| Port Size | Full Port, orifice 1.22 inches, Cv 31 |
| Pressure (Max) | 400 PSI CWP non-shock (see P/T chart), 25 PSI steam with high temp. kit, vacuum service to 29" Hg |
| Stem Seals | PTFE (Teflon) with dual FKM (Viton) seals |
| Type | 3-way L-port Diverter or Selector |
| Valve Body | Lead Free Brass C69300 |
| Valve Position Confirmation | 2 x SPST auxiliary limit switches rated 3A 125/250VAC,30VDC resistive load |
| Valve Temperature Range | 0 to 344 °F (-18 to 173 °C) |
| Voltage | 24 to 240 Volts AC or DC (1ph, 50/60 Hz) auto voltage sensing |
Digital Positioner System
-
5610E DPS-Digital Positioner System Kit 4-20mA - InstalledStock #: 561101EUsually Ships: Same DayPrice: $400.54 -
5610E DPS-Digital Positioner System Kit 0-10v - InstalledStock #: 561102EUsually Ships: Same DayPrice: $400.54
Failsafe Battery Kit
-
5610E BSR-NC Failsafe Battery Kit - InstalledStock #: 561104EUsually Ships: Same DayPrice: $422.76 -
5610E BSR-NO Failsafe Battery Kit - InstalledStock #: 561105EUsually Ships: Same DayPrice: $422.76
Connectors & Cables
-
-
Sub-Micro DIN Connector 1/2" Conduit ConnectionStock #: 588003Usually Ships: Same DayPrice: $14.64 -
-
Sub-Micro DIN Plug Connector with 16 foot CableStock #: 588007AUsually Ships: Same DayPrice: $28.32
High Temperature Mounting Kit
-
-
Electric Actuator 486 in.lbs (55Nm), 24-240VStock #: 561055EUsually Ships: Same DayPrice: $596.16
