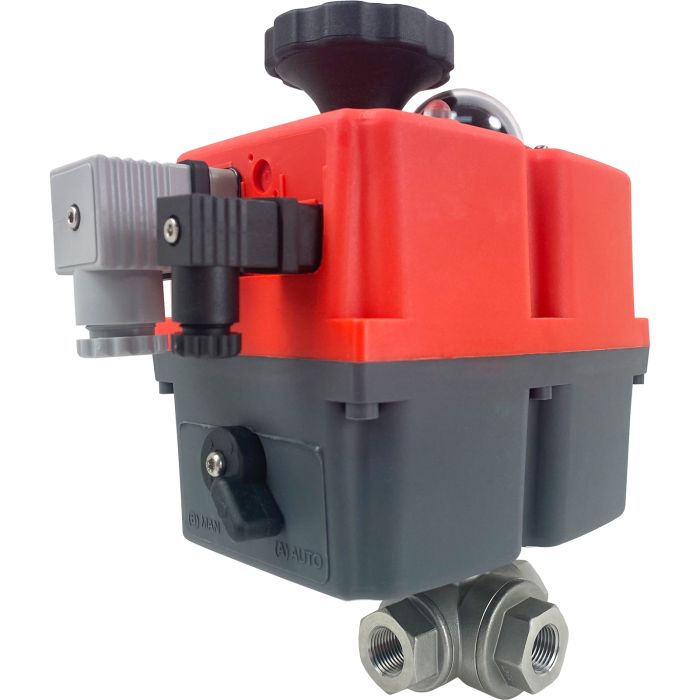

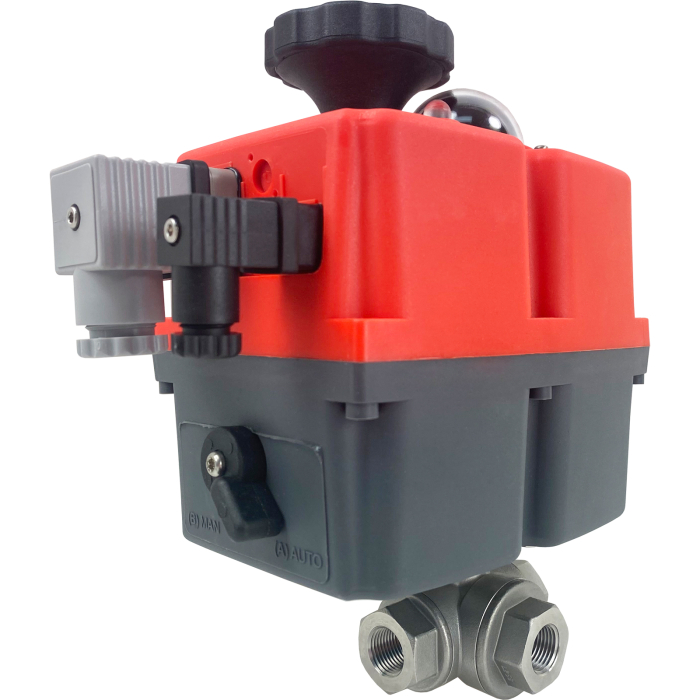

3/8" Electric 3-Way Stainless L-Diverter Valve 24-240V
SKU
560803J
Series
5608
List Price: $718.43
Price:
$574.74
- Buy 3 for $517.27 each and save 10%
Valworx 560803J electric actuated 3-way L-port stainless steel ball valve is used to control the flow of water, air, oil, and other media compatible with the materials of construction. These FULL PORT valves can be used as either a diverter valve or selector valve. Actuator uses power-to-open (position 2) and power-to-close (position 1), stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a self-locking gear drive rotates the ball one quarter turn. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.
The ball valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Anti-condensation heater will help protect actuator against damage caused by condensation. Two limit switches are provided to confirm valve position. Manual override can be used to operate valve during setup or with loss of electrical power.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Advantages of electric actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, full port flow path, and reduced water hammer.
Ball Valve Standard Features1000 PSI working pressure (see P/T chart) Full port design 316 stainless steel body, ball and stem Four ball seat design allows for full pressure at any port RTFE ball seats for extend cycle life Triple PTFE/Viton stem seal design, live loaded and adjustable Valve direct mounts to actuator per ISO5211
Electric Actuator Standard FeaturesMulti-voltage with auto-voltage sensing Electronic over torque protection Anti-condensation heater External LED diagnostic light Manual override Highly visual valve position indicator Electrical connections via DIN plug connectors (included) Auxiliary limit switches used to confirm valve positions Corrosion resistant polyamide IP67 weatherproof enclosure
Options (see Accessories tab)
The ball valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Anti-condensation heater will help protect actuator against damage caused by condensation. Two limit switches are provided to confirm valve position. Manual override can be used to operate valve during setup or with loss of electrical power.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Advantages of electric actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, full port flow path, and reduced water hammer.
Ball Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Actuator Temperature Range | -4 to +158 °F (-20 to +70 °C) |
|---|---|
| Anti-Condensation Heater | 4 watts thermostatically controlled |
| Ball and Stem | 316 Stainless Steel |
| Ball Seats | PTFE (Teflon) |
| Current Rating | 0.3A @ 110VAC, 0.16A @ 240VAC, 1.28A @ 24VAC, 0.97A @ 24VDC (full load amps) |
| Cycle Time | 9 seconds per 90° rotation (+/-10% no load) |
| Duty Cycle | 75% |
| Electrical Connections | DIN plugs with cable entry (included), optional 1/2" conduit plugs |
| Enclosure | Anti-corrosive polyamide, SS fasteners |
| Enclosure Rating | IP67 weatherproof, UV protection |
| Manual Override | Hand knob |
| Max Fluid Velocity | 10 feet per second |
| Motor Protection | Electronic over-torque with LED status light |
| Pipe Size | 3/8" NPT female |
| Port Size | Full Port, orifice 0.43 inches, Cv 7.3 |
| Pressure (Max) | 1000 PSI CWP non-shock (see P/T chart), 25 PSI steam with high temp. kit, vacuum service to 29" Hg |
| Stem Seals | PTFE (Teflon)/ Viton |
| Type | 3-way L-Port Diverter or Selector Valve |
| Valve Body | 316 Stainless Steel |
| Valve Position Confirmation | 2 x SPST auxiliary limit switches rated 3A@125/250VAC, 30VDC resistive load |
| Valve Temperature Range | -4 to 392 °F (-20 to 200 °C) |
| Voltage | 24 to 240 Volts AC or 24 to 135 Volts DC (1 ph, 50/60 Hz) auto voltage sensing |
