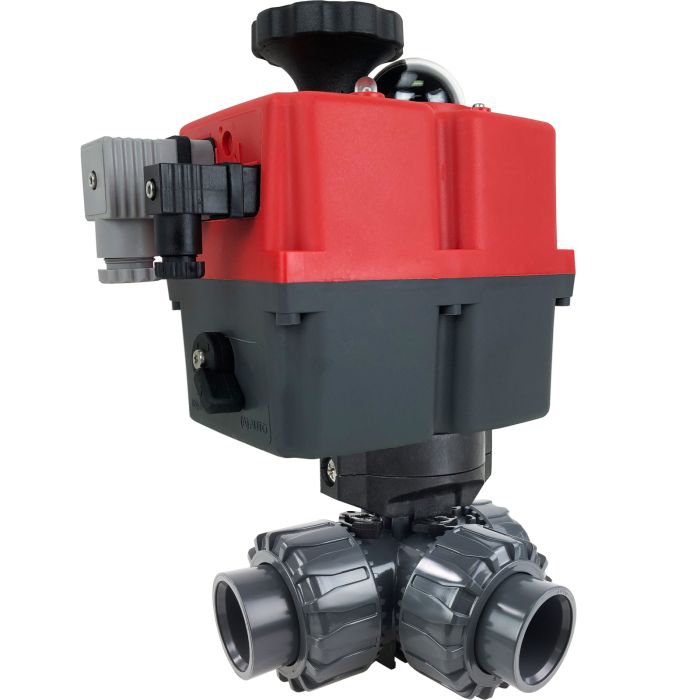

1" Electric 3-way T-Port PVC Ball Valve PTFE/EPDM, 24-240V
SKU
562808C
Series
5628
List Price: $774.59
Price:
$619.67
- Buy 3 for $557.70 each and save 10%
Valworx 562808C electric actuated 3-way T-port PVC ball valves are typically used to control the flow of water and other liquid media compatible with the materials of construction (not suitable for air or gas). Ideal for applications where NSF certified construction is required for potable drinking water as well as other industrial diverter valve applications. Actuator uses power-to-open (position 2) and power-to-close (position 1), stays in the last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a flat gear system rotates the ball valve. The motor is automatically stopped by an internal cam striking a limit switch. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position. Typical applications include industrial/process piping, pulp and paper, food processing, water treatment and irrigation.
Ball Valve Standard FeaturesIndustrial grade full port PVC ball valve Tru Union nuts with locking device prevents back-off Energized PTFE ball seats for lower torque and extended life Leak free dual stem seal design Micro-adjustable ball seat carrier Pressure rated 232 PSI at 73°F Series 5514 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for potable drinking water Includes IPS glue sockets and NPT end connectors
Electric Actuator Standard FeaturesAnti-corrosive polyamide IP67 weatherproof enclosure External LED diagnostic light Multi-voltage with auto-voltage sensing Electronic over-torque protection Anti-condensation heater Manual override Highly visual valve position indicator Electrical connections by DIN plug connectors (included) Auxiliary limit switches to confirm open/closed valve position CE marked
Options (see Accessories tab)
Ball Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Actuator Temperature Range | -4 to 158 °F (-20 to 70 °C) |
|---|---|
| Anti-Condensation Heater | 4 watt thermostatically controlled |
| Ball and Stem | PVC |
| Ball Seats | PTFE (Teflon) energized with EPDM seals |
| Current Rating | 0.3A 110VAC, 0.16A 240VAC, 1.28A 24VAC 0.97A 24VDC (full load amps) |
| Cycle Time | 9 seconds per 90° rotation (+/- 10% no load) |
| Duty Cycle | 0.75 |
| Electrical Connections | DIN plugs with cable entry (included), optional 1/2" conduit plugs |
| Enclosure | Anti-corrosive polyamide, SS fasteners |
| Enclosure Rating | IP67 weatherproof, UV protection |
| Manual Override | Hand knob |
| Motor Protection | Electronic over-torque with LED status light |
| Pipe Size | 1 inch (both IPS glue socket and NPT end connectors included) |
| Port Size | Full Port, Cv 17 |
| Pressure Rating | 232 PSI (16 Bar) see P/T chart, Vacuum 29"Hg Not suitable for air or gas |
| Stem Seals | Dual EPDM seals |
| Type | 3-way T-port Diverter Function |
| Valve Body | PVC |
| Valve Position Confirmation | 2 x SPDT auxiliary limit switches rated 3A 125/250VAC, 30VDC resistive load |
| Valve Temperature Range | 32-140 °F (0 to 60 °C) |
| Voltage | 24 to 240 Volts AC or DC (1ph, 50/60Hz) auto voltage sensing |
Digital Positioner System
-
5610E DPS-Digital Positioner System Kit 4-20mA - InstalledStock #: 561101EUsually Ships: Same DayPrice: $400.54 -
5610E DPS-Digital Positioner System Kit 0-10v - InstalledStock #: 561102EUsually Ships: Same DayPrice: $400.54
Failsafe Battery Kit
-
5610E BSR-NC Failsafe Battery Kit - InstalledStock #: 561104EUsually Ships: Same DayPrice: $422.76 -
5610E BSR-NO Failsafe Battery Kit - InstalledStock #: 561105EUsually Ships: Same DayPrice: $422.76
Connectors & Cables
-
-
Sub-Micro DIN Connector 1/2" Conduit ConnectionStock #: 588003Usually Ships: Same DayPrice: $14.64 -
-
Sub-Micro DIN Plug Connector with 16 foot CableStock #: 588007AUsually Ships: Same DayPrice: $28.32
-
1" 3-Way T-port PVC Ball Valve - EPDM/Teflon SealsStock #: 551433Usually Ships: Same DayPrice: $183.10 -
Electric Actuator 177 in.lbs (20Nm), 24-240VStock #: 561020EUsually Ships: Same DayPrice: $415.66 -
-
-
-
Single Block Mechanism- 1 to 1-1/4 5514 SeriesStock #: R5514XX10Usually Ships: Same DayPrice: $22.10
