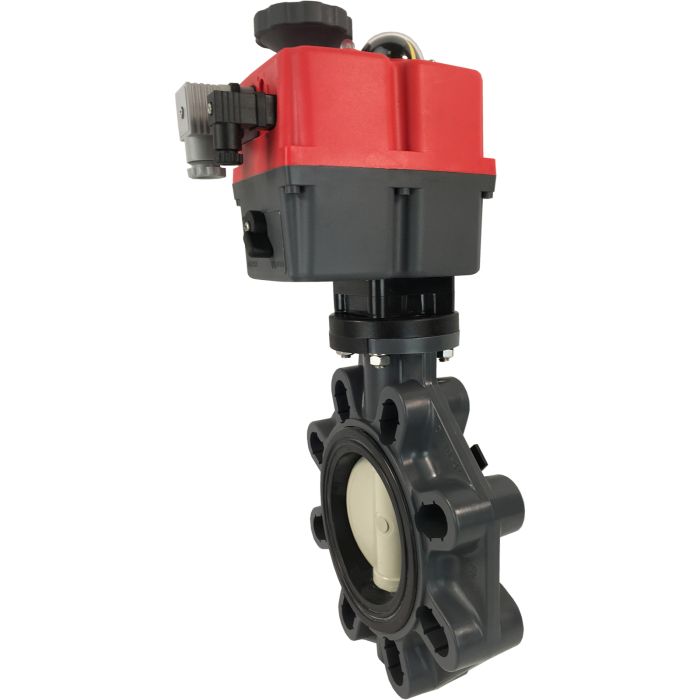

4" Electric Actuated PVC Butterfly Valve 24-240V
Stock #
540506
Series
5405
List Price: $1,327.01
Price: $1,061.61
- Buy 3 for $955.45 each
Usually Ships: Same Day
Valworx 540506 electric actuated PVC butterfly valves are typically used for on-off control of water and liquid media compatible with the materials of construction including potable water and lead-free applications. Actuator uses power to open and power to close, stays in the last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a flat gear system rotates the valve disc. The motor is automatically stopped by an internal cam striking a limit switch. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position. Typical applications include industrial/process piping, pulp and paper, food processing, water treatment and irrigation.
PVC butterfly valves should never be used for compressed gas applications.
Butterfly Valve Standard FeaturesIndustrial grade PVC butterfly valve Pressure rated 150 PSI at 73°F Polypropylene (PP) disc 316 stainless steel shaft Series 5402 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for potable drinking water
Electric Actuator Standard Features Anti-corrosive polyamide IP67 weatherproof enclosure External LED diagnostic light Multi-voltage with auto-voltage sensing Electronic over-torque protection Anti-condensation heater Manual override Highly visual valve position indicator Electrical connections by DIN plug connectors (included) Auxiliary limit switches to confirm open/closed valve position CE marked
Options (see Accessories tab)
PVC butterfly valves should never be used for compressed gas applications.
Butterfly Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Type | Electric Actuated PVC Butterfly Valve- Multivoltage |
|---|---|
| Actuator Voltage | 24- 240 VAC/DC (50/60Hz) auto-voltage sensing |
| Current Rating | 0.33A @ 110VAC, 0.18A @ 240VAC, 1.50A @ 24VAC 1.22A @ 24VDC (full load amps) |
| Cycle Time | 29 seconds per 90° rotation |
| Duty Cycle | 75% |
| Pipe Size (in)-Specs | 4" (DN100) |
| Disc Size (inches) | 3.94 |
| Suitable Flanges | ANSI B16.5 |
| Cv | 413 |
| Pressure Rating | 150 PSI |
| Valve Temperature Range | 32 to 140°F (0 to 60°C) |
| Actuator Temperature Range | -4 to 158°F (-20 to 70°C) |
| Valve Body-Specs | PVC |
| Disc | Polypropylene (PP) |
| Stem | 316 Stainless Steel |
| Enclosure | Anti-corrosion polyamide, UV protection, SS fasteners |
| Enclosure Protection | IP67 weatherproof, UV protection |
| Electrical Connections | DIN plugs with cable entry (optional 1/2" conduit plugs or pre-wired cable) |
| Valve Position Confirmation | 2 x SPDT auxiliary limit switches rated 3A@125/250VAC, 30VDC resistive load |
| Valve Position Indicator | Dome Indicator |
| Manual Override | Hand knob |
| Motor Protection | Electronic over-torque with LED status light |
| Anti-Condensation Heater | 4 watts thermostatically controlled |
Accessories
Digital Positioner System
-
5610E DPS-Digital Positioner System Kit 4-20mA - InstalledStock #: 561101EUsually Ships: Same DayPrice: $400.54 -
5610E DPS-Digital Positioner System Kit 0-10v - InstalledStock #: 561102EUsually Ships: Same DayPrice: $400.54
Failsafe Battery Kit
-
5610E BSR-NC Failsafe Battery Kit - InstalledStock #: 561104EUsually Ships: Same DayPrice: $422.76 -
5610E BSR-NO Failsafe Battery Kit - InstalledStock #: 561105EUsually Ships: Same DayPrice: $422.76
Connectors & Cables
-
-
Sub-Micro DIN Connector 1/2" Conduit ConnectionStock #: 588003Usually Ships: Same DayPrice: $14.64 -
-
Sub-Micro DIN Plug Connector with 16 foot CableStock #: 588007AUsually Ships: Same DayPrice: $28.32
