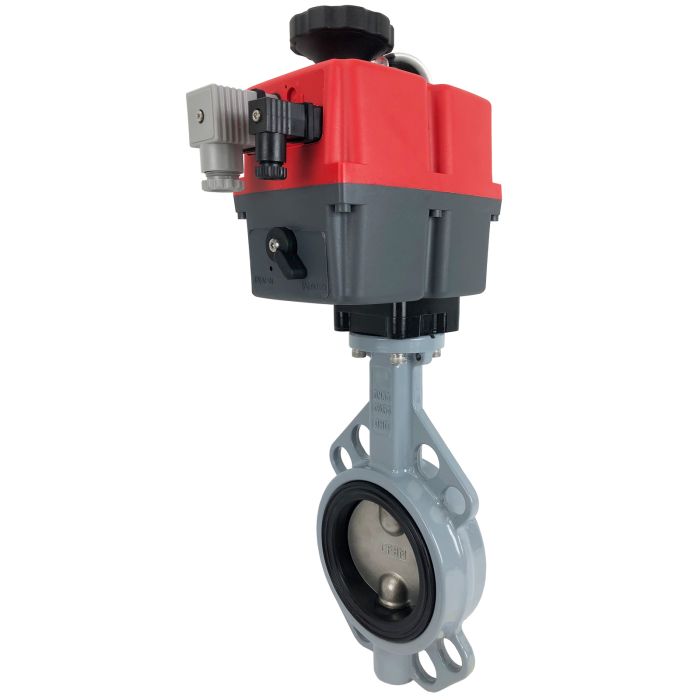

3" Electric Actuated Butterfly Valve, Wafer, EPDM, 24-240V
SKU
562604C
Series
5626
List Price: $958.13
Price:
$766.50
- Buy 3 for $689.85 each and save 10%
Valworx 562604C electric actuated soft seated butterfly valve for on-off control of water and other media compatible with the materials of construction. Wafer style valve sandwich mounts between standard ANSI / ASME Class 125 / 150 flanges. Standard unit is power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a flat gear system rotates the disc. The motor is automatically stopped by internal cams striking micro switches at both open and closed positions. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.
Butterfly Valve Standard FeaturesRugged epoxy coated ductile iron body with stainless steel disc for maximum corrosion resistance Unique wave line seat and special disc shape reduces the torque required to turn the valve and extends the seal life Lower torque also reduces the size of the actuator, lowering the cost of the valve assembly Two piece shaft design enhances the flow capacity of the valve Valves direct mount to actuator with standard ISO5211 international standards
Electric Actuator Standard FeaturesHighly visible LED light gives continuous actuator status indication Multi-voltage capable with auto-voltage sensing Electronic torque limiter - protects against valve jams without causing damage to the actuator Standard anti-condensation heater Manual override with visual dome style valve position indicator All electrical connections via external DIN plugs (included) - no need to remove cover for wiring or service Two auxiliary dry contact limit switches for confirming open/closed valve position Rugged IP67 dust and watertight enclosure, CE marked
Options (see Accessories tab)
Butterfly Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Actuator Temperature Range | -4 to 158 °F (-20 to +70 °C) |
|---|---|
| Anti-Condensation Heater | 4 watts |
| Current Rating | 0.43A 110VAC, 0.21A 240VAC, 1.98A 24VAC 1.63A 24VDC (full load amps) |
| Cycle Time | 13 seconds per 90° rotation |
| Disc | 316 Stainless Steel |
| Disc Seat/Liner | EPDM |
| Duty Cycle | 75% duty cycle |
| Electrical Connections | DIN plug with round cable entry (optional 1/2" conduit plugs, prewired plugs with cables) |
| Enclosure | Anti-corrosive polyamide, SS fasteners |
| Enclosure Protection | IP67 dust and watertight, UV protection |
| Flow Factor | Cv 470 (Cv = number of GPM of 60 °F water at 1 psi pressure drop) |
| Over-load Protection | Electronic over-torque with LED status light |
| Pipe Size | 3 inch |
| Pressure Rating | 29 inHg vacuum to 230 PSI |
| Shaft Seals | EPDM V-ring |
| Suitable Flanges | ANSI /ASME B16.5 Class150, B16.1 Class 125, EN1092 PN10, PN16, BS10 D, E, JIS B2239 10K, 16K |
| Valve Body | Ductile iron, 3-layer epoxy coated (seat facing acts as flange gasket) |
| Valve Position Confirmation | 2 x SPDT dry contact limit switches rated 250v/3A resistive load |
| Valve Temperature Range | 5 to 338 °F (-15 to +170 °C) |
| Voltage | 24 to 240 Volt AC/DC (1 ph, auto-voltage sensing) |
Digital Positioner System
-
5610E DPS-Digital Positioner System Kit 4-20mA - InstalledStock #: 561101EUsually Ships: Same DayPrice: $400.54 -
5610E DPS-Digital Positioner System Kit 0-10v - InstalledStock #: 561102EUsually Ships: Same DayPrice: $400.54
Failsafe Battery Kit
-
5610E BSR-NC Failsafe Battery Kit - InstalledStock #: 561104EUsually Ships: Same DayPrice: $422.76 -
5610E BSR-NO Failsafe Battery Kit - InstalledStock #: 561105EUsually Ships: Same DayPrice: $422.76
Connectors & Cables
-
-
Sub-Micro DIN Connector 1/2" Conduit ConnectionStock #: 588003Usually Ships: Same DayPrice: $14.64 -
-
Sub-Micro DIN Plug Connector with 16 foot CableStock #: 588007AUsually Ships: Same DayPrice: $28.32
-
Electric Actuator 486 in.lbs (55Nm), 24-240VStock #: 561055EUsually Ships: Same DayPrice: $596.16 -
