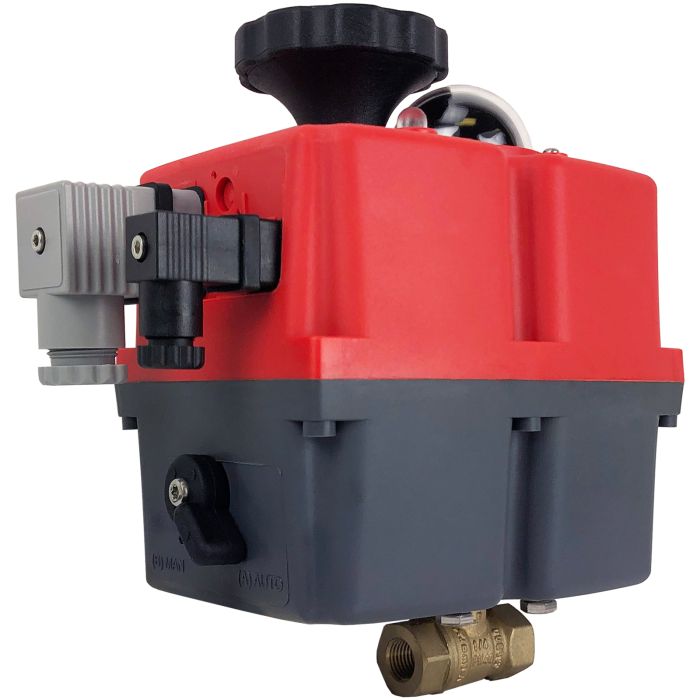

1/4" Electric Actuated Brass Ball Valve 24-240V

Valworx 568002E electric actuated lead free brass ball valve is used for on-off control of water, air, oil, and other media compatible with the materials of construction. Ideal where lead free and NSF construction are required for potable drinking water as well as other industrial applications. Standard unit is power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a self locking flat gear drive, rotates the ball. The motor is stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.

The ball valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation. Two limit switches are provided to confirm valve position. Manual override can be used to operate valve during setup or with loss of electrical power.

High temperature valve mounting kit available for extended temperature range or wall mounting applications.

Ball Valve Standard Features

Direct mount lead free brass valve

Full Port for unrestricted flow

316 stainless steel ball and stem

Energized PTFE ball seats for lower torque and extended cycle life

Leak free triple PTFE/Viton stem seal design

Certified per NSF372 and NSF61 for use with potable/drinking water

Electric Actuator Standard Features

LED light gives continuous actuator status indication

Multi-voltage capable with auto-voltage sensing

Electronic torque limiter - protects against valve jams

Anti-condensation heater

Manual override with visual valve position indicator

Electrical connections via external DIN plugs (included)

Two dry contact limit switches used to confirm open/closed valve position

IP67 weatherproof enclosure, CE marked

Options (see Accessories tab)
