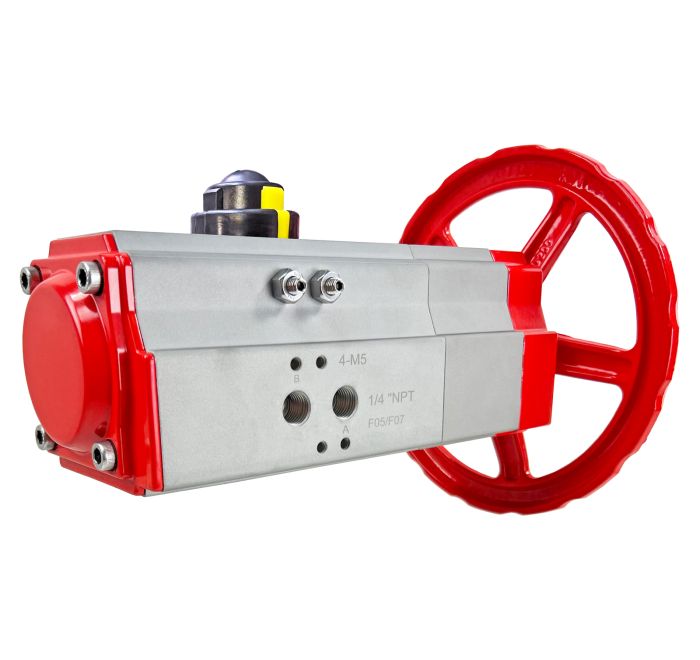

Pneumatic/Manual Combo Actuator SR83

Valworx 531183 Pneumatic/Manual combination actuators are used to operate quarter turn ball valves, butterfly valves, plug valves and dampers. Multi-function actuator operates pneumatically, manually, or stroke limited where the stroke can be set to limit close or limit open using the integrated handwheel.

Quick and easy to install with standard ISO5211 valve mounting pad and double square female output drive. Spring return actuators use air pilot pressure to open and springs to close. The pilot air is typically controlled by a 3-way type manual or solenoid valve.

An optional pilot solenoid valve can be mounted directly to the side of the actuator using the standard Namur interface saving time, space and plumbing. The solenoid valve when supplied with the required pilot air pressure will allow electrical operation of the actuator.

Note: minimum operating presure for spring return actuators is 6 bar (87psi)

Pneumatic/Manual Combo Actuator Standard Features

Integrated handwheel for manual operation

Rugged rack & pinion design

ISO5211 valve mounting pad

Highly visible valve position indicator

Dry or lubricated pilot air

Aluminum body with 30 micron hard anodizing

Polyester powder coated aluminum end covers

Namur mounting pad for direct mounted solenoid valves

VDI/VDE 3845 mounting for top mounted accessories

ATEX rated per 2014/34/EU

Options (see Accessories tab)
