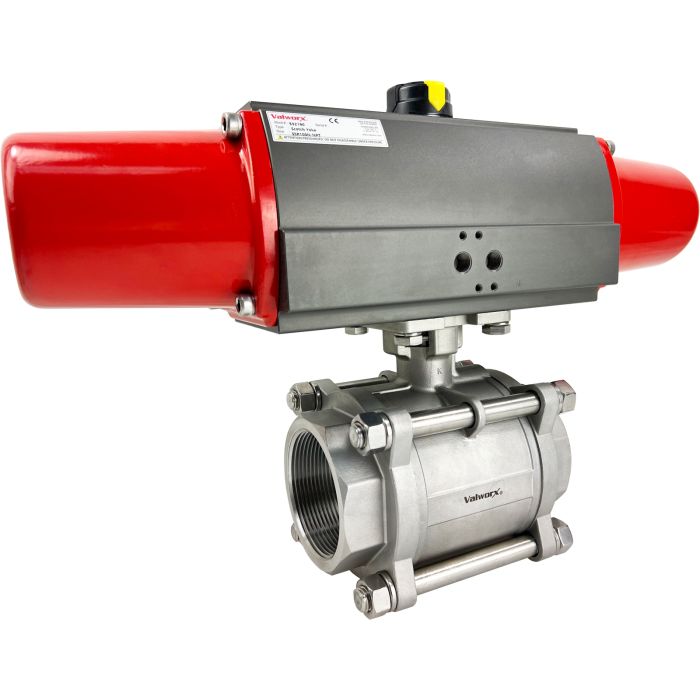

3" Air Actuated 3-pc Stainless Ball Valve - Spring Return Scotch Yoke
SKU
552524A
Series
5525
List Price: $2,304.74
Price:
$1,843.79
- Buy 3 for $1,659.41 each and save 10%
Valworx 552524A air actuated spring return stainless steel ball valves are typically used for on-off control of air, water, oil, and other media compatible with the materials of construction. Unique three piece investment cast bolted body design offers the advantage of a swing out body for easy inline maintenance. Spring return actuators use an air pressure signal (58- 87 PSI) to open and springs to close the valve. The valve will fail closed upon loss of air signal. High temperature valve mounting kit available for extended temperature range or wall mounting applications. Advantages of air actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path, reduced water hammer, and use in hazardous environments. Ball valve can be mounted in any orientation.
Ball Valve Standard Features800 PSI working pressure (see P/T chart) Direct mounting valve per ISO5211 Full port for unrestricted flow 316 stainless steel body, ball and stem Blow out proof stem RTFE ball seats extend cycle life Triple PTFE/Viton stem seal design, live loaded and adjustable
Pneumatic Actuator Standard FeaturesExtended cycle life (1 million cycles) Quarter turn scotch yoke design Weatherproof type IP66 & IP68 actuator Highly visible valve position indicator Factory lubricated for normal life Anodized aluminum body with epoxy-polyester coated end covers Namur & ISO mounting
Options (see Accessories tab)
Ball Valve Standard Features
Pneumatic Actuator Standard Features
Options (see Accessories tab)
| Actuator Seals | NBR |
|---|---|
| Actuator Temperature Range | -4 to 158 °F (-20 to +70 °C) |
| Air Connections | 1/4" NPT (plus NAMUR pad for solenoid valve) |
| Air Pilot Pressure | 58- 87 PSI (4- 6 bar) |
| Ball Seats | -4 to 366 °F (-20 to 185 °C) |
| Ball Stem | 316 Stainless Steel |
| Cycle Time | Approx. 1.0- 2.3 seconds per 90° rotation |
| Pilot Air Pressure (Max) | 120 PSI (8 Bar) |
| Pipe Size | 3" NPT female |
| Port Size | Full Port, Orifice 3.15 inches, Cv 493 |
| Pressure (Max) | 29 seconds per 90° rotation (no load) |
| Stem Seals | Cv 3584 (Cv = number of GPM of 60 °F water at 1 psi pressure drop) |
| Type | Air Actuated 3 Piece Ball Valve- Spring Return |
| Valve Body | 316 stainless steel CF8M |
| Valve Temperature Range | -4 to 158 °F (-20 to 70 °C) |
Direct Mount Solenoid Valves
-
-
-
ISO DIN Plug with 16ft Cable for Solenoid ValvesStock #: 588013Usually Ships: Same DayPrice: $31.92
Limit Switch
Digital Smart Positioner
High Temperature Mounting Kit
Spring Check Valve
-
Spring Return Air Actuator SR125- Scotch YokeStock #: 532196Usually Ships: Same DayPrice: $1,164.40 -
3" 3-Piece Stainless Ball Valve - Direct MountStock #: 551524CUsually Ships: Same DayPrice: $852.80
