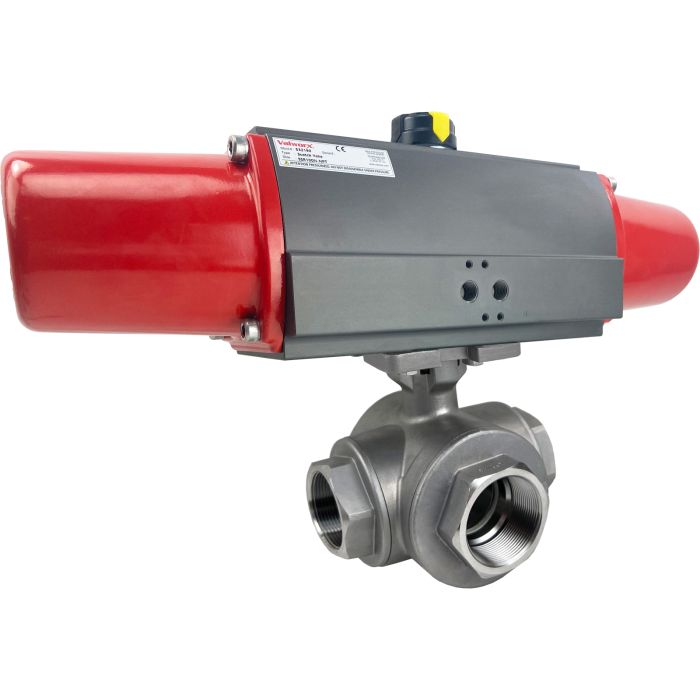

2" Air Actuated 3-Way SS T-Port Ball Valve, Spring Return Scotch Yoke

Valworx 544016A stainless steel full port three way ball valves are designed for use with water, air, oil, and other media compatible with the materials of construction. This diverter valve has a T-port flow pattern. There is no flow shutoff position with this type valve. Spring return actuators use an air pressure signal (58-87 PSI) to change the valve to position 2 and springs to return the valve to position 1. The valve will fail to position 1 upon loss of air signal (or electrical power, if energized using a pilot solenoid valve). High temperature valve mounting kit available for extended temperature range or wall mounting applications. Advantages of air actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path, reduced water hammer, and use in hazardous environments. Valve is tested per API 598, can be mounted in any orientation.

Ball Valve Standard Features

1000 PSI working pressure (see P/T chart)

Full port design

316 stainless steel body, ball and stem

Four ball seat design allows for full pressure at any port

RTFE ball seats for extend cycle life

Triple PTFE/Viton stem seal design, live loaded and adjustable

Valve direct mounts to actuator per ISO5211

Pneumatic Actuator Standard Features

Extended cycle life (1 million cycles)

Quarter turn Sctoch yoke design

Weatherproof type IP66 & IP68 actuator

Highly visible valve position indicator

Factory lubricated for normal life

Anodized aluminum body with epoxy-polyester covers

Namur & ISO mounting

Options (see Accessories tab)
