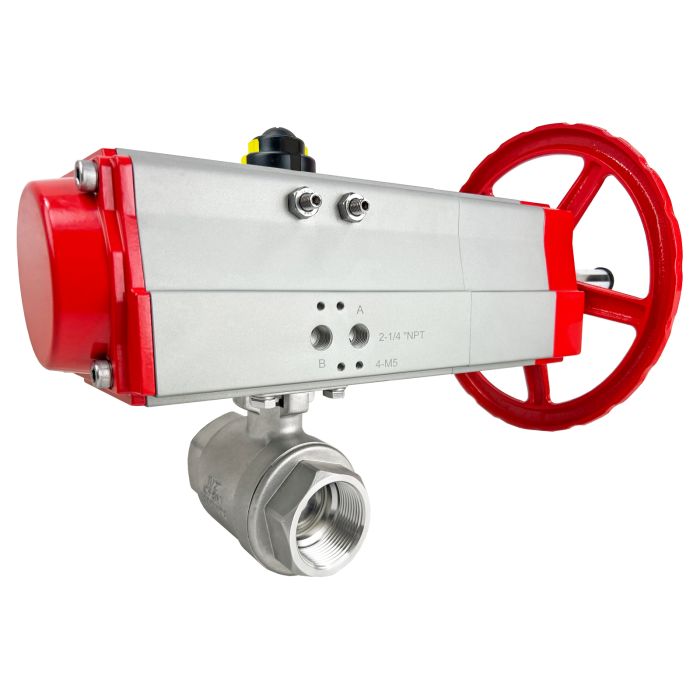

1-1/2" Pneumatic/Manual Stainless Ball Valve - Spring Return
SKU
531412
Series
5314
List Price: $1,220.00
Price:
$976.00
- Buy 3 for $878.40 each and save 10%
Valworx 531412 Pneumatic/Manual stainless ball valves are typically used for on-off control of air, water, oil, and other media compatible with the materials of construction. Spring return design uses an air pressure signal (80-120 PSI) to open and springs to close the valve. The de-clutch option can be used for manual operation or to set a limit stop for opening or closing. High temperature valve mounting kit available for extended temperature range or wall mounting applications. Advantages of pneumatic/manual stainless valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path, reduced water hammer, and use in hazardous environments.
Clocked mounting orientation is standard (actuator perpendicular to pipeline). In-line mounting option (actuator parallel to pipeline) available. Select as an option on the Accessories tab.
Ball Valve Standard Features1000 PSI working pressure (see P/T chart) Direct mounting valve per ISO5211 Full port for unrestricted flow 316 stainless steel body, ball and stem Blow out proof stem RTFE ball seats extend cycle life Triple PTFE/Viton stem seal design, live loaded and adjustable
Pneumatic/Manual Actuator Standard FeaturesIntegrated handwheel for manual operation Quarter turn rack & pinion design Highly visible valve position indicator Dry or lubricated pilot air Factory lubricated for normal life Anodized aluminum body with epoxy-polyester coated end covers Namur & ISO mounting ATEX approved
Options (see Accessories tab)
Clocked mounting orientation is standard (actuator perpendicular to pipeline). In-line mounting option (actuator parallel to pipeline) available. Select as an option on the Accessories tab.
Ball Valve Standard Features
Pneumatic/Manual Actuator Standard Features
Options (see Accessories tab)
