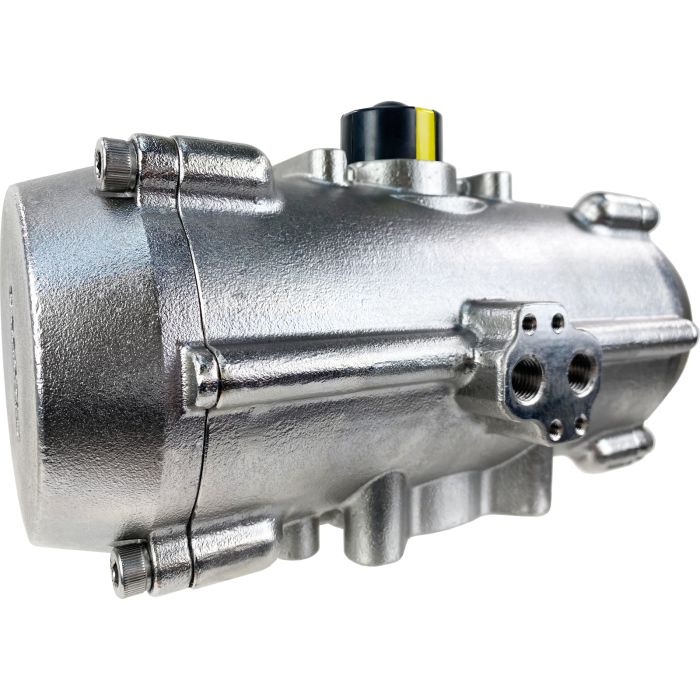

Stainless Steel Spring Return Air Actuator SR125

Valworx 576196 stainless steel rack and pinion air actuators are typically used to operate quarter turn ball valves and other quarter turn applications requiring high corrosion resistance and/or sanitation. Rugged IP66 construction is suitable for washdown applications. Quick and easy to install with standard ISO5211 valve mounting pad and double square female output drive. Spring return actuators use air pilot pressure to open and mechanical springs to close when the air is exhausted. The pilot air is typically controlled by a 3-way type manual or solenoid valve.

An optional pilot solenoid valve can be mounted directly to the side of the actuator using the standard Namur interface saving time, space and plumbing. The solenoid valve when supplied with the required pilot air pressure will allow electrical operation of the actuator.

Stainless Pneumatic Actuator Standard Features

Pre-lubricated and tested to minimum 1 million cycles

Rugged IP66 (NEMA4/4X) enclosure suitable for washdown

ISO5211 valve mounting pad

Multiple precompressed spring cartridges

Highly visible valve position indicator

Dry or lubricated pilot air

316 Stainless steel body with electro-polished externals

316 Stainless steel end covers, shaft and pistons

Namur mounting pad for direct mounted solenoid valves

VDI/VDE 3845 mounting for top mounted accessories

Options (see Accessories tab)
