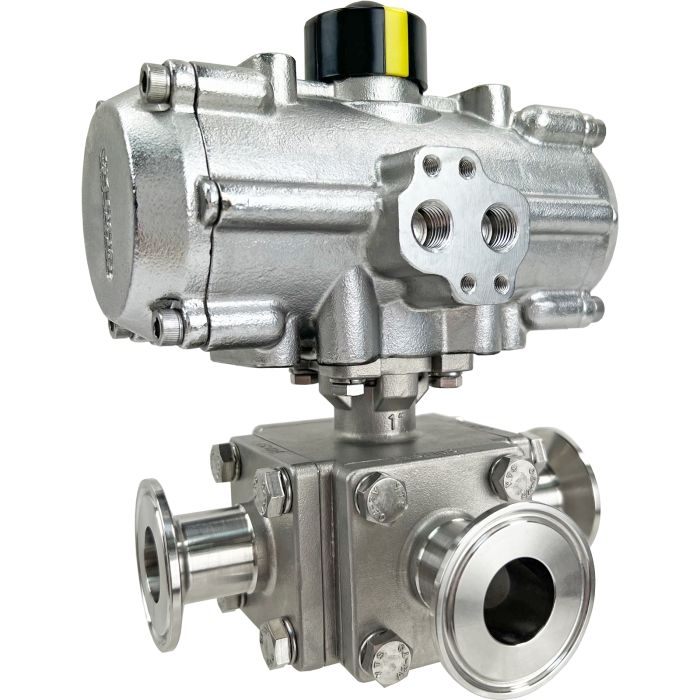

1" Sanitary Ball Valve, L-Port, Spring Return All Stainless, Tri-Clamp

Valworx 576302A air actuated all-stainless sanitary 3-way ball valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where sanitary construction is required. Both the valve and actuator are made of 316 stainless steel for superior corrosion resistance. These L port valves can be used as either a diverter valve or a selector valve. When using as a diverter valve, inlet flow to the center inlet port is diverted to either side outlet port one or side outlet port two. When using as a selector valve, there are two separate inlet ports (side ports) and one common outlet port (center port). Highly polished product contact area (8- 12 Ra finish) and Dyneon PTFE ball seats are standard. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations.

Ball Valve Standard Features

Full Port for Unrestricted Flow

8- 12 Ra finish on all internal surfaces

Dyneon PTFE ball seats and cavity fillers

All materials comply with FDA and USDA requirements

Triple PTFE/Viton Stem Seal Design, Live Loaded

Standard Tri-Clamp ends for sanitary connections

Actuator Ready ISO5211 Direct Mounting Pad

All valves are tested per MSS-SP82

Pneumatic Actuator Standard Features

316 Stainless steel body, pistons and pinion

IP66 enclosure rating suitable for washdown applications

Extended cycle life (1 million cycles)

Quarter turn rack & pinion design

Highly visible valve position indicator

Dry or lubricated pilot air

Factory lubricated for normal life

Namur & ISO mounting

Options (see Accessories tab)
