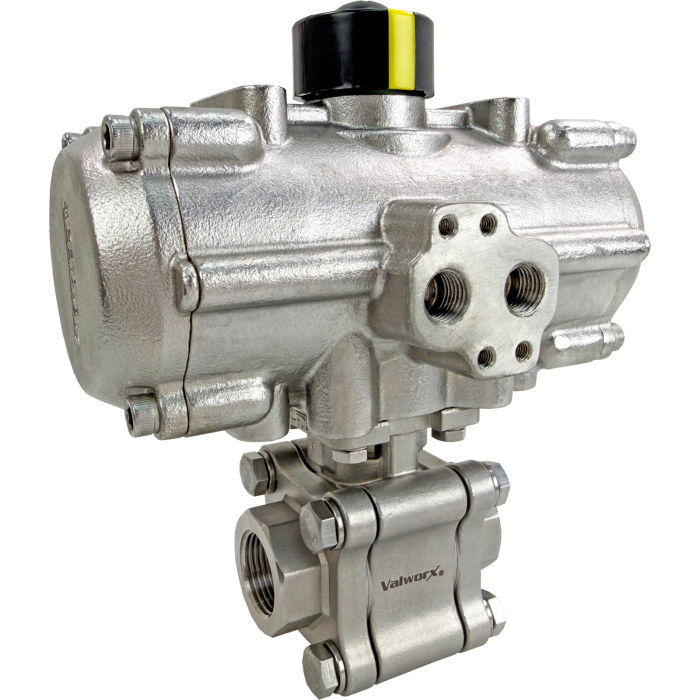

3/4" All Stainless High Pressure Ball Valve - Double Acting
Stock #
542506
Series
5425
List Price: $606.00
Price: $484.80
- Buy 3 for $436.32 each
Usually Ships: Same Day
Valworx 542806 air actuated double acting stainless steel ball valves are typically used for on-off control of air, water, oil, and other media compatible with the materials of construction. Fire safe approved per API 607. Unique three piece investment cast bolted body design offers the advantage of a swing out body for easy inline maintenance. Double acting actuators use an air pressure signal (58- 87 PSI) to open and close the valve.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Not suitable for potable water, oxygen or high purity applications.
Ball Valve Standard Features2000 PSI working pressure ( CWP-see P/T chart) Fire safe approved per API 607 Braided graphite stem seals 3-piece swing out design for easy maintenance Direct mounting valve per ISO5211 Full port for unrestricted flow 316 stainless steel body, ball and stem Blow out proof stem RTFE ball seats extend cycle life
Pneumatic Actuator Standard FeaturesExtended cycle life (1 million cycles) Quarter turn scotch yoke design Weatherproof type IP66 & IP68 actuator Highly visible valve position indicator Factory lubricated for normal life Anodized aluminum body with epoxy-polyester coated end covers Namur & ISO mounting
Options (see Accessories tab)
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Not suitable for potable water, oxygen or high purity applications.
Ball Valve Standard Features
Pneumatic Actuator Standard Features
Options (see Accessories tab)
| Type | All Stainless Air Actuated High Pressure Ball Valve- Double Acting |
|---|---|
| Cycle Time | Approx. 1/1 second open/close per 90° rotation |
| Pipe Size | 3/4" NPT female |
| Full Port Orifice Size (inches) | 0.79 |
| Cv | 44.6 |
| Pressure Rating | 2000 PSI |
| Valve Temperature Range | -4 to 392°F (-20 to 200°C) |
| Actuator Temperature Range | -4 to 176°F (-20 to 80°C) |
| Valve Body/Ball | 316 SS |
| Body/Ball Material | 316 Stainless Steel |
| Ball Seat Material | RTFE (reinforced Teflon) |
| Stem Seal Material | Braided Graphite/ FKM (Viton) |
| Enclosure Protection | IP66 & IP68 weatherproof |
| Pilot Air Pressure (PSI) | 80-120 |
| Air Consumption (SCI per 90° cycle) | 12.2 |
| Air Connections | 1/4" NPT (plus NAMUR pad for solenoid valve) |
| Actuator Seals | NBR |
| Max Fluid Velocity | 10 feet per second |
