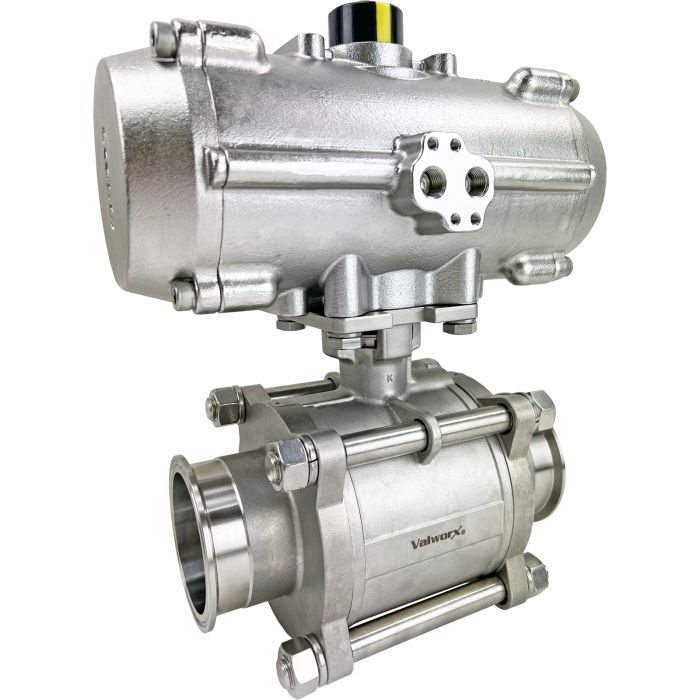

3" Sanitary Ball Valve, All Stainless Steel Double Acting, Tri-Clamp
SKU
570906A
Series
5709
List Price: $2,499.32
Price:
$1,999.46
- Buy 3 for $1,799.51 each and save 10%
Valworx 570906A air actuated stainless steel sanitary ball valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where sanitary construction is required, as well as for utility, process and corrosive environment applications where quick clamp applications are needed. Double acting actuators use an air pressure signal (80-120 PSI) to open and close the valve. Highly polished internals (8- 12 Ra finish). Virgin PTFE ball seats and cavity fillers are standard. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations.
Ball Valve Standard FeaturesFull Port for Unrestricted Flow 8- 12 Ra finish on all internal surfaces PTFE ball seats and cavity fillers All materials comply with FDA and USDA requirements Triple PTFE Stem Seal Design, Live Loaded Standard Tri-Clamp ends for sanitary connections All valves are tested per API 598 Suitable for vacuum up to 29inHg
Pneumatic Actuator Standard Features316 Stainless steel body, pistons and pinion IP66 enclosure rating suitable for washdown applications Extended cycle life (1 million cycles) Quarter turn rack & pinion design Highly visible valve position indicator Dry or lubricated pilot air Factory lubricated for normal life Namur & ISO mounting
Options (see Accessories tab)
Ball Valve Standard Features
Pneumatic Actuator Standard Features
Options (see Accessories tab)
| Actuator Temperature Range | -4 to 176°F (-20 to 80°C) |
|---|---|
| Air Pilot Pressure | 80-120 PSI |
| Ball Seats | Dyneon PTFE |
| Cavity Filler | Dyneon PTFE, encapsulated |
| Cycle Time | Approx. 3 seconds per 90° rotation |
| Internal Finish | 8- 12 Ra |
| Pipe Size ~ Tri-Clamp | 3" ~ 3" |
| Port Size | Full port, 2.9 inch orifice, Cv 780.0 |
| Pressure (Max) | 1000 PSI WOG |
| Stem Seals | PTFE/ Viton, live loaded |
| Type | All Stainless Air Actuated Sanitary Ball Valve- Double Acting |
| Valve Bolts/Nuts | ASTM 304 stainless steel |
| Valve Body/Ball | ASTM 316 stainless steel |
| Valve Stem | ASTM 316 stainless steel |
| Valve Temperature Range | -4 to 356°F (-20 to 180°C) |
-
