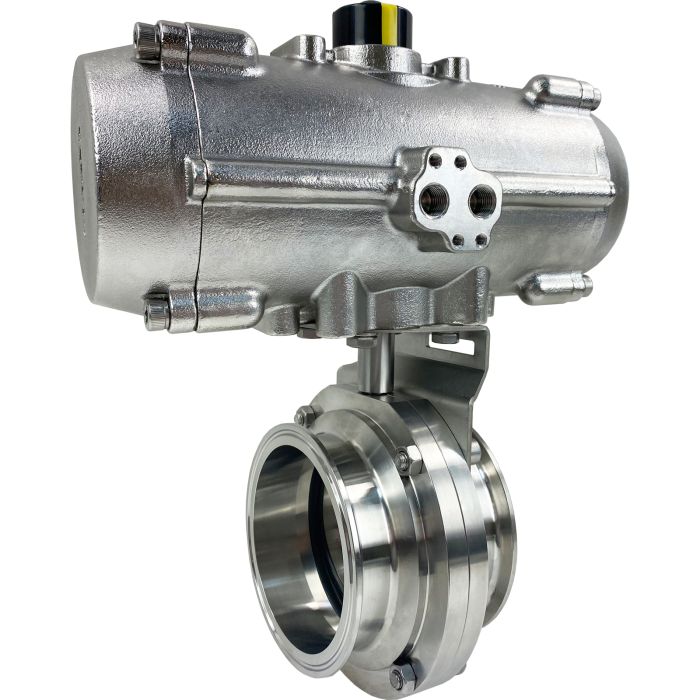

4" Sanitary Butterfly Valve, All Stainless Steel Double Acting, Tri-Clamp
Stock #
574607
Series
5746
List Price: $1,338.01
Price: $1,070.41
- Buy 3 for $963.37 each
Usually Ships: Same Day
Valworx 574607 air actuated all-stainless sanitary butterfly valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where sanitary construction is required, as well as for utility, process and corrosive environment applications where quick clamp applications are needed. Double acting actuators use an air pressure signal (80-120 PSI) to open and to close the valve.
Butterfly Valve Standard FeaturesForged valve bodies are machined and chamfered in a single set-up for precise fit Single piece disc/stem with disc polished to mirror finish 32 Ra finish on all wetted surfaces EPDM seat materials meet FDA CFR 177.2600 All materials comply with FDA and USDA requirements Standard Tri-Clamp ends for sanitary connections Suitable for vacuum up to 29.5inHg
Pneumatic Actuator Standard Features316 Stainless steel body, pistons and pinion IP66 enclosure rating suitable for washdown applications Extended cycle life (1 million cycles) Quarter turn rack & pinion design Highly visible valve position indicator Dry or lubricated pilot air Factory lubricated for normal life Namur & ISO mounting
Options (see Accessories tab)
Butterfly Valve Standard Features
Pneumatic Actuator Standard Features
Options (see Accessories tab)
| Type | All Stainless Air Actuated Sanitary Butterfly Valve- Double Acting |
|---|---|
| Cycle Time | Approx. 1/1 second open/close per 90° rotation |
| Pipe Size ~ Tri-Clamp (inches) | 4" ~ 4" |
| Full Port Orifice Size (inches) | 3.84 |
| Cv | 800 |
| Shell Pressure | 140 PSI WOG |
| Valve Temperature Range | -67 to 302°F (-55 to 150°C) |
| Actuator Temperature Range | -4 to 176°F (-20 to 80°C) |
| Valve Body-Specs | 316 L Stainless Steel |
| Valve Bolts/Nuts | 304 Stainless Steel |
| Internal Finish | 32 Ra |
| Disc/Stem | 316L Stainless Steel |
| Disc Seat/Liner | EPDM |
| Enclosure Protection | IP66 weatherproof/washdown |
| Pilot Air Pressure (PSI) | 80-120 |
| Air Consumption (SCI per 90° cycle) | 54.9 |
| Bushings | Polypropylene |
