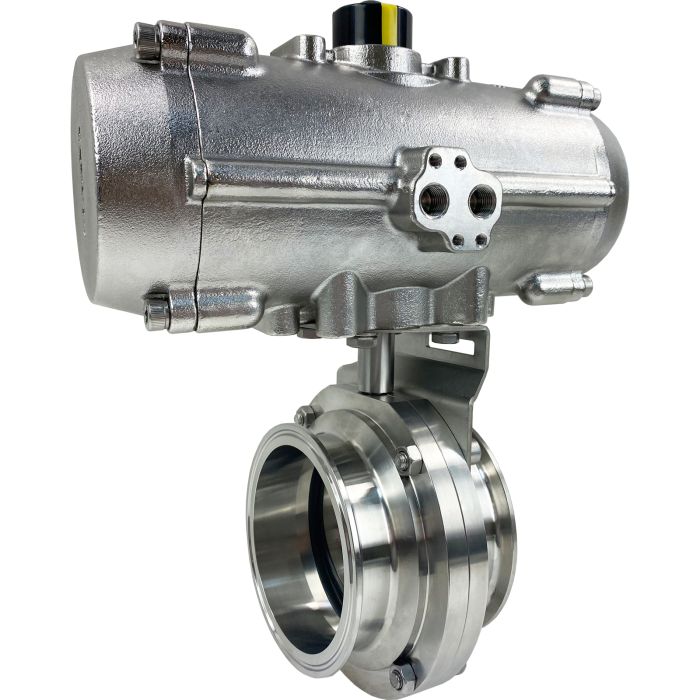

4" Sanitary Butterfly Valve, All Stainless Steel Spring Return, Tri-Clamp
SKU
574707
Series
5747
List Price: $1,384.02
Price:
$1,107.22
- Buy 3 for $996.49 each and save 10%
Valworx 574707 air actuated all-stainless sanitary butterfly valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where sanitary construction is required, as well as for utility, process and corrosive environment applications where quick clamp applications are needed. Spring return actuators use an air pressure signal (80-120 PSI) to open and springs to close the valve.
Butterfly Valve Standard FeaturesForged valve bodies are machined and chamfered in a single set-up for precise fit Single piece disc/stem with disc polished to mirror finish 32 Ra finish on all wetted surfaces EPDM seat materials meet FDA CFR 177.2600 All materials comply with FDA and USDA requirements Standard Tri-Clamp ends for sanitary connections Suitable for vacuum up to 29.5inHg
Pneumatic Actuator Standard Features316 Stainless steel body, pistons and pinion IP66 enclosure rating suitable for washdown applications Extended cycle life (1 million cycles) Quarter turn rack & pinion design Highly visible valve position indicator Dry or lubricated pilot air Factory lubricated for normal life Namur & ISO mounting
Options (see Accessories tab)
Butterfly Valve Standard Features
Pneumatic Actuator Standard Features
Options (see Accessories tab)
| Actuator Temperature Range | -4 to 176 °F (-20 to 80 °C) |
|---|---|
| Air Pilot Pressure | 80-120 PSI |
| Bushings | Polypropylene |
| Cycle Time | Approx. 1 second per 90° rotation |
| Disc/Stem | ASTM 316L stainless steel |
| Internal Finish | 32 Ra |
| Pipe Size ~ Tri-Clamp | 4" ~ 4" |
| Port Size | Full port, 3.8 inch orifice, Cv 800 |
| Pressure (Max) | 140 PSI |
| Valve Body | ASTM 316L stainless steel |
| Valve Bolts/Nuts | ASTM 304 stainless steel |
| Valve Seat | EPDM |
| Valve Temperature Range | -67 to 302 °F (-55 to 150 °C) |
