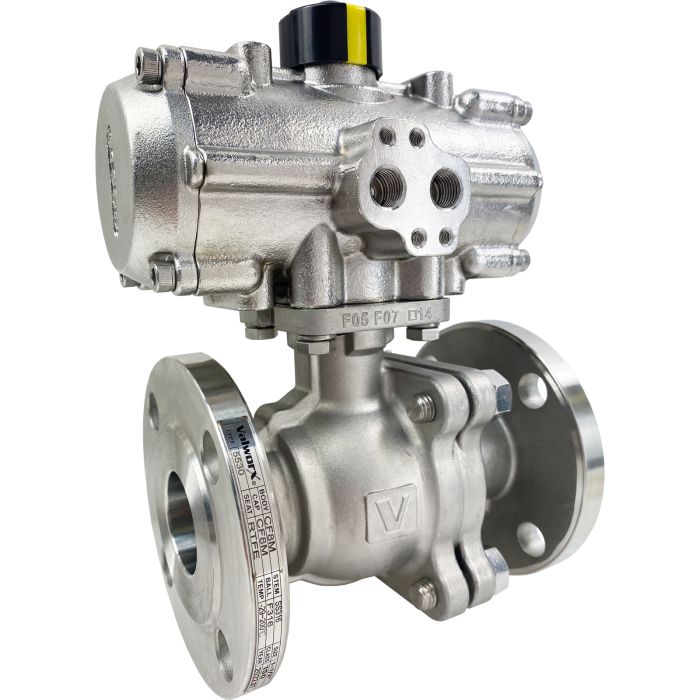

1 1/2" All Stainless 150# Flanged Ball Valve- Double Acting
SKU
535112
Series
5351
List Price: $1,061.45
Price:
$849.16
- Buy 3 for $764.24 each and save 10%
Valworx 535112 2-piece 150# flanged stainless steel ball valves with stainless steel rack & pinion actuator for on-off control of oil & gas, water, air and other media compatible with the materials of construction. Dual-certified fire-safe/low emission valve made of 316 stainless steel mounts between standard ANSI 150 pound pipe flanges. Double acting stainless steel actuators use an air pressure signal (80-120 PSI) to open and close the valve. All-stainless construction for superior corrosion resistance.
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard Features275 PSI working pressure (see P/T chart) Direct mounting valve per ISO5211 Full port for unrestricted flow 316 stainless steel body, ball and stem Blow out proof stem RTFE ball seats extend cycle life Braided graphite/Viton stem seal design, live loaded and adjustable
Pneumatic Actuator Standard Features316 Stainless steel body, pistons and pinion IP66 enclosure rating suitable for washdown applications Extended cycle life (1 million cycles) Quarter turn rack & pinion design Highly visible valve position indicator Dry or lubricated pilot air Factory lubricated for normal life Namur & ISO mounting
Options (see Accessories tab)
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard Features
Pneumatic Actuator Standard Features
Options (see Accessories tab)
| Actuator Body/Pistons/Pinion | 316 Stainless Steel |
|---|---|
| Actuator Temperature Range | -4 to 176 °F (-20 to 80 °C) |
| Air Pilot Pressure | 80-120 PSI |
| Ball | 316 Stainless Steel |
| Ball Seats | RTFE (reinforced Teflon) |
| Cycle Time | Approx. 1 second per 90° rotation |
| Enclosure Rating | Type 4X (IP66) weatherproof |
| Fire Safe | API 607 |
| Flange Dimensions | ANSI B16.5 Class 150 |
| Flange Face to Face | ANSI B16.10 Class 150 |
| Low Emission | API 641 |
| Max Fluid Velocity | 10 feet per second |
| Pipe Size | 1 1/2" ANSI 150# flanged |
| Pipeline Use | API 608 |
| Port Size | Full Port, Orifice 1.50 inches, Cv 125 |
| Pressure (Max) | 275 PSI (see P/T chart), 21 PSI steam with kit, vacuum service to 29" Hg |
| Stem Seals | Braided Graphite/ FKM (Viton) |
| Stem Packing | API 622 |
| Type | 2-Way Air Actuated, All Stainless Double Acting |
| Valve Body | 316 Stainless Steel |
| Valve Temperature Range | -4 to +392 °F (-20 to +200 °C) |
-
